NETGEAR 8-Port PoE Gigabit Ethernet Smart Switch (GS110TP) - GS110TP-300NAS
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Description
Description

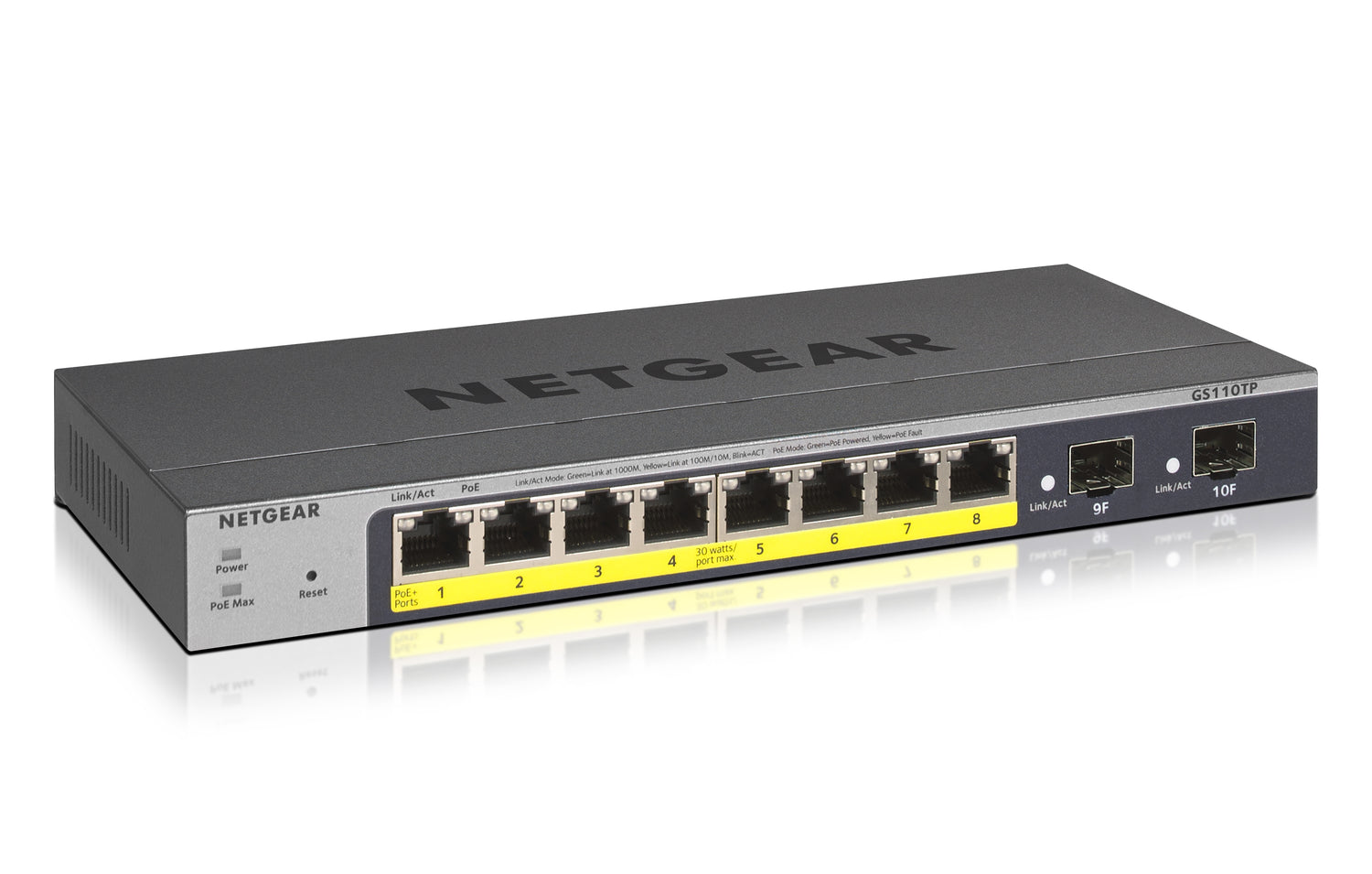

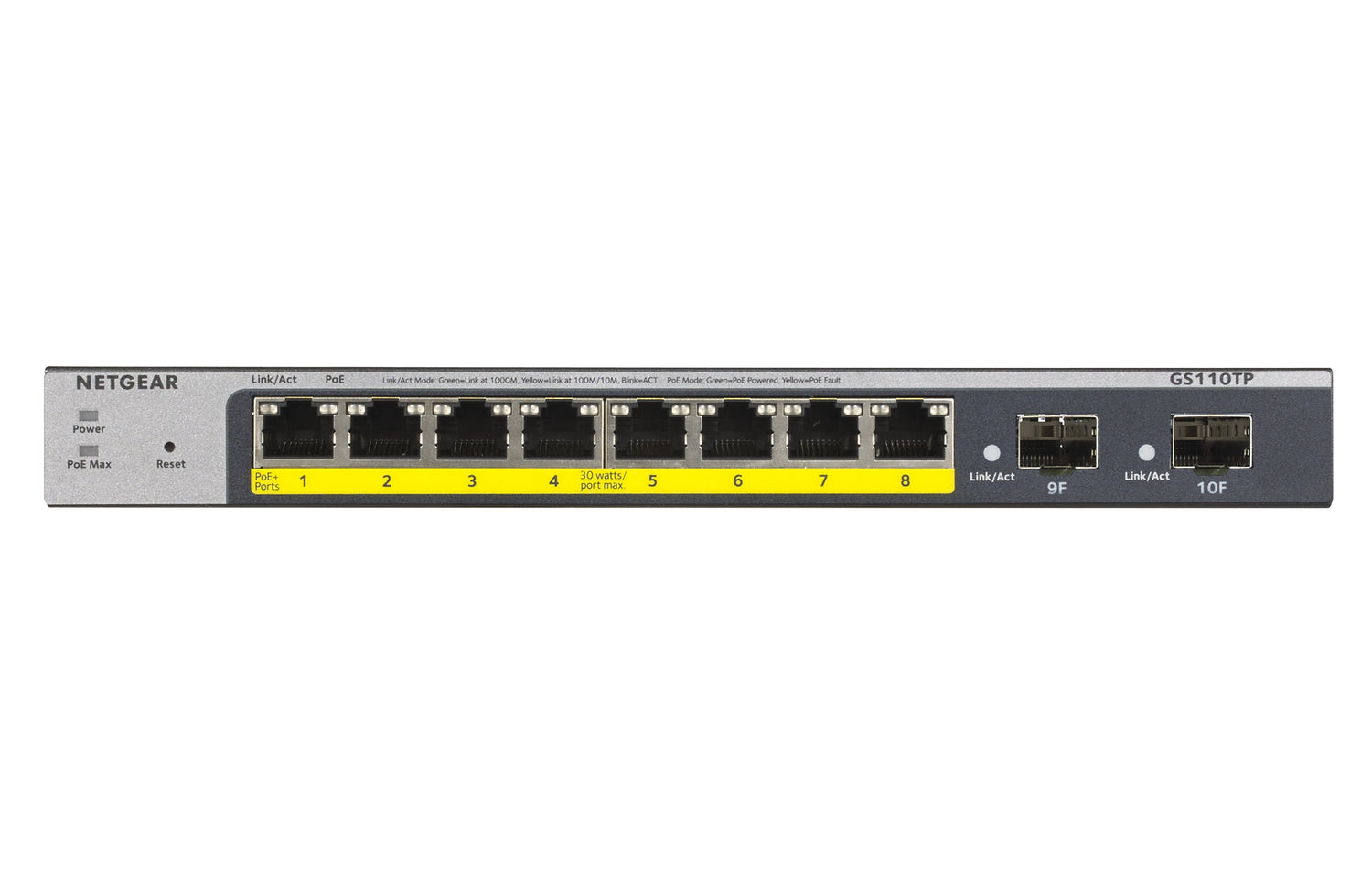

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.
- Managed L2/L3/L4 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries
- Access Control List (ACL)
- Power supply included Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| ARP inspection | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Networking standards | IEEE 802.3ab,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring | Y |
| Full duplex | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| MAC address auto-aging supported | Y |
| Number of VLANs | 64 |
| MAC address table | 8000 |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Packet buffer memory | 0.5 |
| DHCP features | DHCP client |
| Access Control List (ACL) | Y |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Y |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Y |
| Multicast support | Y |
| IPv4 multicast entries | 32 |
| Number of multicast groups filtered | 256 |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Product colour | Grey |
| LED indicators | Activity,Link,PoE,Power,Speed |
| Processor frequency | 500 |
| Memory type | RAM |
| Internal memory | 128 |
| Flash memory | 32 |
| Mean time between failures (MTBF) | 1200041 |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| DC input voltage | 54 |
| Input current | 1.25 |
| Power consumption (max) | 15.1 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 55 |
| Total Power over Ethernet (PoE) budget | 69.5 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 3000 |
| Heat dissipation | 237.38 |
| Width | 236 |
| Depth | 101 |
| Height | 27 |
| Weight | 610 |
| Manual | Y |
| Package type | Box |
| Package width | 161 |
| Package depth | 267 |
| Package height | 86 |
| Package weight | 1230 |
| Master (outer) case width | 274 |
| Master (outer) case length | 350 |
| Master (outer) case height | 309 |
| Master (outer) case gross weight | 8140 |
| Products per master (outer) case | 6 |
