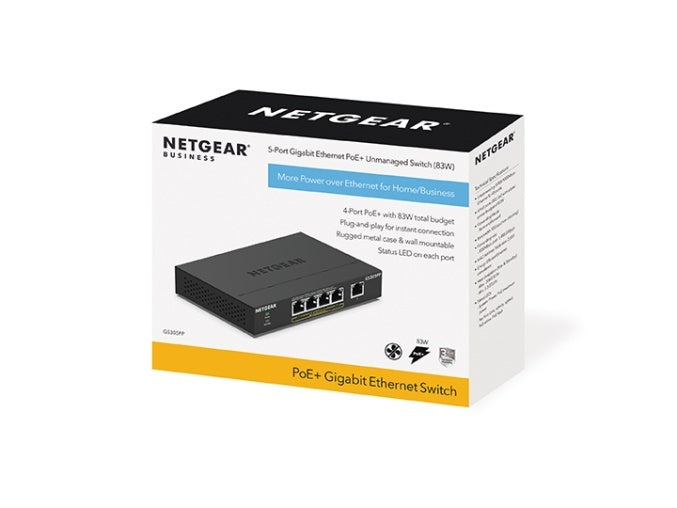

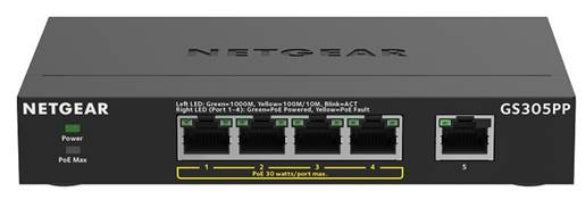

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black - GS305PP-300NAS

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

• Auto-MDI/MDIX eliminates the need for crossover cables
• LED indicators for ease of use
• Energy-efficient technology for power savings
• Fanless design for silent operation
• Auto-negotiation for automatic connection at the highest common speed between switch and an end device
• Non-blocking switching architecture for maximum throughput at wire speed
• 802.1p QoS for traffic/frame prioritization
• Plug-and-play; no setup required
• Durable and rugged metal case
• Desktop or wall-mountable; GS324 is also rack-mountable (rack-mount kit included)
• Ideal for small office and home networks
• Standards-based technology ensures interoperability with any standardsbased devices in the existing network
• Power up to 4 PoE-capable devices (GS305P/GS305PP and GS308P only)
• 802.3af Power Over Ethernet (PoE) for IP cameras, VoIP/Internet-based phones, wireless access points (GS308P only)

Switch type	Unmanaged
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Cable length detection	Y
MAC address table	2000
Switching capacity	10
Latency (1 Gbps)	2.4
Static route	Y
Jumbo frames support	Y
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1448000
Packet buffer memory	128
Rack mounting	N
Product colour	Black
Housing material	Metal
Reset button	Y
LED indicators	Activity,Link,PoE,Power
Wall mountable	Y
DC input voltage	54
Input current	1.66
Power consumption (typical)	2.89
Power consumption (max)	88.89
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	83
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 95
Heat dissipation	304
Width	158
Depth	101
Height	29
Weight	410
Manual	Y
Package width	215
Package depth	269
Package height	73
Package weight	1270
Shipping (inner) case height	306
Shipping (inner) case width	469
Shipping (inner) case length	237
Shipping (inner) case net weight	8340
Products per shipping (inner) case	6
Master (outer) cases per pallet layer	10
Layers per pallet (air)	4
Layers per pallet (sea)	6
Master (outer) case width	237
Master (outer) case length	469
Master (outer) case height	306
Harmonized System (HS) code	85176990
Master (outer) case gross weight	8310
Products per master (outer) case	6
