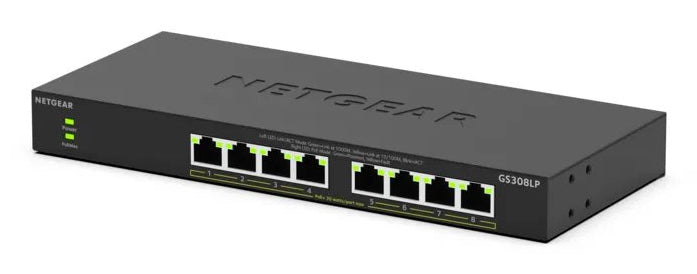

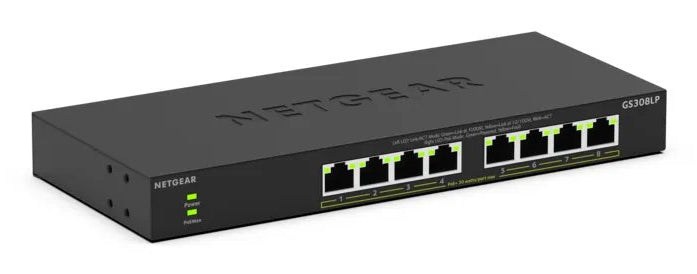

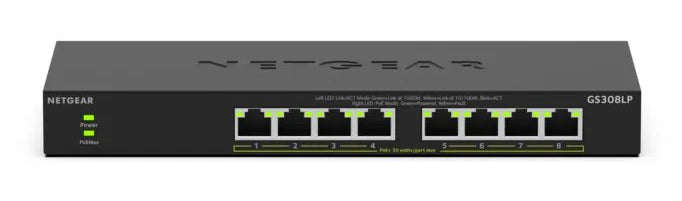

NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black - GS308LP-100NAS

PLUG-AND-PLAY
Simple set up with no software to install or configuration needed

NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed

FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

FLEX PoE
Easily increase you power budget on this switch to meet your changing power needs.

• Unmanaged
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 8
• Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
• MAC address table: 4000 entries Switching capacity: 16 Gbit/s
• Desktop Rack mounting
• DC Power supply included Power over Ethernet (PoE)

Switch type	Unmanaged
Quality of Service (QoS) support	Y
Traffic classification	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.3az,IEEE 802.1p,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Cable types supported	Cat5e
Full duplex	Y
Half duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Ethernet LAN data rates	10,100,1000
Auto-sensing	Y
Auto-negotiation	Y
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
MAC address table	4000
Switching capacity	16
Throughput	16
Forwarding rate	1.488
Latency (1 Gbps)	2.6
Number of queues	8
Jumbo frames support	Y
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1488000
Packet buffer memory	0.192
Queue scheduling algorithms	Weighted Round Robin (WRR)
MAC address entries	Dynamic MAC address entries
Rack mounting	Y
Stackable	N
Form factor	Desktop
Product colour	Black
Housing material	Metal
LED indicators	Y
Wall mountable	Y
Fanless	Y
Mean time between failures (MTBF)	2752476
Power source	DC
Power supply included	Y
Number of power supply units	1
DC input voltage	54
Input current	1.25
Input voltage	54
Power consumption (max)	67.5
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	60
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 90
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Heat dissipation	230.85
Width	236
Depth	102
Height	27
Weight	600
Compliance certificates	CE,Federal Communications Commission (FCC),Industry Canada (IC),RCM,VCCI,KC,CB,Low Voltage Directive (LVD)
