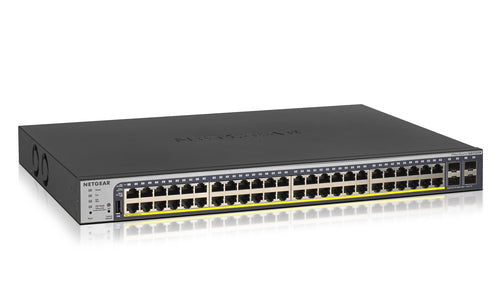

NETGEAR GS752TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black - GS752TP-300NAS

All ports PoE+ with up to 760W PoE budget – Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA

• Managed L2/L3/L4 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 48
• MAC address table: 16000 entries Switching capacity: 104 Gbit/s
• 100 Access Control List (ACL)
• 1U Rack mounting
• PoE Power over Ethernet (PoE)

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
USB 2.0 ports quantity	1
Networking standards	IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3,IEEE 802.1x
10G support	N
Port mirroring	Y
Full duplex	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Spanning tree protocol	Y
Auto-sensing	Y
VLAN support	Y
Number of VLANs	256
MAC address table	16000
Switching capacity	104
Store-and-forward	Y
Latency (1 Gbps)	3.35
Static route	Y
Packet buffer memory	1.5
DHCP features	DHCP server,DHCP snooping
Access Control List (ACL)	Y
Access Control List (ACL) rules	100
IGMP snooping	Y
MAC address filtering	Y
Multicast support	Y
Multicast MAC address table	512
Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Number of fans	2
Built-in processor	Y
Processor model	ARM Cortex-A55
Processor frequency	800
Internal memory	128
Flash memory	32
Noise level	36.6
Power source	PoE
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	380
Operating temperature (T-T)	0 - 55
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Heat dissipation	1474.02
Width	440
Depth	310
Height	42.2
Weight	4930
Certification	CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA
