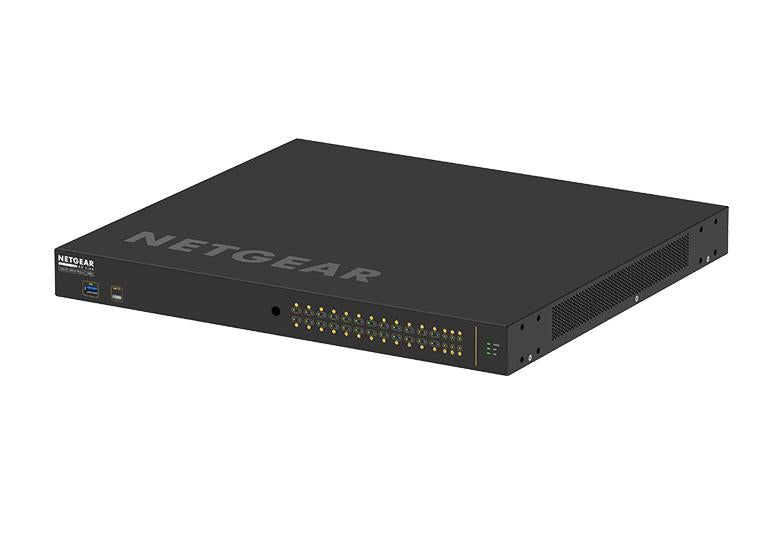

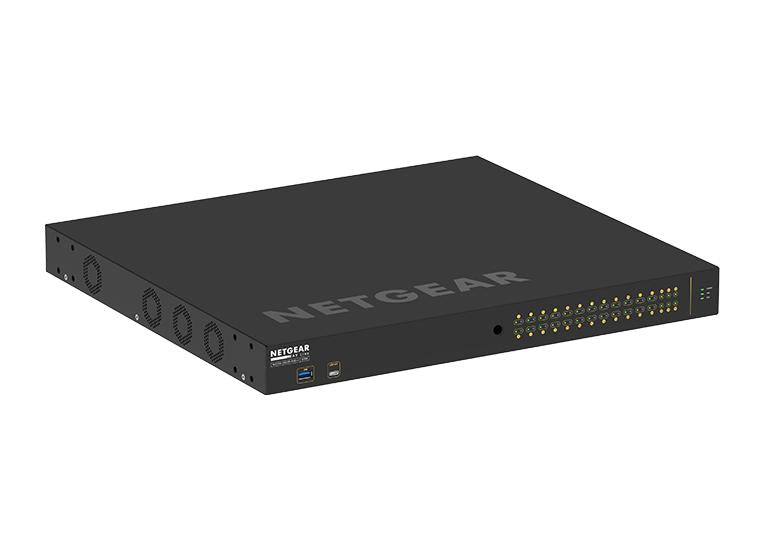

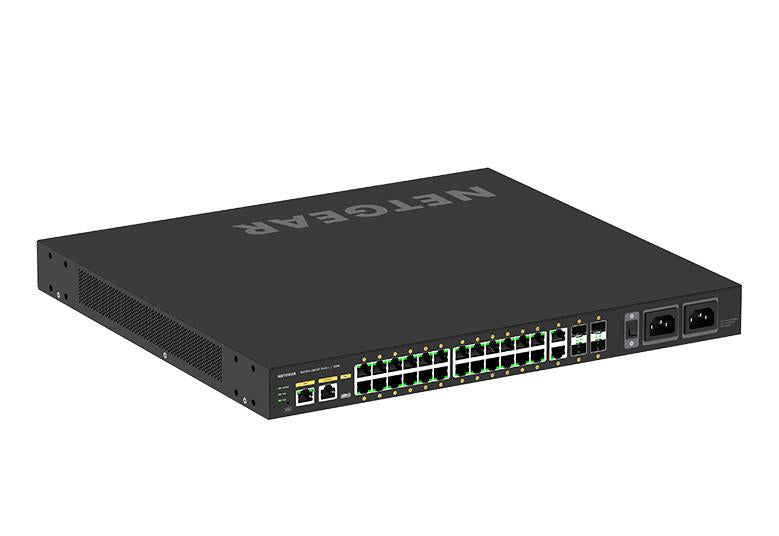

NETGEAR GSM4230UP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black - GSM4230UP-100NAS

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

• Managed L2/L3/L4 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/USB Type-C
• MAC address table: 16000 entries Switching capacity: 60 Gbit/s
• 1U Rack mounting
• PoE Power over Ethernet (PoE)

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Console port	RJ-45/USB Type-C
Networking standards	IEEE 802.1Qav,IEEE 802.1ak,IEEE 802.1as,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt
10G support	N
VLAN support	Y
Virtual LAN features	Private VLAN
Number of VLANs	4000
MAC address table	16000
Switching capacity	60
Throughput	44.64
Latency (1 Gbps)	2.15
Jumbo frames support	Y
Jumbo frames	12000
Packet buffer memory	16
DHCP features	DHCP relay,DHCP server,DHCPv6 server
IGMP snooping	Y
Security algorithms	SNMP
Multicast support	Y
Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Power source	PoE
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	1440
Width	440
Depth	400
Height	43.2
Weight	6750
User guide	Y
Rack mount kit	Y
