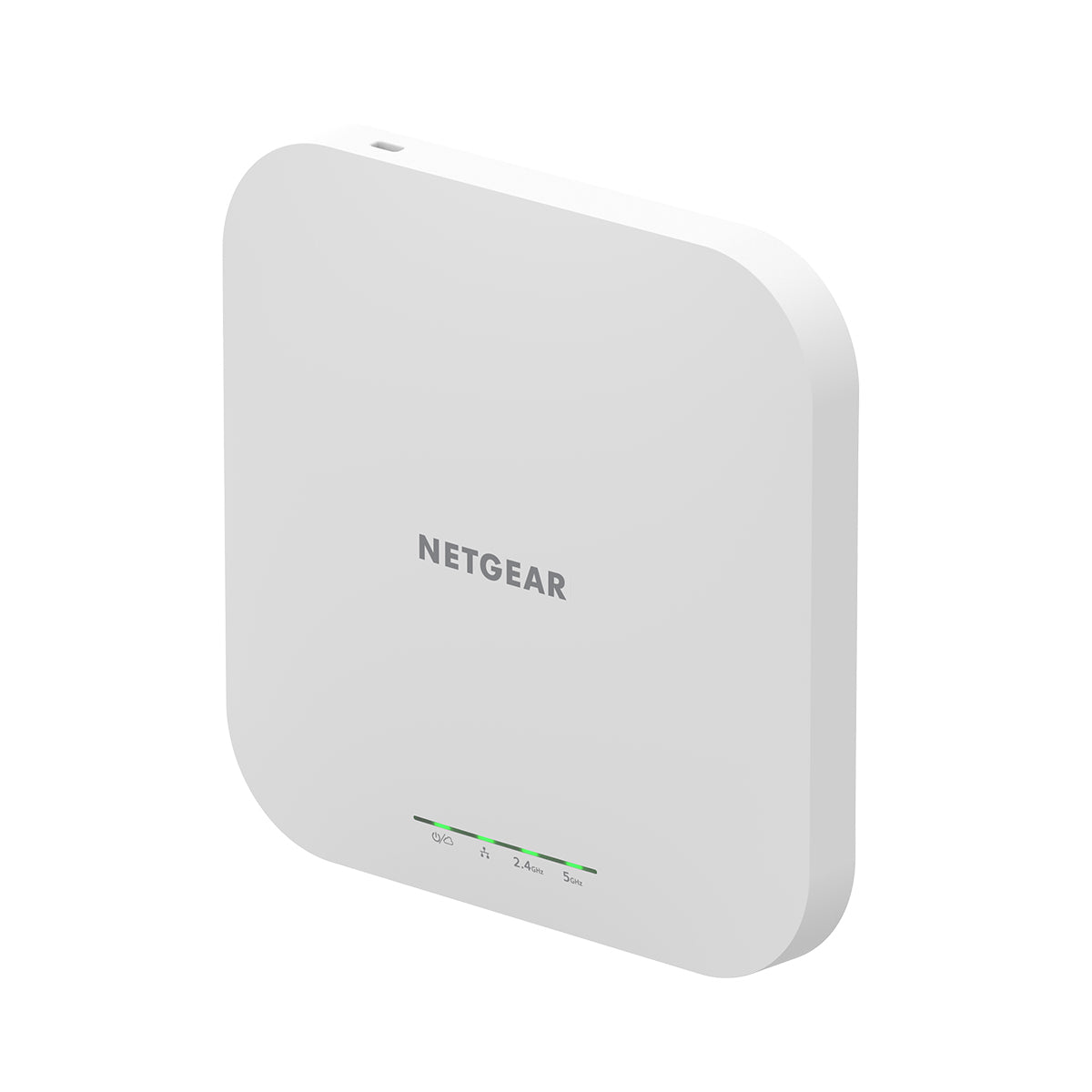

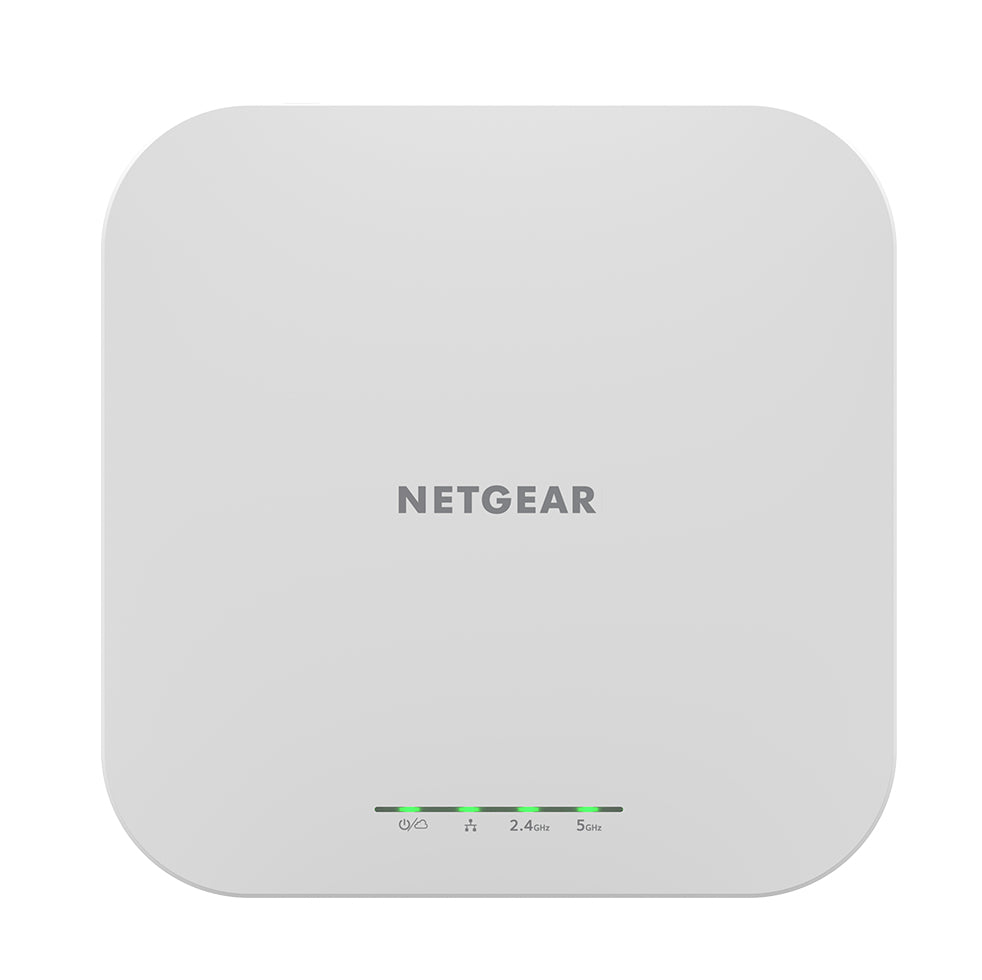

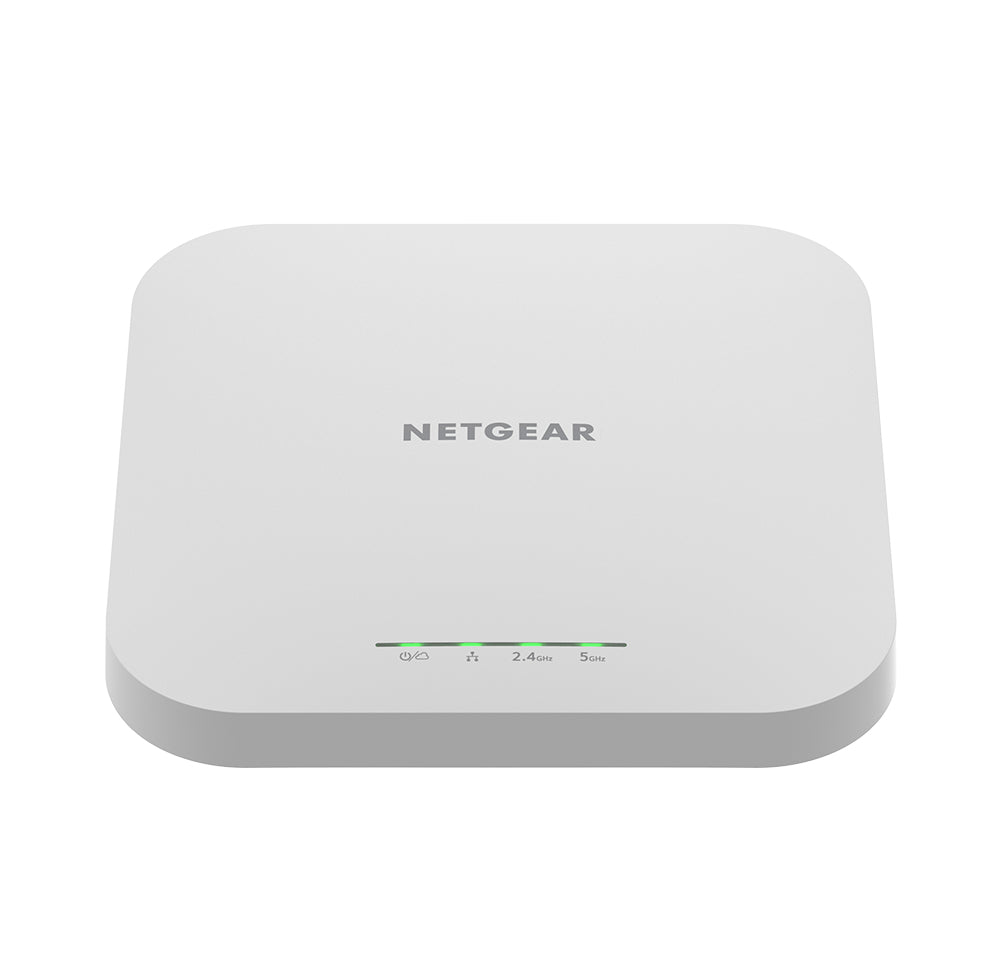

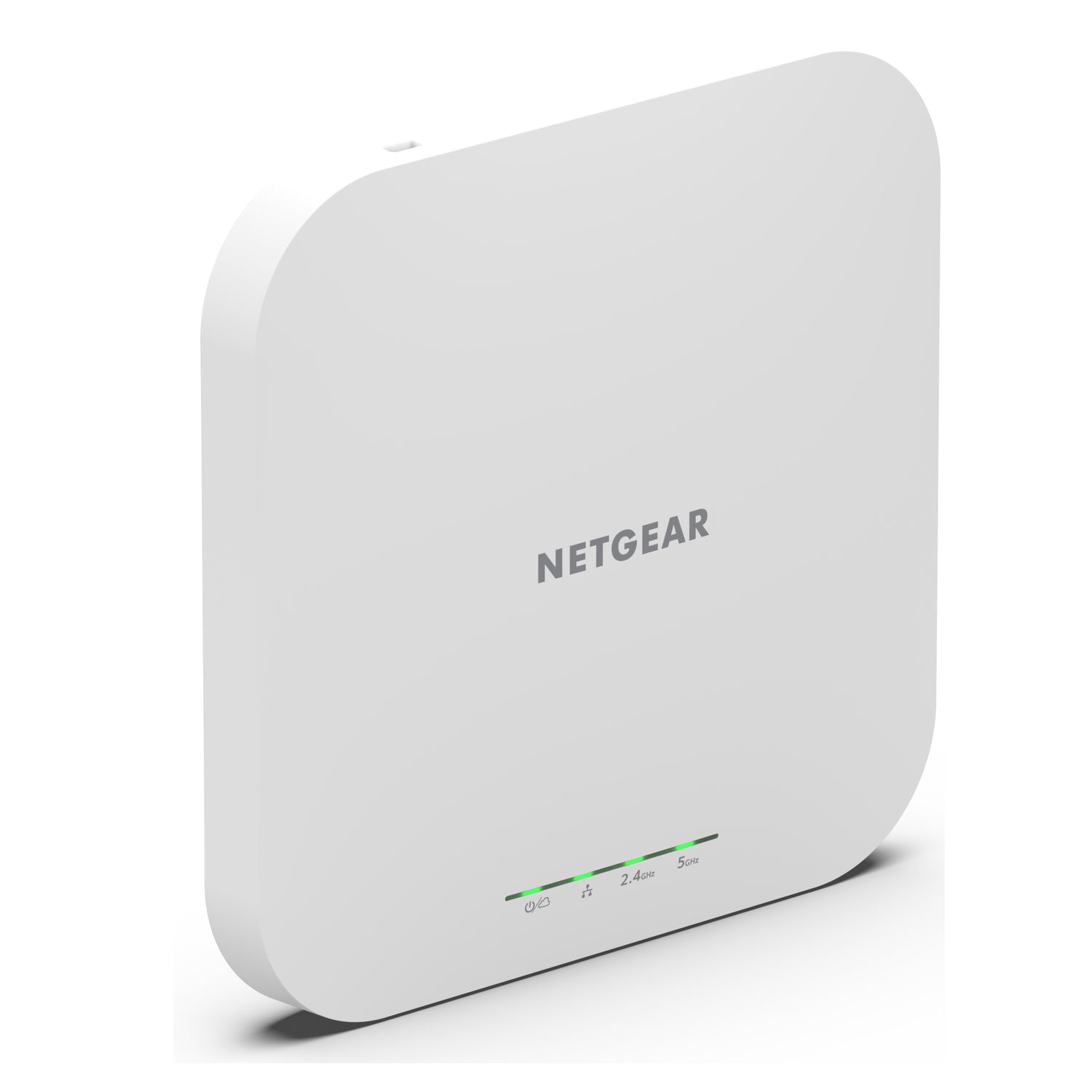

NETGEAR Insight Cloud Managed WiFi 6 AX1800 Dual Band Access Point (WAX610) 1800 Mbit/s White Power over Ethernet (PoE) - WAX610-100NAS

Equipped with the latest and fastest WiFi 6 (802.11 AX) technology, WAX610 is a wireless access point built to provide your small and medium business with next-level coverage and connection capacity for a high-performance business-grade WiFi experience, today and tomorrow. WAX610 empowers businesses to provide up to 40% higher throughput, larger device connection capacity, more network reliability and resiliency, and greatly enhanced security features, with a SMB IT budget and ease-of-use requirements. WAX610 is compatible with all existing WiFi 6 devices, together with current WiFi 5 and below Access Points and end-users devices, making it the best investment today for years to come.

The WAX610 is managed by NETGEAR Insight, for a fully centralized Cloud real-time remote monitoring, with no need for extra management hardware. WAX610 also comes with an intuitive local management GUI as one of the choices. The WAX610 features 2x2 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 1.8 Gbps, superior WiFi roaming, automatic channel and power management, airtime fairness, beamforming, OFDMA, 1024-QAM, and comes with one Power-over-Ethernet (PoE) 2.5Gb / 1Gb /100Mb LAN port.

Package Contents

- WAX610 Insight Managed Wireless Access Point
- Wall/ceiling mount kit
- Installation guide

• 2.4 GHz 600 Mbit/s
• 5 GHz 1200 Mbit/s
• Maximum data transfer rate: 1800 Mbit/s
• IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
• EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3
• Power over Ethernet (PoE)
• Internal

2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	1800
Maximum data transfer rate (2.4 GHz)	600
Maximum data transfer rate (5 GHz)	1200
Ethernet LAN data rates	10,100,1000,2500
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Number of users	250
Auto MDI/MDI-X	Y
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDM,OFDMA
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Security algorithms	EAP-PEAP,EAP-TLS,EAP-TTLS,PEAP,SSH,SSL/TLS,WPA,WPA2,WPA2-Enterprise,WPA3
MAC address filtering	Y
Service Set Identifier (SSID) features	Multiple SSIDs,SSID broadcast,SSID broadcast on/off
Number of SSID supported	8
Auto Wireless Distribution System (WDS)	Y
Remote Authentication Dial-In User Service (RADIUS)	Y
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Y
Power over Ethernet (PoE)	Y
AC input voltage	12
Input current	2.5
Placement	Ceiling,Wall
Product colour	White
Reset button	Y
LED indicators	LAN,Power,Status
Antenna type	Internal
Antenna gain level (max)	4.5
Width	160.9
Depth	160.9
Height	33.25
Weight	412
Package width	220
Package depth	455
Package height	235
Package weight	3980
Quantity per pack	1
Mounting kit	Y
Operating temperature (T-T)	0 - 40
Harmonized System (HS) code	85176990
