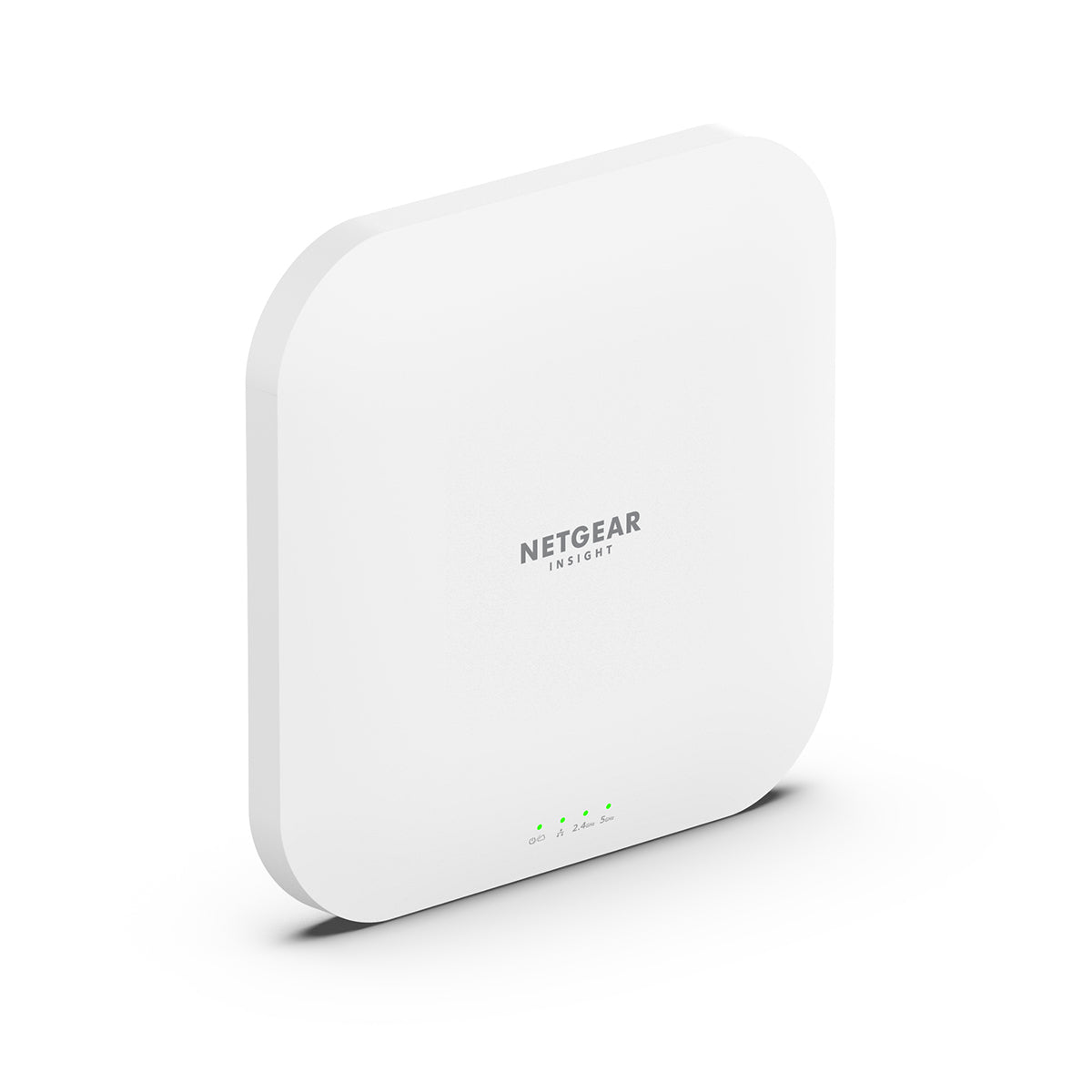

NETGEAR Insight Cloud Managed WiFi 6 AX3600 Dual Band Access Point (WAX620) 3600 Mbit/s White Power over Ethernet (PoE) - WAX620-100NAS

Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business.

High-Performance Business WiFi
Faster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band

Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.

Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.

Seamless Wireless Mesh
Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.

Multi-Gigabit Speed
Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring

Easy Setup
Set up, configure, and manage with NETGEAR Insight

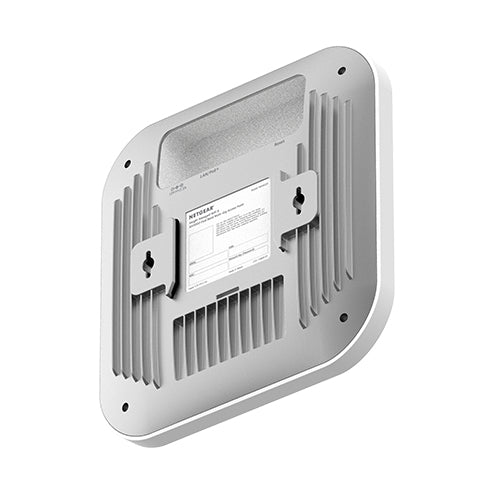

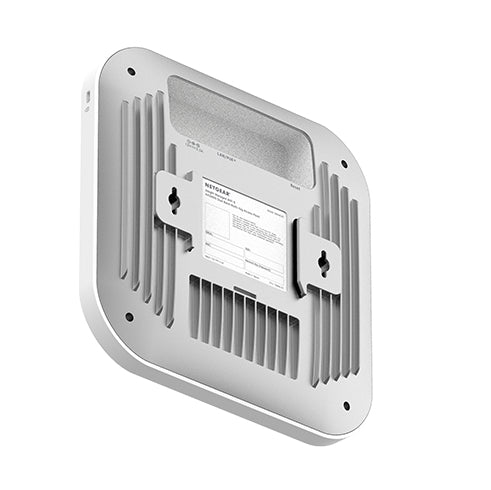

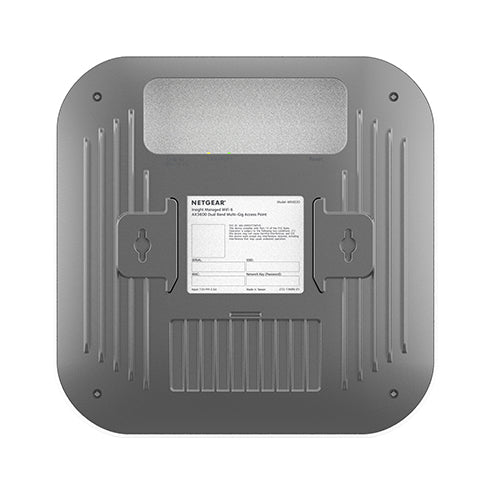

Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included

Business-Level Security
WPA3 for the highest level of WiFi connection security

8 Wireless Networks (SSIDs)
Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more

Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other

• 2.4 GHz 1200 Mbit/s
• 5 GHz 2400 Mbit/s
• Maximum data transfer rate: 3600 Mbit/s
• IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
• EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
• Power over Ethernet (PoE)
• Internal

2.4 GHz	Y
5 GHz	Y
Maximum data transfer rate	3600
Maximum data transfer rate (2.4 GHz)	1200
Maximum data transfer rate (5 GHz)	2400
Ethernet LAN data rates	100,1000,2500
Networking standards	IEEE 802.11ax,IEEE 802.11i,IEEE 802.3af,IEEE 802.3at
Auto MDI/MDI-X	Y
MIMO	Y
MIMO type	Multi User MIMO
Modulation	OFDM
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Security algorithms	EAP-TLS,PEAP,SSL/TLS,TTLS,WPA,WPA2,WPA3
MAC address filtering	Y
Auto Wireless Distribution System (WDS)	Y
Web-based management	Y
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Y
Power over Ethernet (PoE)	Y
Output voltage	12
Output current	2.5
Placement	Ceiling,Wall
Product colour	White
LED indicators	LAN,Power,WLAN
Antenna type	Internal
Antenna gain level (max)	4.3
Width	205.7
Depth	205.7
Height	34.3
Weight	783
Quantity per pack	1
Mounting kit	Y
Quick start guide	Y
Operating temperature (T-T)	0 - 40
Harmonized System (HS) code	85176990
