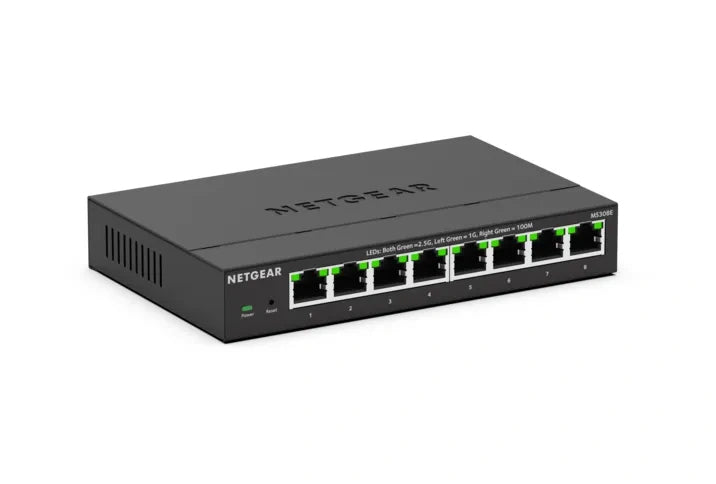

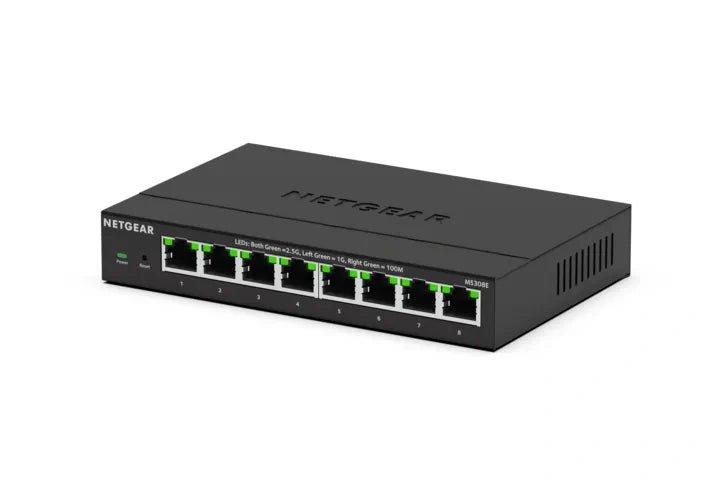

NETGEAR MS308E 2.5G Ethernet (100/1000/2500) 1U Black - MS308E-100NAS

MULTI-GIGABIT ETHERNET
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each

NON-BLOCKING SWITCHING
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices

AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device

FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

• Effortless Setup with Simple Configuration
• Eight (8) 2.5G Multi-Gigabit Ethernet ports for faster connections and increased efficiency
• Compact, robust metal desktop case with silent fanless operation
• Versatile placement options: desktop or wall mounting
• Convenient monitoring via per port LEDs, displaying activity and speed
• Easy management with intuitive web-based Interface
• NETGEAR’s 5-Year hardware warranty for added peace of mind
• Energy-efficient design in line with IEEE 802.3az standards

Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Networking standards	IEEE 802.1p,IEEE 802.3az,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3bz
10G support	N
Full duplex	Y
Half duplex	Y
Auto MDI/MDI-X	Y
Head-of-line (HOL) blocking	Y
Ethernet LAN data rates	100,1000,2500
Cable length detection	Y
MAC address table	16000
Switching capacity	40
Forwarding rate	3.72
Latency (1 Gbps)	4.9
Jumbo frames support	Y
Jumbo frames	12288
Rack mounting	N
Stackable	N
Form factor	1U
Product colour	Black
Housing material	Metal
Wall mountable	Y
Number of fans	0
Noise level	0
Fanless	Y
Mean time between failures (MTBF)	3309911
Power source	DC
Power supply included	Y
DC input voltage	12
Input current	1
Input voltage	12
Power over Ethernet (PoE)	N
Warranty period	5
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	0 - 90
Storage relative humidity (H-H)	0 - 95
Operating altitude	0 - 3000
Heat dissipation	8.27
Width	158
Depth	101
Height	27
Weight	430
