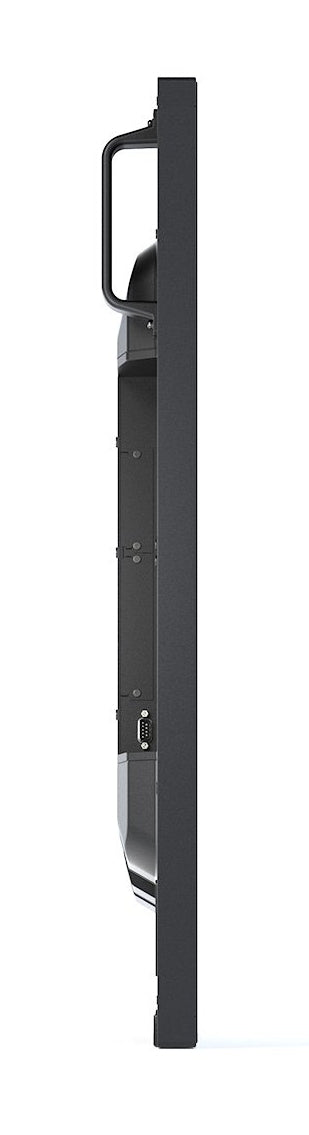

Sharp MultiSync P436 Digital signage flat panel 108 cm (42.5") LCD 700 cd/m² 4K Ultra HD Black 24/7 - PN-P436

Precision performance for critical applications

When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.

Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.

• Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
• Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
• Security assured – 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
• Mission-critical performance – with 700 cd/m² brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
• Trusted integration – full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.

Display diagonal	42.5
Display technology	LCD
Display resolution	3840 x 2160
Display brightness	700
HD type	4K Ultra HD
Touchscreen	N
Panel type	IPS
LED backlight	Y
LED backlighting type	Direct-LED
Native aspect ratio	16:9
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178
Viewing angle, vertical	178
Display number of colours	1.073 billion colours
Pixel pitch	0.245 x 0.245
Active display area (W x H)	941.2 x 529.4
Display diagonal (metric)	108
Horizontal scan range	15 - 135
Vertical scan range	23 - 76
High Dynamic Range (HDR) supported	Y
Native refresh rate	60
Haze rate	25
RGB colour space	DCI-P3
HDMI ports quantity	3
DVI port	N
DisplayPorts quantity	2
USB port	Y
HDMI input ports quantity	2
HDMI output ports quantity	1
DisplayPorts in	1
DisplayPorts out	1
DisplayPort version	1.2
USB ports quantity	4
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A,USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery (USB PD)	Y
Ethernet LAN (RJ-45) ports	2
RS-232C	Y
Remote (IR) input	1
Built-in speaker(s)	Y
Number of built-in speakers	2
RMS rated power	20
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
VESA mounting	Y
Orientation	Horizontal/Vertical
Screen shape	Flat screen
Panel mounting interface	300 x 300
Bezel width (bottom)	13.9
Bezel width (side)	9.9
Bezel width (top)	9.9
Mounting type	Wall
Purpose	Universal
Picture-in-Picture	Y
Operating hours (hours/days)	24/7
HDCP	Y
International Protection (IP) code	IP5X, IP2X
HDCP version	2.2
Power consumption (typical)	80
Power consumption (standby)	2
Power consumption (sleep)	0.5
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	67
Energy consumption (HDR) per 1000 hours	65
AC input voltage	100 - 240
AC input frequency	50 - 60
Energy efficiency scale	A to G
Display width	965
Display depth	66.5
Display height	557.2
Display weight	13500
Package width	1070
Package depth	161
Package height	675
Package weight	18000
Remote control included	Y
Batteries included	Y
Cables included	AC
Operating temperature (T-T)	0 - 40
Operating relative humidity (H-H)	20 - 80
Storage temperature (T-T)	-20 - 60
Storage relative humidity (H-H)	10 - 80
Ethernet LAN	Y
Wi-Fi	N
Ethernet LAN data rates	100
Base material	Metal
Wall mountable	Y
