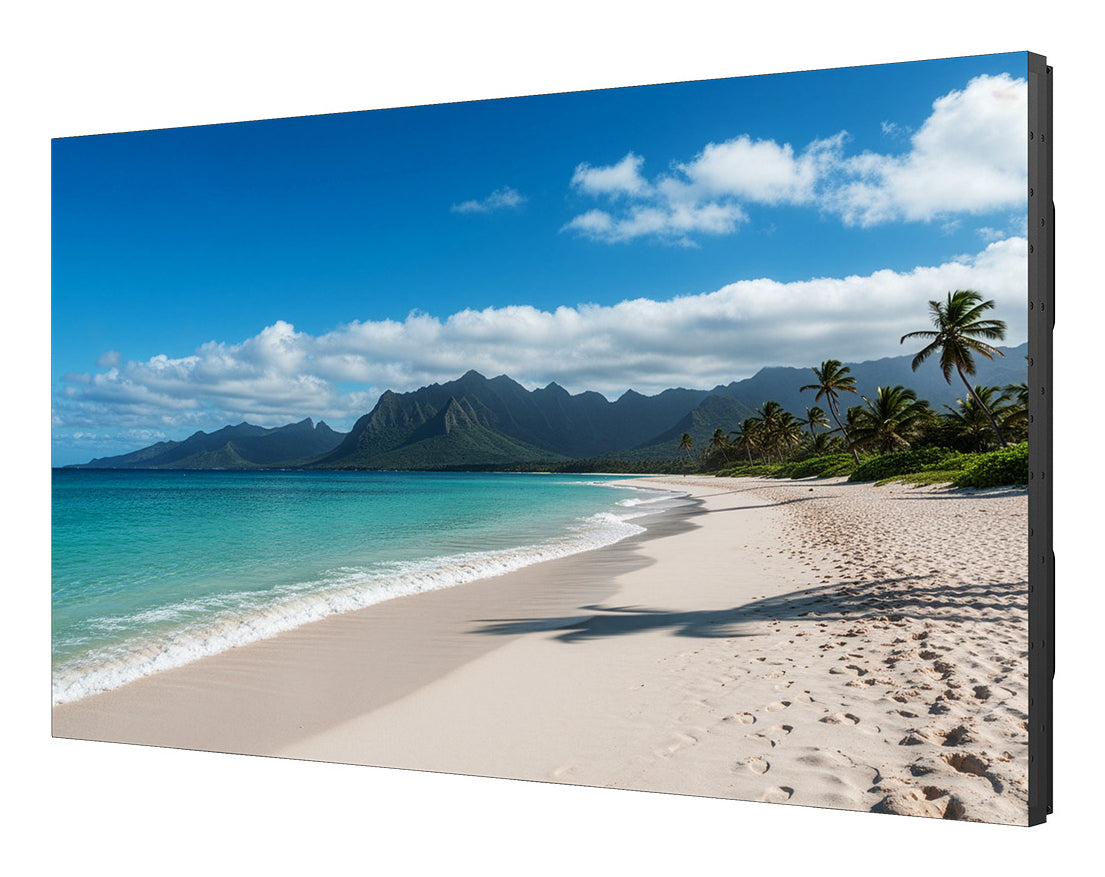

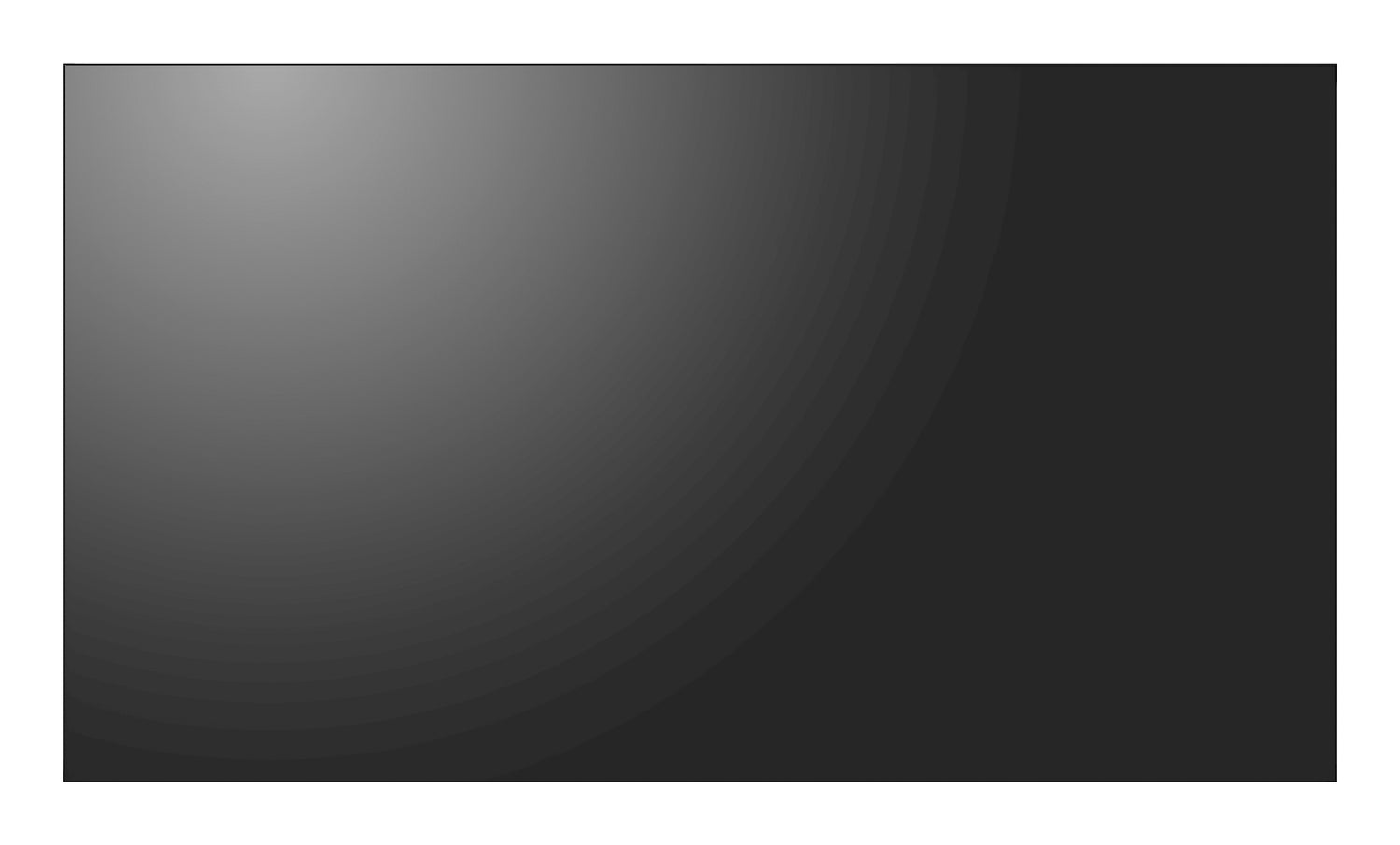

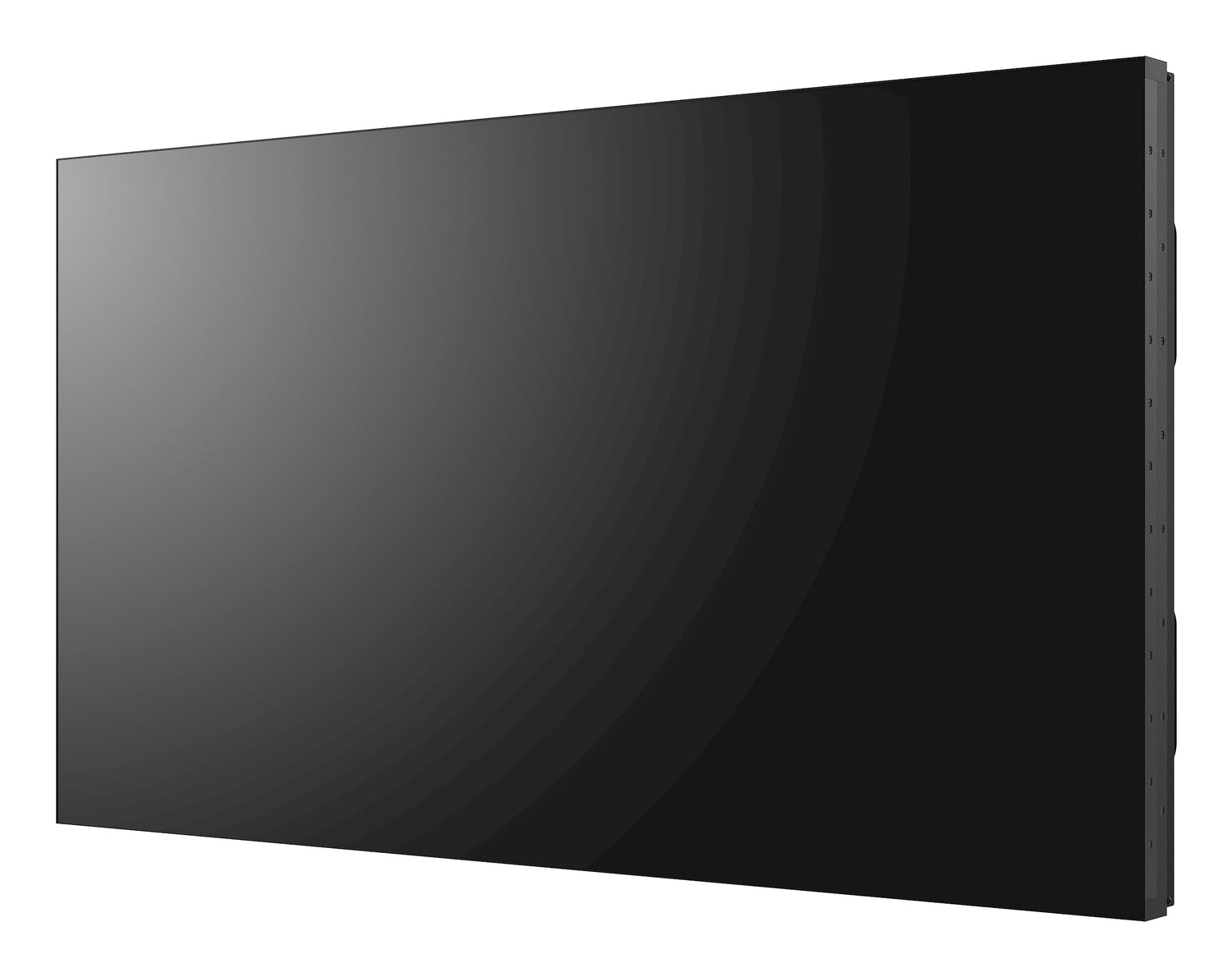

Sharp PN-UN553S LCD Indoor - PN-UN553S

Seamless video walls to amplify your brand

Scale up your visual impact with the modular Sharp MultiSync® UN Series, purpose-designed with ultra-narrow bezels to create high-resolution video walls with minimal image interruption.

Advanced intelligent features and imaging performance powered by SpectraViewTM ensure precise and consistent visualisation across the entire wall, creating the impression of a single, continuous surface for clear and engaging content presentation.

Engineered for 24/7 operation in public spaces, the series combines robust metal construction with advanced thermal management to deliver reliable, long-lasting performance.

Drawing on its heritage of engineering excellence, the 55-inch Sharp MultiSync® UN553S delivers uncompromising quality and dependable operation for demanding applications in corporate and transportation environments and for mission-critical control room scenarios

• Easy installation – effortless set up with Auto TileMatrix and out-of-the-box calibration. Ready-to-use image presets save time for predefined application scenarios.
• Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
• Lifelike and consistent colour – experience true to life colour reproduction with IPS panel technology. Uniform visibility is maintained in both landscape and portrait orientation, as well as at wide viewing angles as viewers pass by.

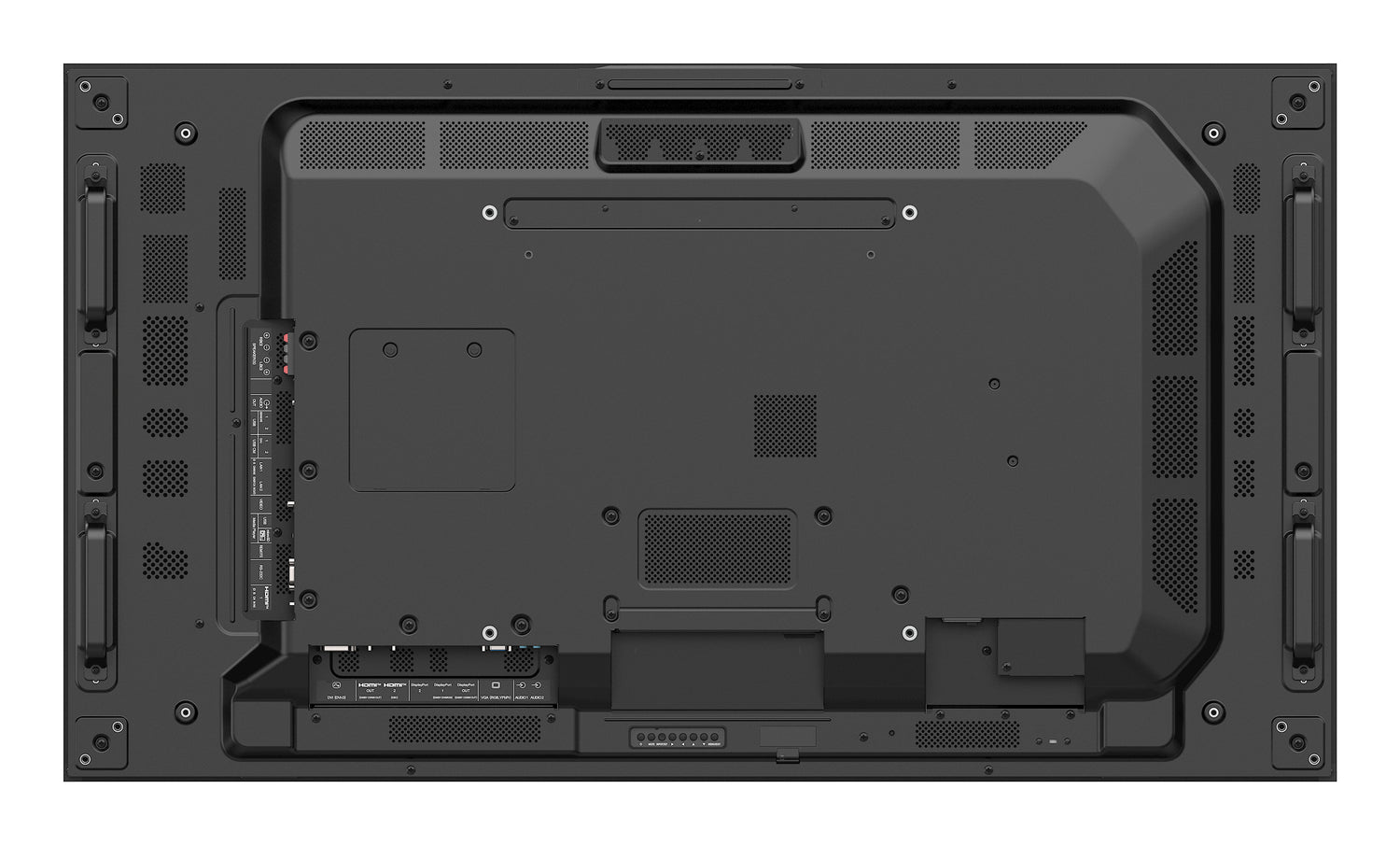

• Secure reliability and longevity – The metal chassis aids natural heat dissipation while the unique heat management system allows users to monitor and control internal temperatures, safeguarding components against heat build-up.
• Cost Saving Device Management – save effort whilst managing all connected Sharp and legacy devices from a centralised location by using the NaViSet Administrator 2 software tool.

Display technology	LCD
Display brightness	700
Display diagonal	55
Display resolution	1920 x 1080
HD type	Full HD
Panel type	IPS
LED backlight	Y
LED backlighting type	Direct-LED
Native aspect ratio	16:9
Contrast ratio (typical)	3500:1
Viewing angle, horizontal	178
Viewing angle, vertical	178
Horizontal scan range	26 - 134
Vertical scan range	23 - 86
Haze rate	25
Colour gamut	72
Display diagonal (metric)	138.8
Placement supported	Indoor
Orientation	Horizontal/Vertical
Wall mountable	Y
VESA mounting	Y
Panel mounting interface	400 x 400

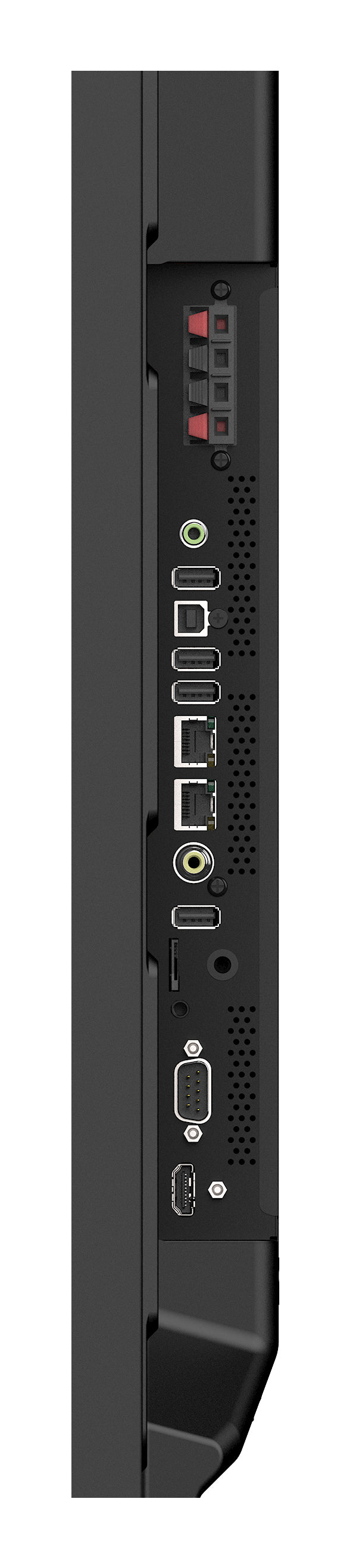

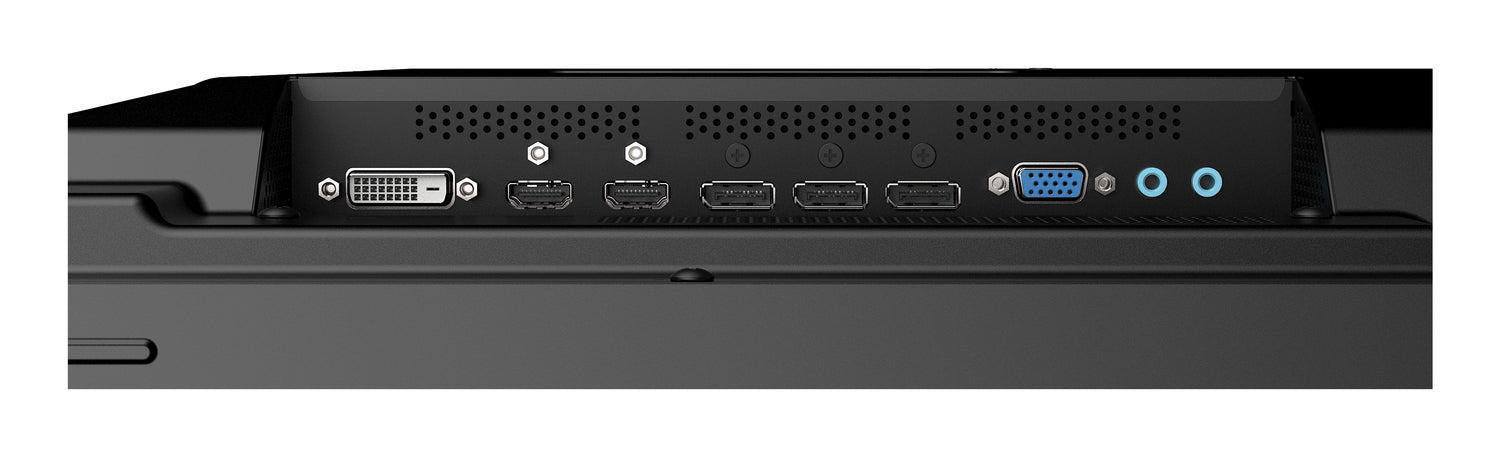

HDMI ports quantity	3
HDMI input ports quantity	2
HDMI output ports quantity	1
VGA (D-Sub) input ports	1
DisplayPorts quantity	3
DisplayPorts in	2
DisplayPorts out	1
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
RS-232 input ports	1
HDCP	Y
Audio input	Y
Audio output	Y
Power consumption (typical)	180
Power consumption (standby)	2
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	146
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-20 - 60
Operating relative humidity (H-H)	20 - 80
Storage relative humidity (H-H)	10 - 90
Width	1210.5
Depth	103
Height	681.3
Weight	28100
