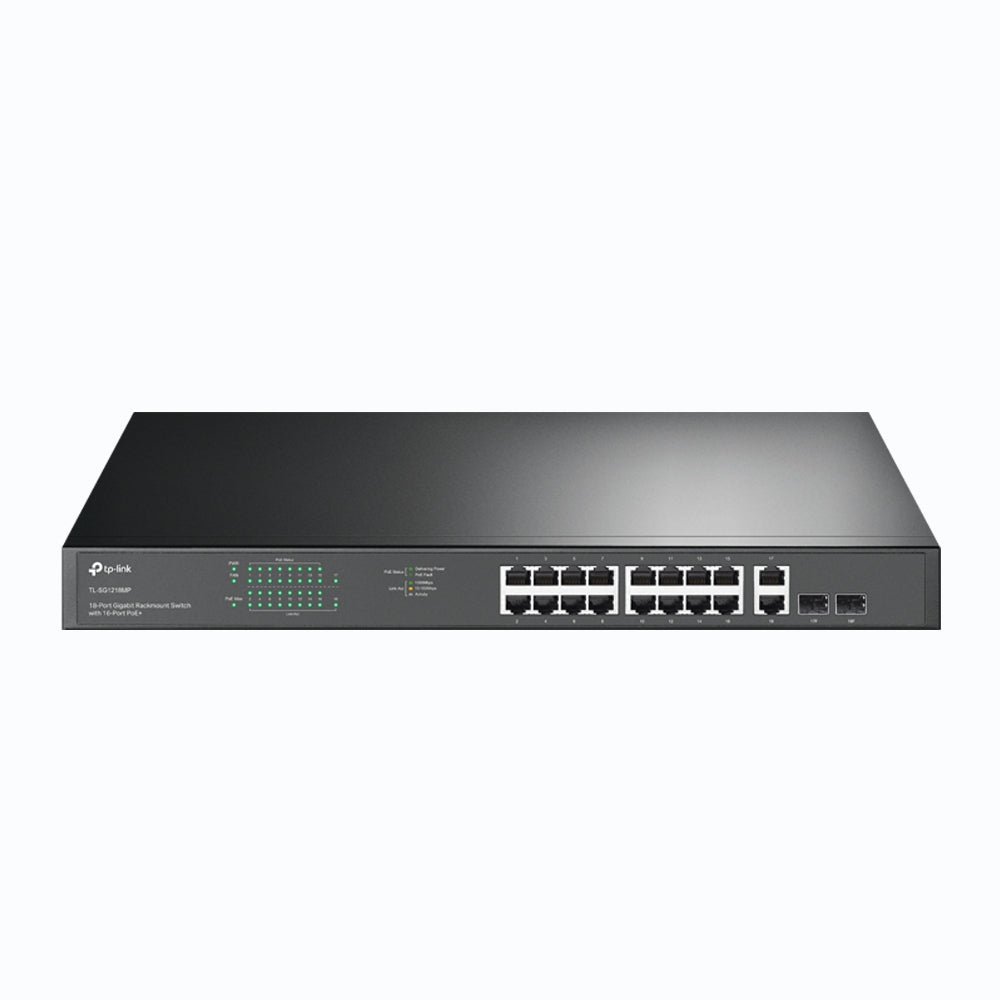

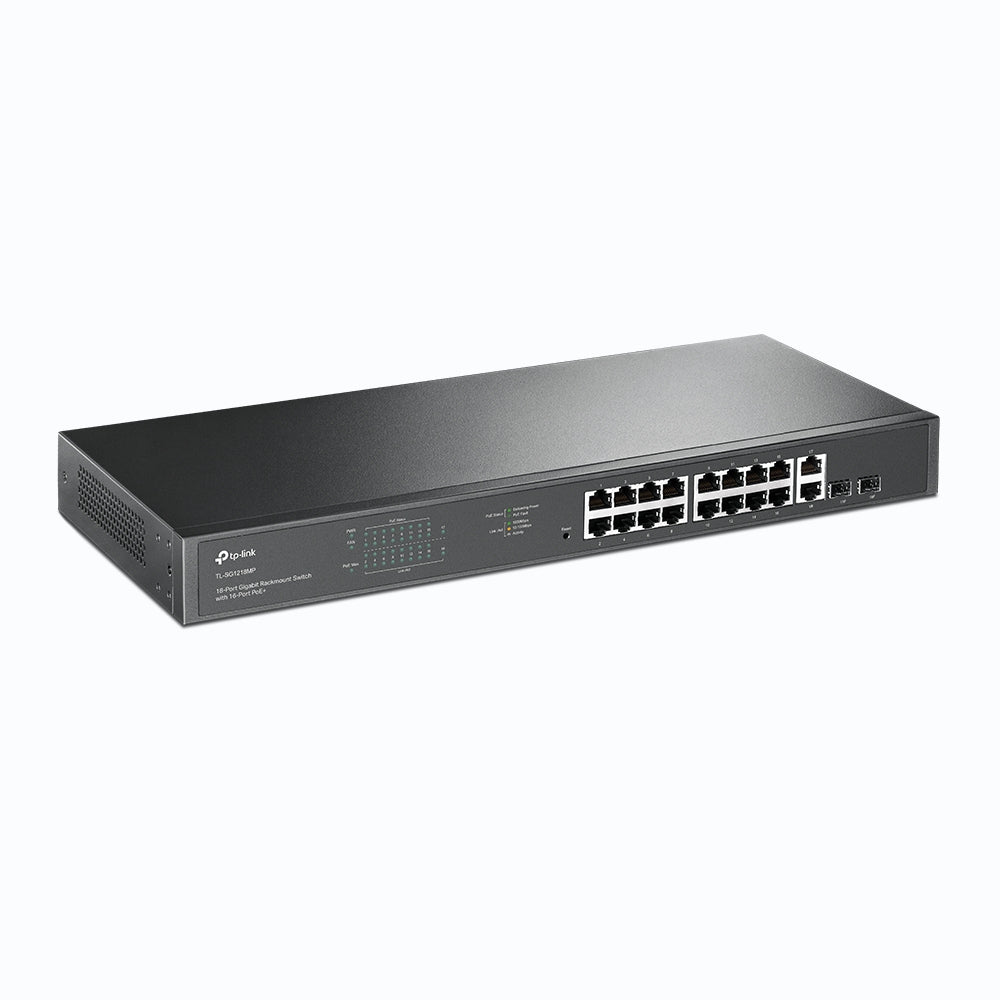

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+ - TL-SG1218MP

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

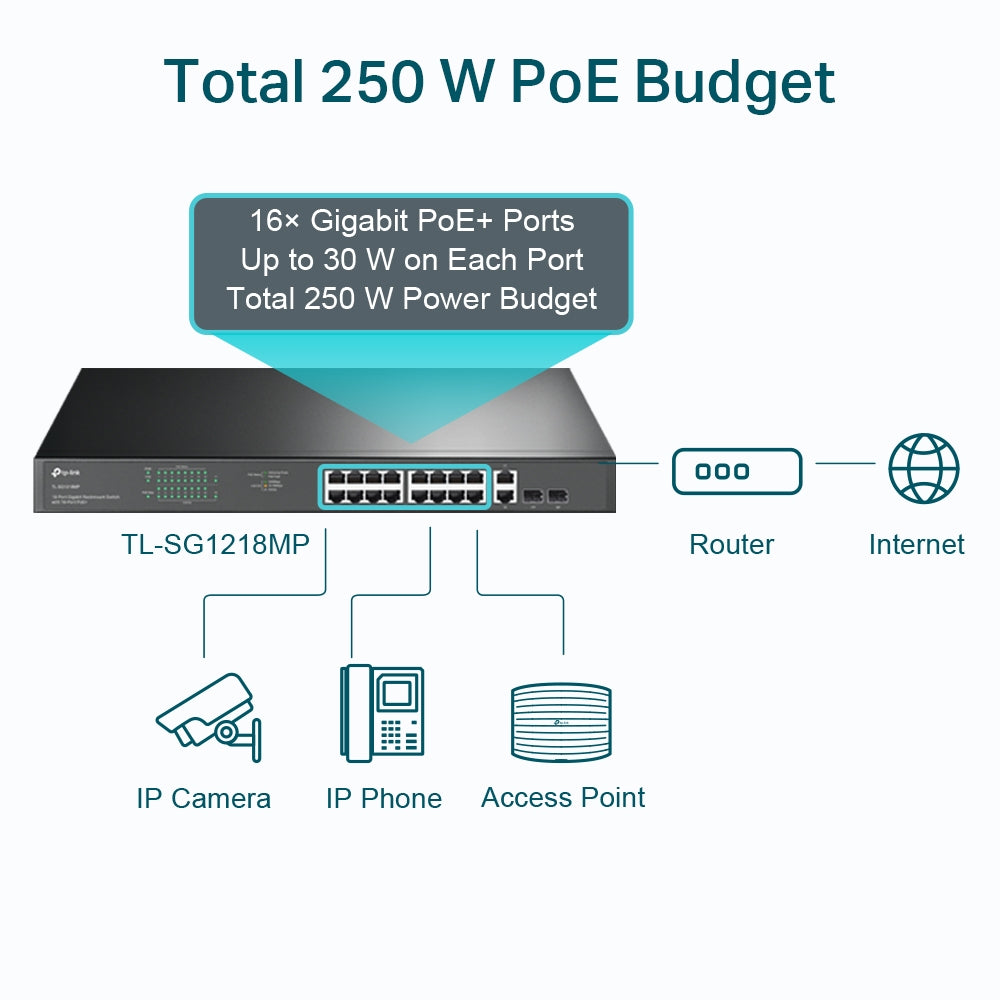

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

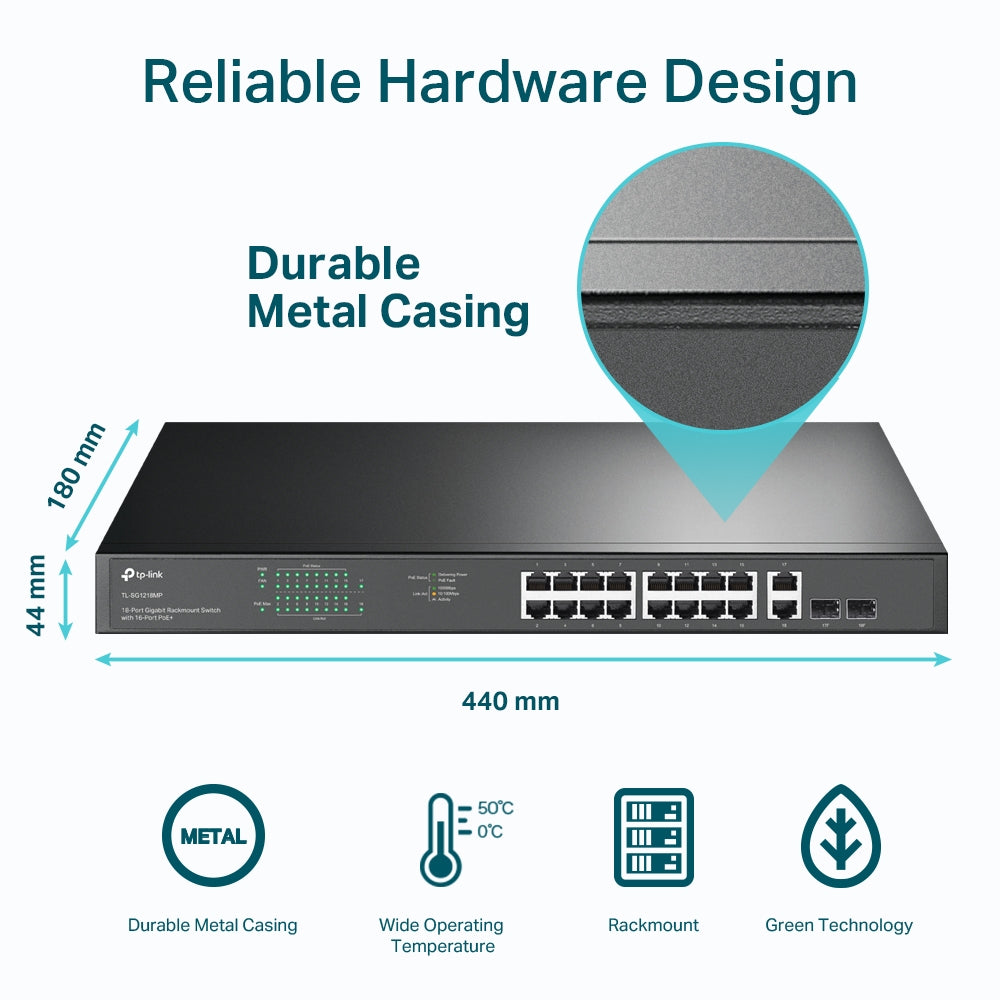

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

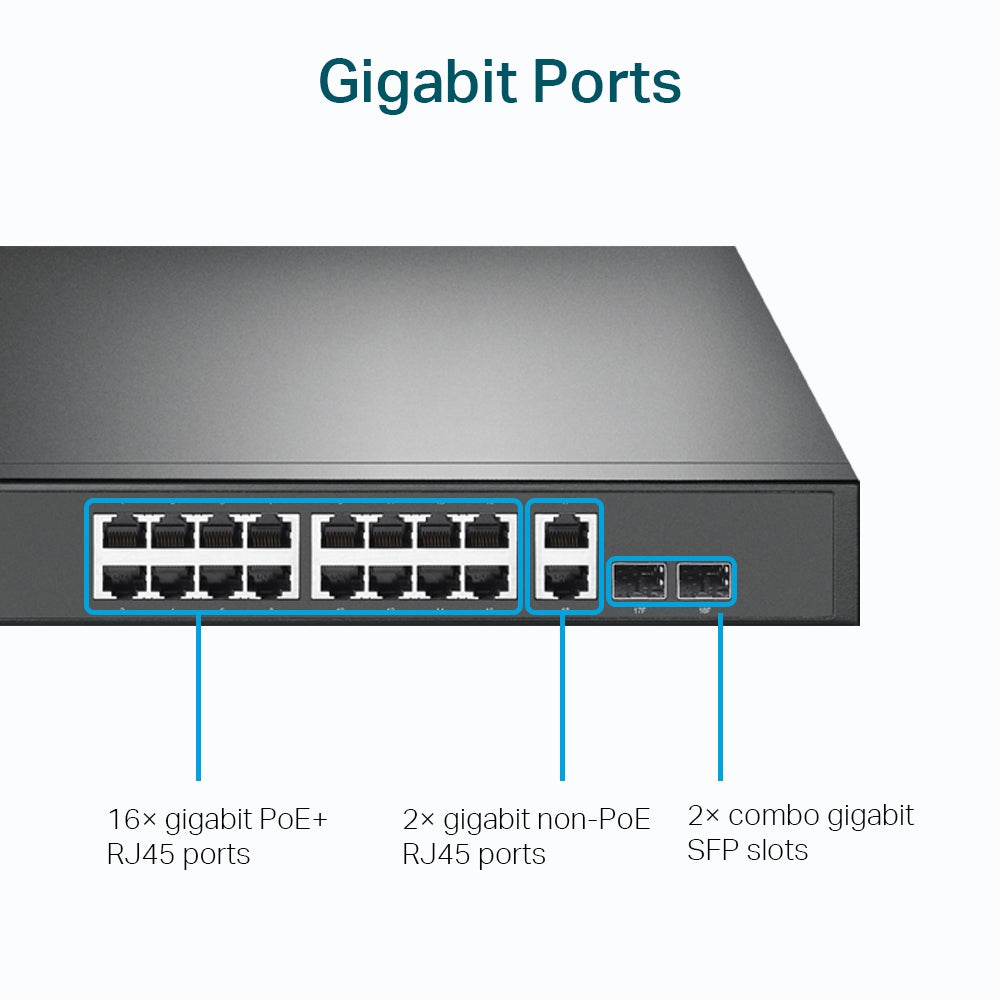

• 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
• Working with IEEE 802.3af/at compliant PDs

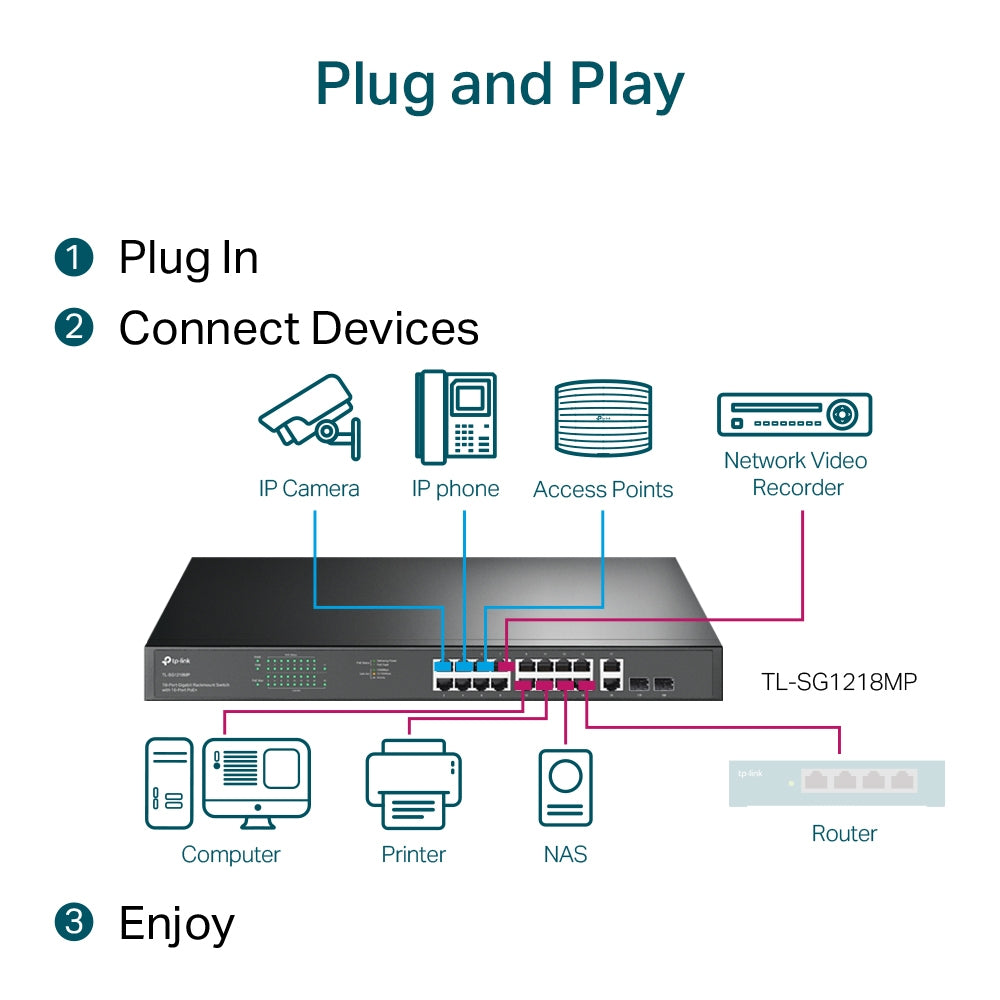

• Plug and play, with no configuration and installation needed
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)

Switch type	Unmanaged
Quality of Service (QoS) support	Y
Traffic classification	Y
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	18
Combo SFP ports quantity	2
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
10G support	N
Cable types supported	Cat3,Cat4,Cat5,Cat5e,Cat6
Full duplex	Y
Half duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Ethernet LAN data rates	10,100,1000
Auto-negotiation	Y
MAC address auto-learning supported	Y
MAC address auto-aging supported	Y
MAC address table	8000
Switching capacity	36
Forwarding rate	26.78
Jumbo frames support	Y
Jumbo frames	10000
Packet buffer memory	4.1
Rack mounting	Y
Form factor	1U
Product colour	Black
Housing material	Metal
LED indicators	Y
Number of fans	2
Power source	AC
Power supply included	Y
AC input voltage	100 - 240
AC input frequency	50 - 60
Power consumption (max)	286.64
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	250
Operating temperature (T-T)	0 - 50
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	977.44
Width	440
Depth	180
Height	44
Cables included	AC
Quick start guide	Y
Package width	250
Package depth	528
Package height	80
Package weight	3050
Certification	CE, FCC, RoHS
Harmonized System (HS) code	85176990
