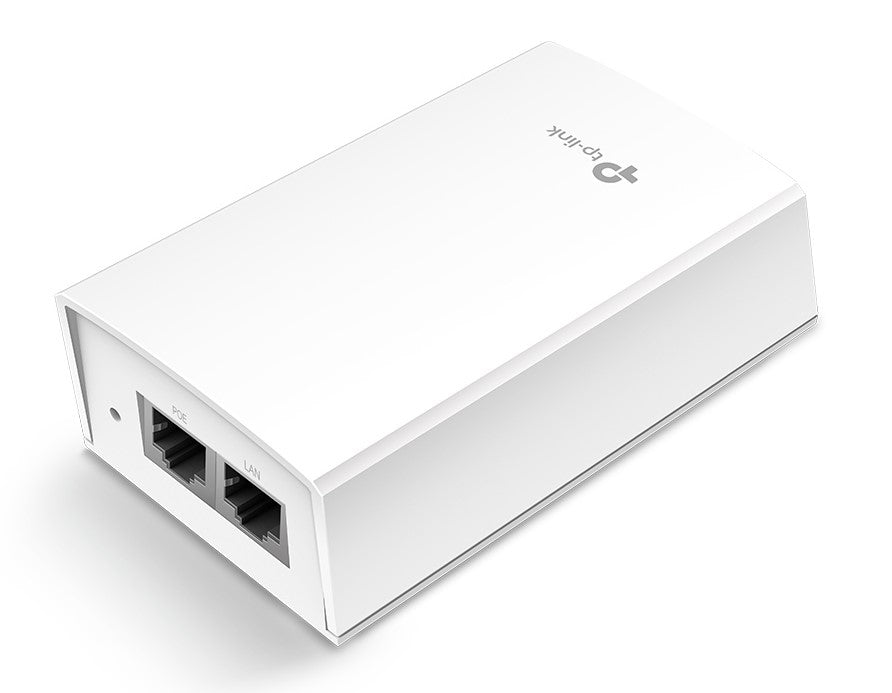

TP-Link 48V Passive PoE Adapter - POE4824G

Passive PoE Adapter
Powers TP-Link products that
support 48V passive PoE

Power Your Devices
Use the passive PoE adapter TL-POE4824 to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE4824 offers a convenient wall-mounting brackets to be easily installed on a wall.

• Gigabit network ports
• 48VDC passive PoE injector
• Auto-detect and auto-supply the necessary power required
• Convenient wall-mount kit
• Plug-and-Play, requires no configuration

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000
Cabling technology	10/100/1000
Power over Ethernet (PoE)	Y
Cable types supported	Cat3,Cat4,Cat5,Cat5e,Cat6
Product colour	White
Wall mountable	Y
Plug and Play	Y
Maximum operating distance	100
LED indicators	Power
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power over Ethernet (PoE) voltage	48
Output power	24
Compliance certificates	RoHS
Certification	FCC, CE, RoHS
Operating temperature (T-T)	0 - 40
Operating temperature (T-T)	32 - 104
Operating relative humidity (H-H)	10 - 90
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
Width	110
Depth	57
Height	38.8
Number of products included	1
Wall mounting kit	Y
Power cord included	Y
Package width	65
Package depth	198
Package height	65
Package weight	370
Harmonized System (HS) code	85044095
