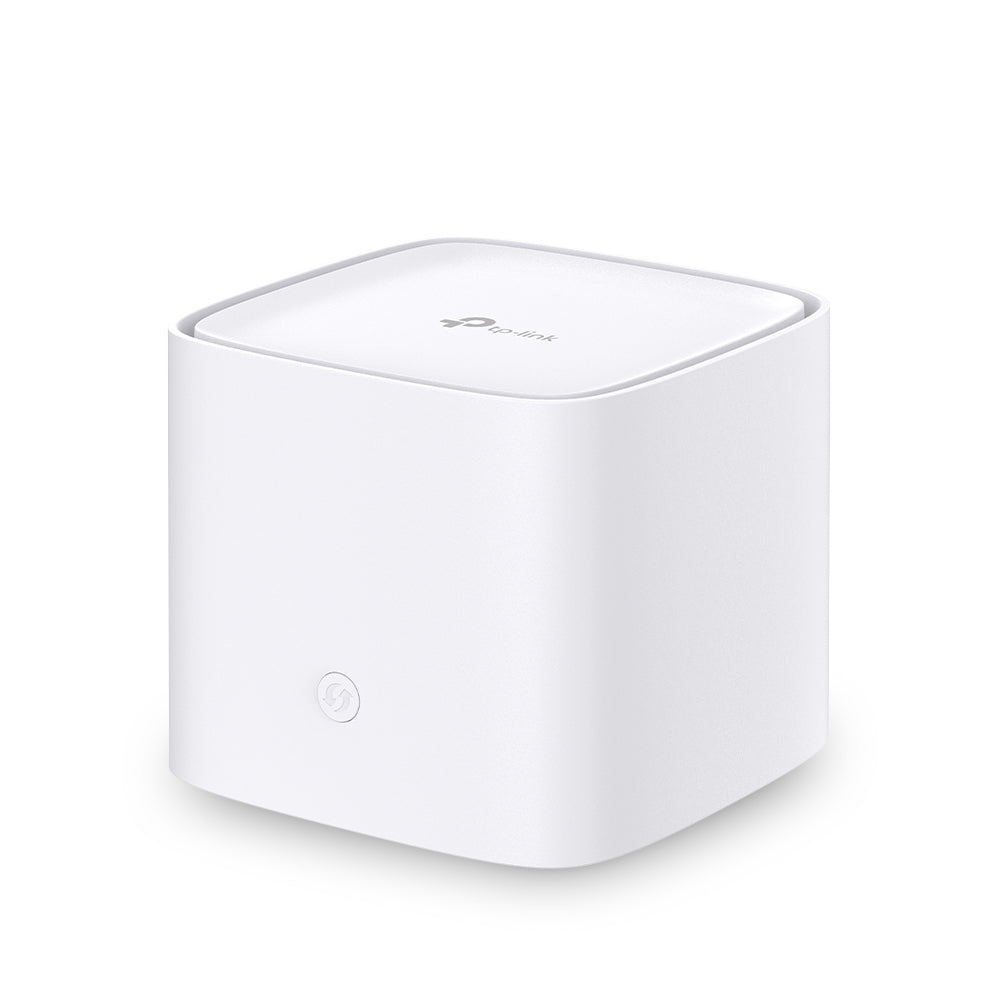

TP-Link AC1200 Whole Home Mesh WiFi System - HC220-G5(1-PACK)

Fast. Stable. Everywhere.
AC1200 Whole Home Mesh WiFi System

Whole Home Coverage
Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.

Seamless Roaming with One Wi-Fi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

2-in-1 Router and Access Point Modes
Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

Robust Network Protection

WPA3 Security
Higher password safety and enhanced protection against brute-force attacks

Multi-SSID
Create guest networks for visitors and keep your main network secure

Parental Controls
Block inappropriate content and restrict time spent online

Easy to Set Up and Use
You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.

Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

Aginet Solution:
End-to-End Management System for ISPs
Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.

• Faster Connections: Speeds up to 1200 Mbps—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
• Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal
• One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home
• Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience
• EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology
• Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app
• Remote Management: TAUC cloud management, TR-098, TR-181, TR-111, and TR-143 are supported

Product colour	White
Antenna type	Internal
Product type	Mesh system
LED indicators	Yes
Transmit power	30
Reset button	Y
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300
WLAN data transfer rate (second band)	867
Networking standards	IEEE 802.11k,IEEE 802.11r,IEEE 802.11v
Security algorithms	SSID,WMM,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK,WPA3
Point-to-point protocol over Ethernet (PPPoE)	Y
Dynamic IP	Y
Static IP	Y
IGMP snooping	Y
Apps supported	TP-Link Tether
Mobile network generation	Not supported
Built-in processor	Y
Processor cores	2
Processor frequency	0.88
Band steering	Y
Quality of Service (QoS) support	Y
Port forwarding	Y
Firewall security	SPI
BeamForming	Y
Transmitting power (CE)	20
Transmitting power (FCC)	30
NAT functionality	IPTV, IGMPV2/3 and IGMP Snooping
DHCP client	Y
DHCP server	Y
Mobile operating systems supported	Android,iOS
Parental control	Y
SSID Broadcast	Y
Supported WAN type	Dynamic IP/Static IP/PPPoE
MU-MIMO technology	Y
MIMO	Y
Operating modes	Router Mode, Access Point Mode
Supported network protocols (IPv6)	IPv4 IPv6

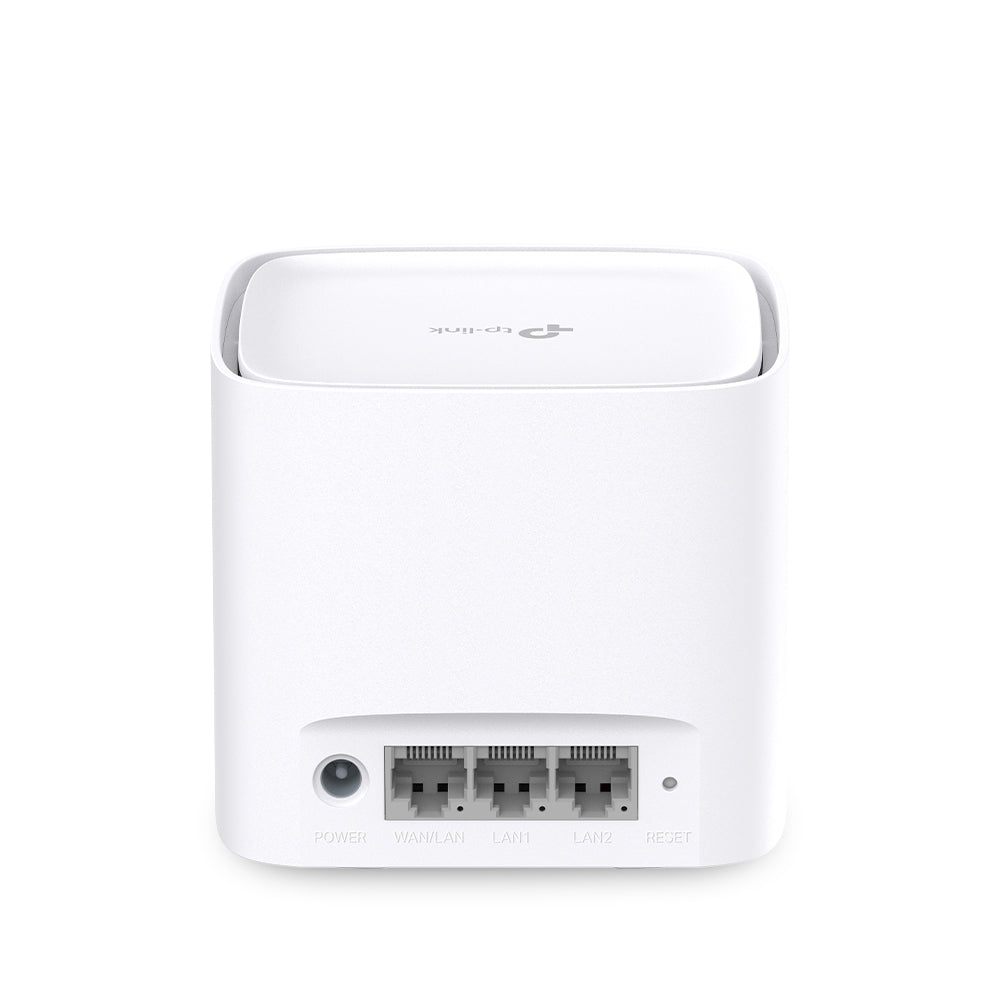

Ethernet LAN (RJ-45) ports	3
Ethernet WAN	Y
DC-in jack	Y
AC input voltage	12
AC adapter input current	1
Compliance certificates	CE,Federal Communications Commission (FCC)
Certification	CE, FCC
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 60
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Width	100
Depth	100
Height	89.5
Number of products included	1
AC adapter included	Y
Number of units included	1
Ethernet cable	Y
