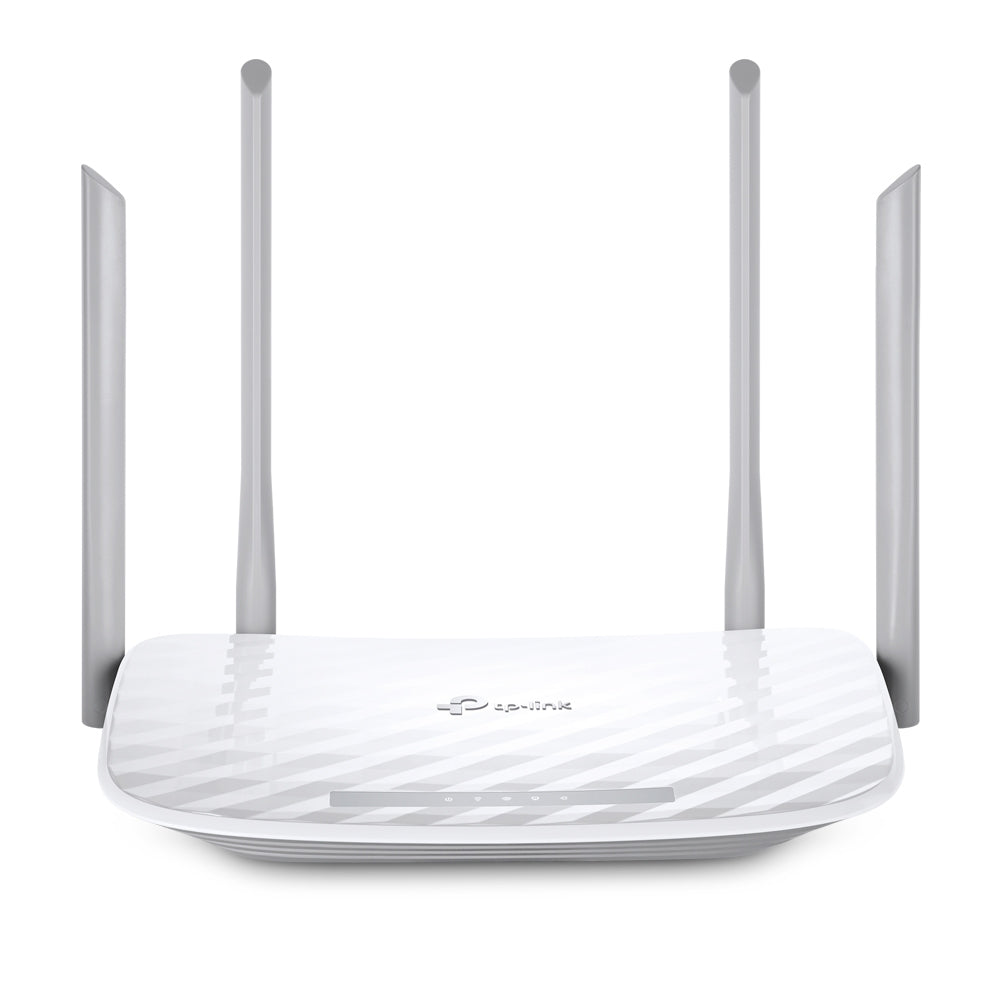

TP-Link Archer A54 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) White - ARCHER A54

High-Speed Dual Band Wi-Fi for Better Connections
The Archer A54 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology. With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer A54 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

1. Router Mode
Connect to the Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices.

2. Access Point Mode
Transform your existing wired network to a wireless one.

3. Range Extender Mode
Boost the existing wireless coverage in your room.

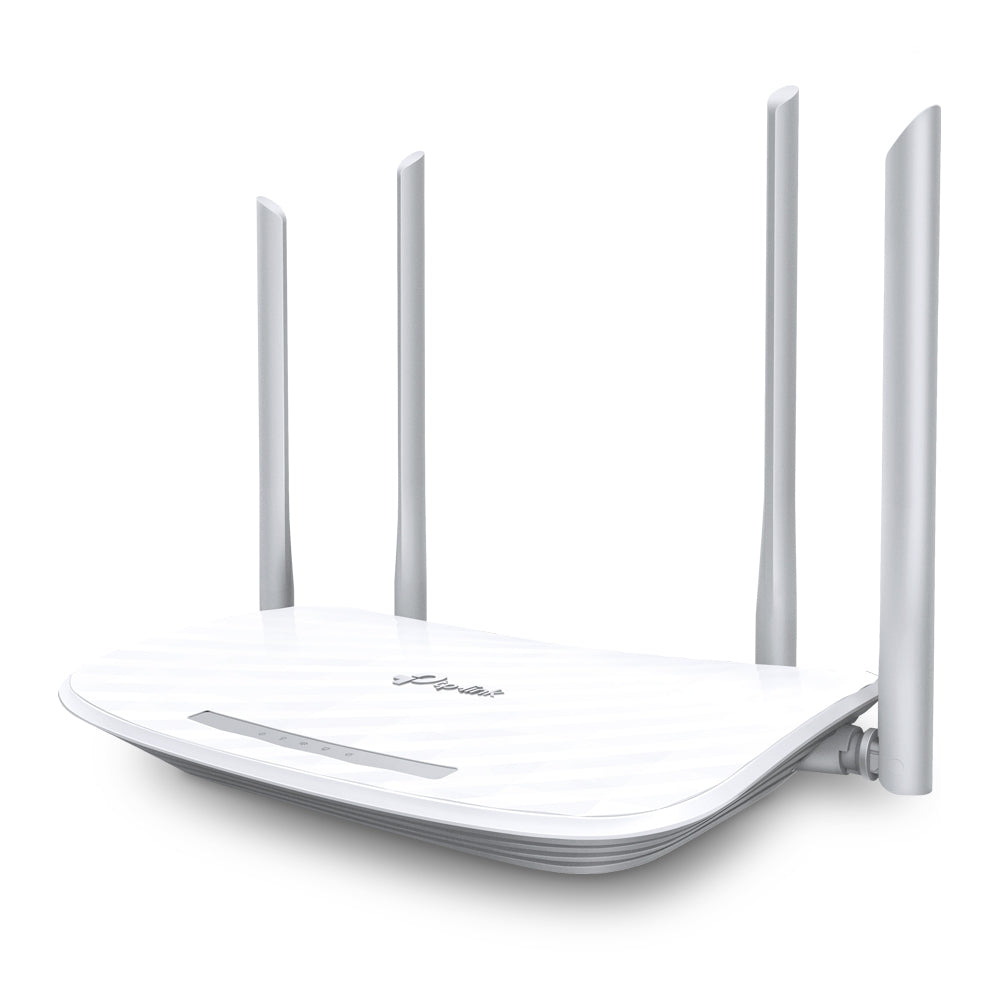

4 Antennas & Beamforming for Maximum Coverage
Equipped with four external antennas, Archer A54 creates stronger and more reliable networks for all to enjoy in your home. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance.

Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.

Guest Network Access
Allow guests to join your Wi-Fi network while protecting your privacy. Make sharing easy, maintain security. Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. Easily share your facebook account to anyone who connects to your network.

Connect More Devices Simultaneously
Archer A54 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Two simultaneous data streams, allow all connected devices to achieve faster speeds than standard AC routers.

Easy Setup and Use
Set up the Archer A54 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

IPv6 Supported
Future-proof your network with IPv6 (Internet Protocol Version 6) support

IPTV
Improve your IPTV streaming experience with IGMP Proxy/Snooping Bridge and Tag VLAN

LED Control
Easily schedule the LED on or off to your needs, no blinking light disturbing your sleep

Tether APP
Tether APP lets you manage your network settings easily from any Android or iOS device

• Support smooth 4K streaming with AC1200 Wi-Fi
• 4 external antennas provide stable wireless connections and optimal coverage
• Easy network management at your fingertips with TP-Link Tether
• Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
• Supports Access Point mode to create a new Wi-Fi access point

Ethernet WAN	Y
DSL WAN	N
SIM card slot	N
3G/4G USB modem compatibility	N
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300
WLAN data transfer rate (second band)	867
Ethernet LAN	Y
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Port forwarding	Y
Port triggering	Y
Dynamic DNS (DDNS)	Y
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Receiver sensitivity	5GHz: 11a 54M -73dBm, 11ac VHT20 MCS8 -68dBm, 11ac VHT40 MCS9 -64dBm, 11ac VHT80 MCS9 -60dBm 2.4GHz: 11g 54M -76dBm, 11n HT20 MCS7 -74dBm, 11n HT40 MCS7 -71dBm
3G	N
4G	N
5G	N

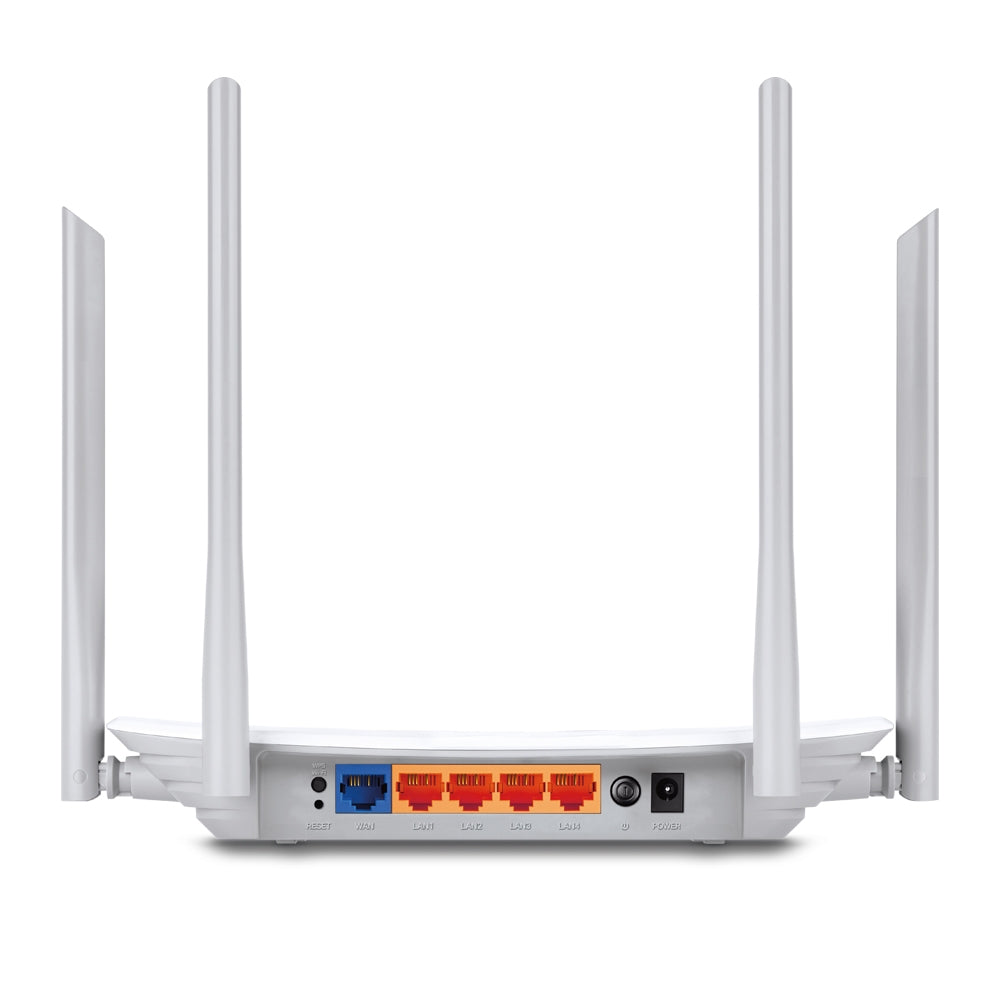

Ethernet LAN (RJ-45) ports	4
USB port	N
DC-in jack	Y
Web-based management	Y
Quality of Service (QoS) support	Y
Reset button	Y
WPS push button	Y
Security algorithms	WEP,WPA,WPA2,WPA2-Enterprise
Firewall	Y
Stateful Packet Inspection (SPI)	Y
Parental control	Y
URL filtering	Y
DMZ support	Y
DHCP client	Y
DHCP server	Y
Universal Plug and Play (UPnP)	Y
Product type	Tabletop router
Product colour	White
LED indicators	LAN,Power,WLAN
On/off switch	Y
Compliance certificates	RoHS
Cables included	LAN (RJ-45)
AC adapter included	Y
Quick installation guide	Y
Antenna design	External
Antennas quantity	4
Detachable antenna(s)	N
Transmit power	<20dBm(2.4GHz), <23dBm(5GHz)
Built-in processor	Y
Processor cores	1
4K streaming	Y
Power source type	DC
Output voltage	9
Output current	0.85
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Browser supported	nternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled
Width	229.9
Depth	144.2
Height	36.9
