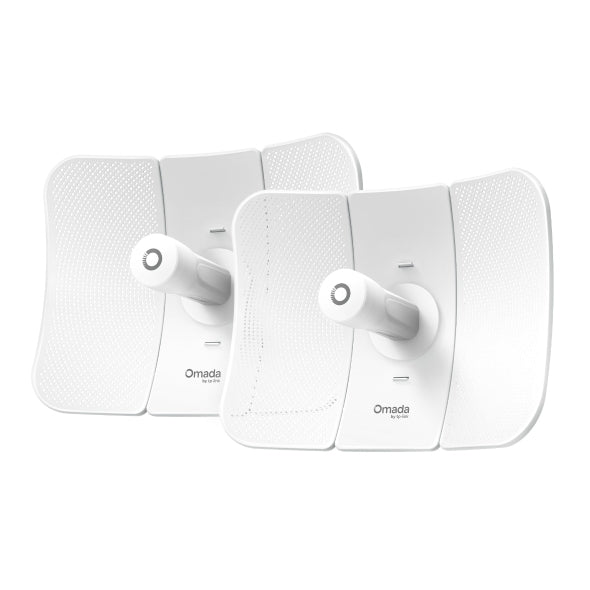

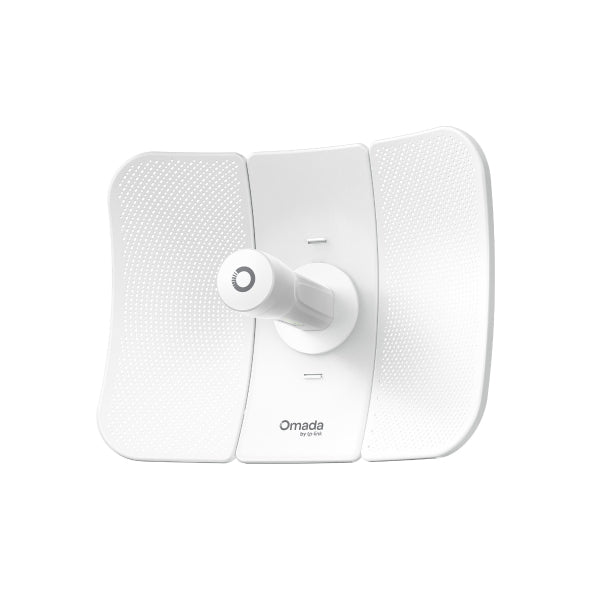

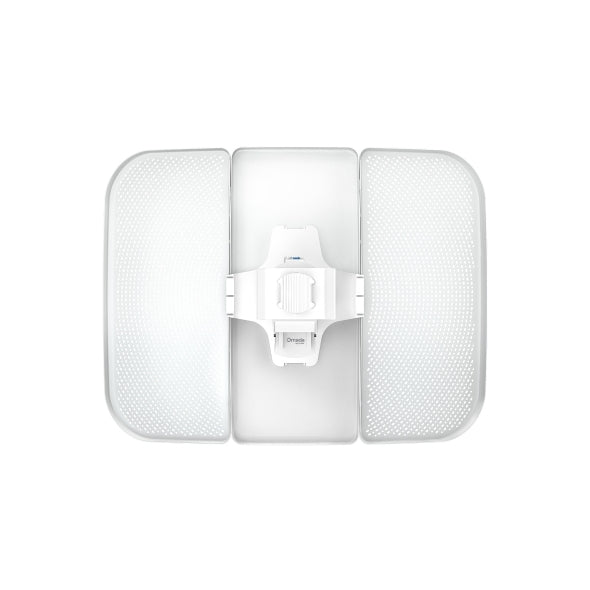

TP-Link Beam Bridge 5 UR KIT Network bridge White - BEAM BRIDGE 5 UR KIT

Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification.
Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App†

• Network bridge 15000 m
• Wi-Fi Single-band (5 GHz) Wi-Fi 5 (802.11ac)
• Ethernet LAN Gigabit Ethernet
• IP65
• Antenna design: External
• White

Maximum transfer distance	15000
Antenna design	External
Wi-Fi	Y
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000
Ethernet LAN (RJ-45) ports	1
Security algorithms	SNMP,SSH
Web-based management	Y
Product type	Network bridge
Mounting type	Pole
Product colour	White
LED indicators	Y
Reset button	Y
International Protection (IP) code	IP65
Network Time Protocol (NTP) client	Y
Power source type	PoE
Power consumption (max)	15.8
Operating temperature (T-T)	-40 - 70
Operating temperature (T-T)	-40 - 158
Operating relative humidity (H-H)	10 - 90
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
Certification	CE, FCC, RoHS
Width	366
Depth	280
Height	207
Weight	1100
Packaging content	• Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord
Package type	Box
