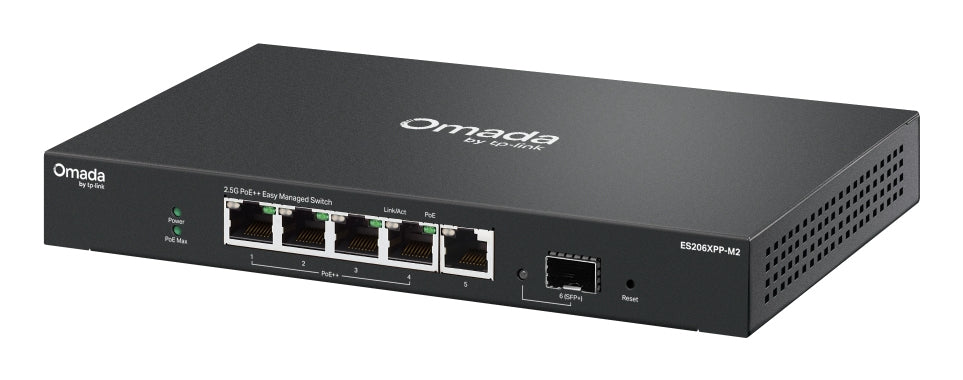

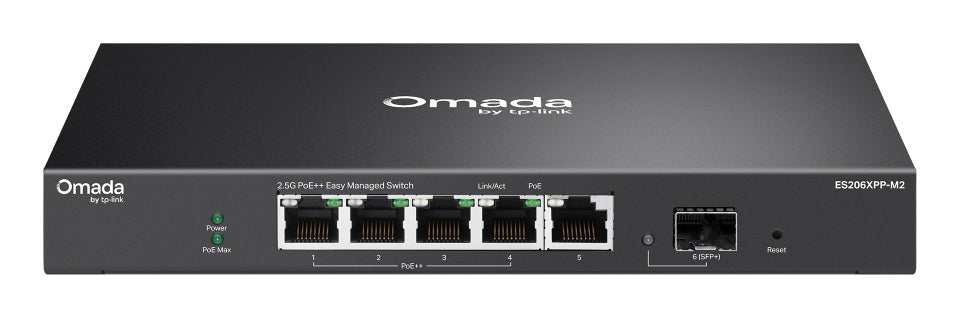

TP-Link ES206XPP-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting Black - ES206XPP-M2

Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.

• 5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
• 1× 10 Gbps SFP+ slot
• 120W PoE budget, with up to 90W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping
• Fanless design for silent operation

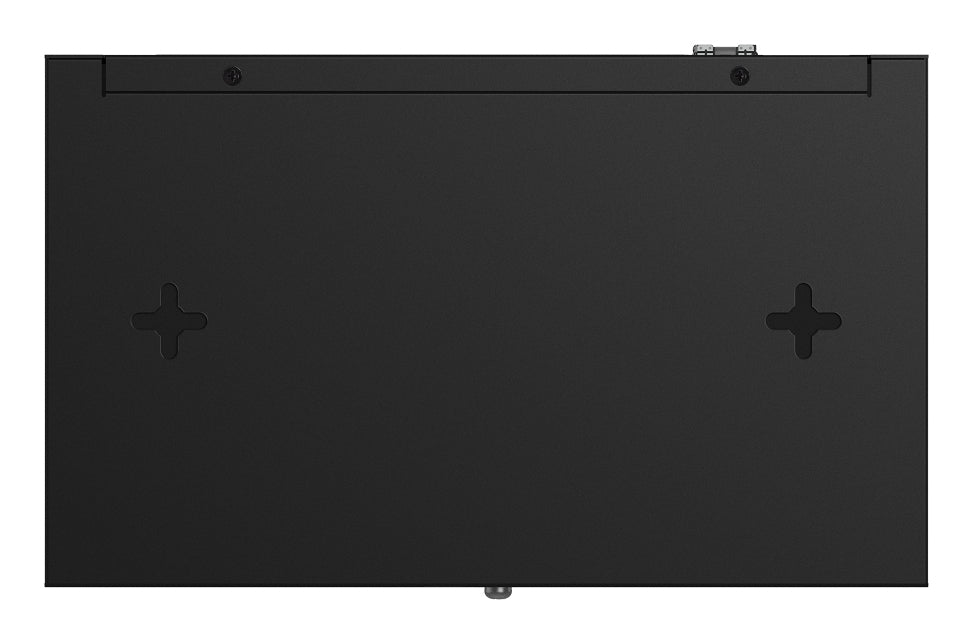

• Durable metal casing and desktop/wall mounting design

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	1
Networking standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3aq,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1ab
10G support	N
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
VLAN support	Y
Virtual LAN features	MTU VLAN,Port-based VLAN
MAC address table	16000
Switching capacity	45
Forwarding rate	33.48
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	10
Packet buffer memory	0.64
DHCP features	DHCP client
IGMP snooping	Y
Form factor	Desktop/Wall-Mounting
Product colour	Black
LED indicators	Y
Flash memory	64
Firmware upgradeable	Y
Power source	AC/PoE
Power supply included	Y
AC input voltage	100 - 240
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity	4
Power over Ethernet (PoE) power per port	90
Total Power over Ethernet (PoE) budget	120
Operating temperature (T-T)	-5 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Width	209
Depth	126
Height	26
Certification	CE, FCC, RoHS
