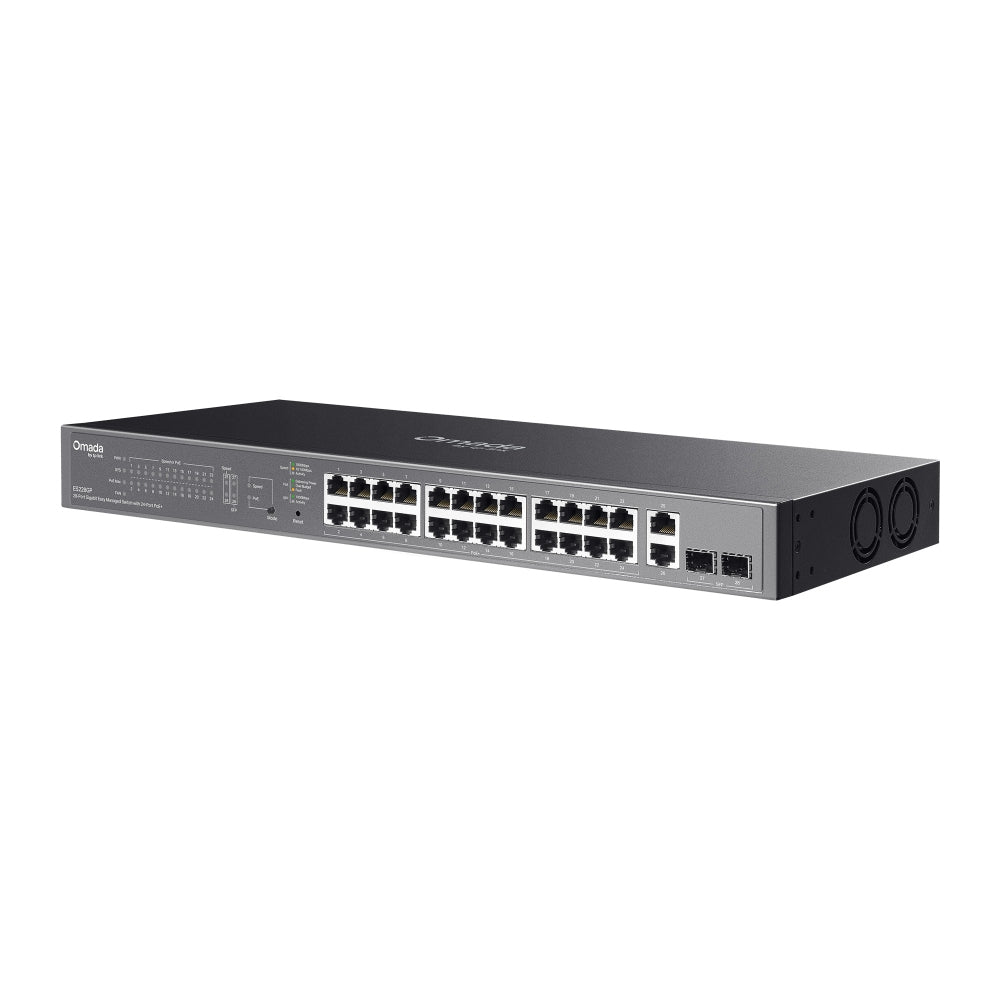

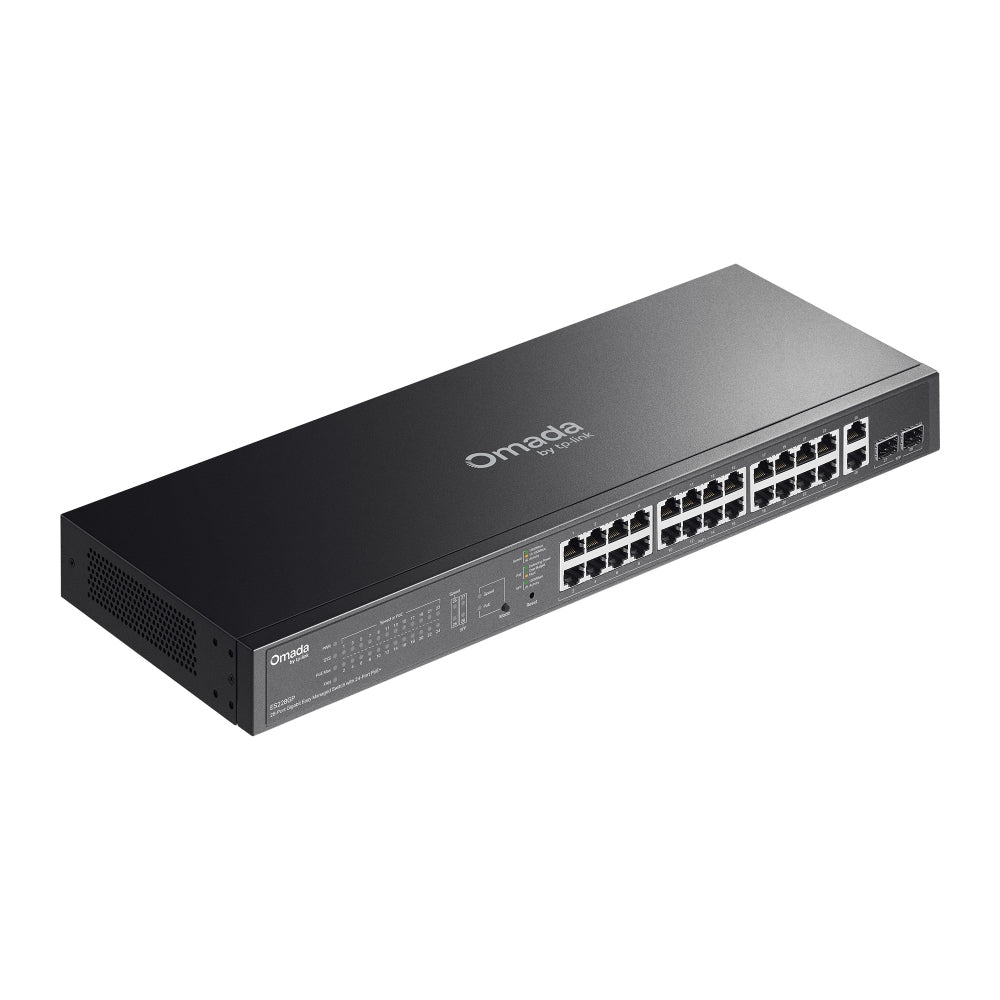

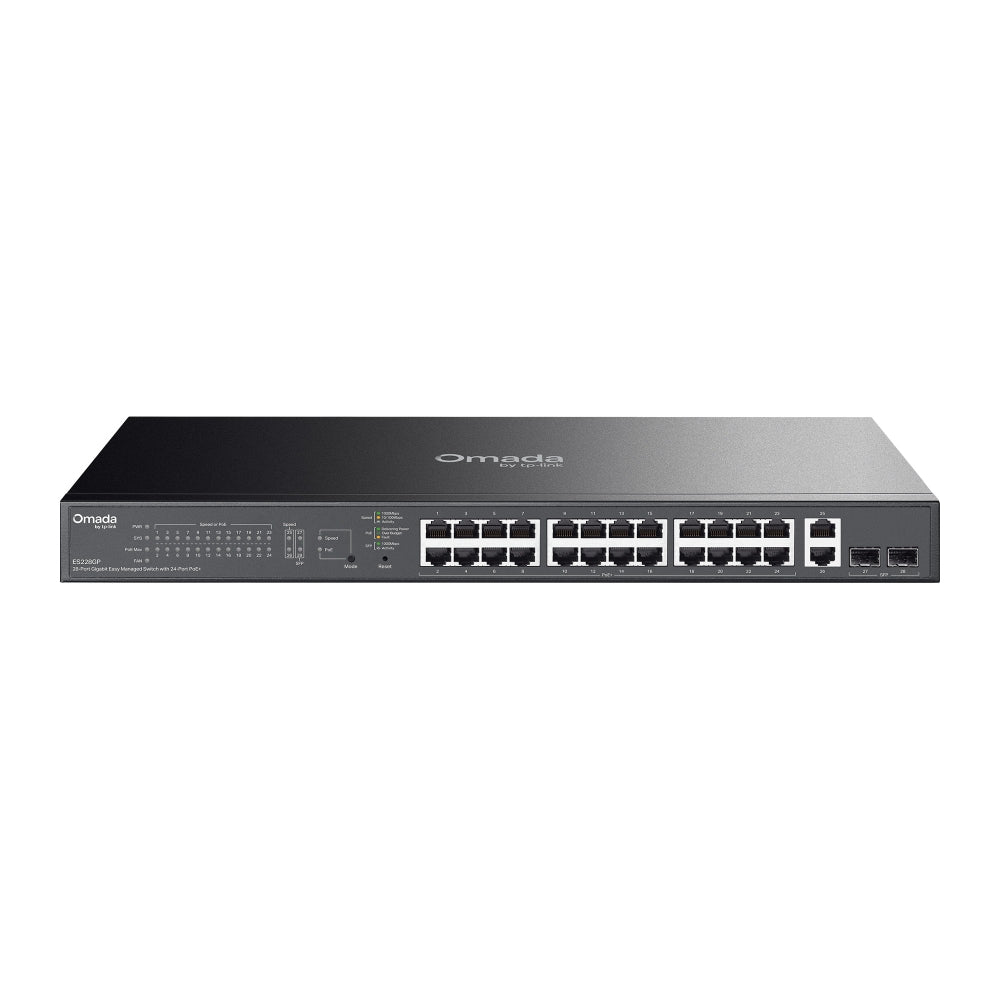

TP-Link ES228GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black - ES228GP

Omada Central Essentials — A Free and Easy Cloud-Based Network Management

Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Multiple Application Scenarios

Surveillance

Works with IP Cameras

Wi-Fi Coverage

Works with Access Points

Wired Connections

Works with Non-PoE Devices such as PCs and Printers

• Managed L2 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 26
• MAC address table: 8000 entries Switching capacity: 56 Gbit/s
• Rack mounting
• AC Power over Ethernet (PoE)

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Networking standards	IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3af,IEEE 802.3at
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
VLAN support	Y
Virtual LAN features	MTU VLAN,Port-based VLAN,Tagged VLAN
MAC address table	8000
Switching capacity	56
Forwarding rate	41.67
Store-and-forward	Y
Number of queues	8
Jumbo frames support	Y
Jumbo frames	15000
Packet buffer memory	4
DHCP features	DHCP client
IGMP snooping	Y
Loop protection	Y
Queue scheduling algorithms	Weighted Round Robin (WRR)
Rack mounting	Y
Product colour	Black
Number of fans	2
Power source	AC
AC input voltage	100 - 240
AC input frequency	50/60
Input current	4
Power protection features	Surge protection
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	250
Operating temperature (T-T)	-5 - 45
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Width	440
Depth	180
Height	44
Cables included	AC
Manual	Y
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
