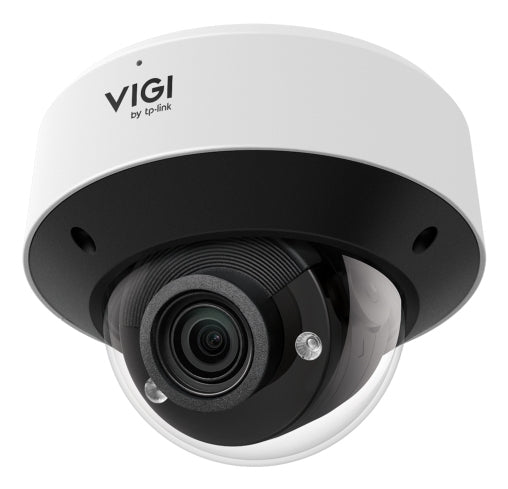

TP-Link InSight S245ZI Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling - INSIGHT S245ZI

See Every Detail Up Close
4MP IR Motorized Varifocal Dome Network Camera

Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

• 5X Optical Zoom for Easy Installation and Monitoring
• 4MP Super-High Definition and IR Range Up to 197 ft (60 m)*1
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Maximum operating distance	200
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Remote viewing	Y
Dynamic range	120
Mounting type	Ceiling
Product colour	White
Form factor	Dome
Housing material	Metal
Protection features	Waterproof
International Protection (IP) code	IP67
IK code	IK10
Weatherproof	Y
Camera pan control	Y
Camera tilt control	Y
Minimum illumination	0
Lens viewing angle, horizontal	29.6 - 102
Lens viewing angle, vertical	16.8 - 53.8
Lens viewing angle, diagonal	34.1 - 122.8
Tilt angle range	0 - 75
Camera shutter speed	1/3 to 1/10000
Sensor type	CMOS
Optical sensor size	1/2.9
Progressive scan	Y
Optical zoom	5
Detect distance	200
Observe distance	84
Recognize distance	40
Auto focus	Y
Focus	Motorized
Maximum aperture number	1.6
Identify distance	21
Night vision	Y
LED type	IR/White
Maximum resolution	2688 x 1520
Total megapixels	4
Video compression formats	H.264,H.264+,H.265,H.265+
Supported graphics resolutions	1280 x 720 (HD 720),1920 x 1080 (HD 1080),2048 x 1280,2304 x 1296,2560 x 1440,2688 x 1520
Video recording	Y
Image quality adjustment	Brightness,Contrast,Mirror,Saturation,Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Back Light Compensation (BLC)	Y
Highlight Compensation (HLC)	Y
Digital Wide Dynamic Range (DWDR)	Y
Built-in speaker(s)	Y
Audio system	2-way
Audio input channels	1.0
Audio output channels	1.0
Audio formats supported	G.711 A-law
Sample rate	8
Built-in microphone	Y
Number of microphones	1
Bit rate range	0 - 64
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Live view	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Built-in siren	Y
Password protection	Y
Video motion detection	Y
IP address filtering	Y
HTTPS encryption	Y
Detection distance	200
Alert notification type	Push notification
Intelligent Video Surveillance (IVS) system features	Abnormal sound detection,Crossing line,Human detection,Intrusion,Line crossing detection,Moving object,Region entrance detection,Region exiting detection,Scene change,Vehicle detection
Motion sensor	Y
Mirror	Y
Human and vehicle targets classification	Y
Digest authentication	Y
Cloud-managed	Y
Web-based management	Y
Web browser	Y
Reset button	Y
Power source type	DC,PoE
Power consumption (max)	10.8
Power consumption (Power over Ethernet (PoE))	12
DC output voltage	12
Operating temperature (T-T)	-30 - 60
Storage temperature (T-T)	-40 - 60
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Width	129.9
Depth	129.9
Height	102.5
Weight	775
Package type	Box
Number of cameras	1
Manual	Y
