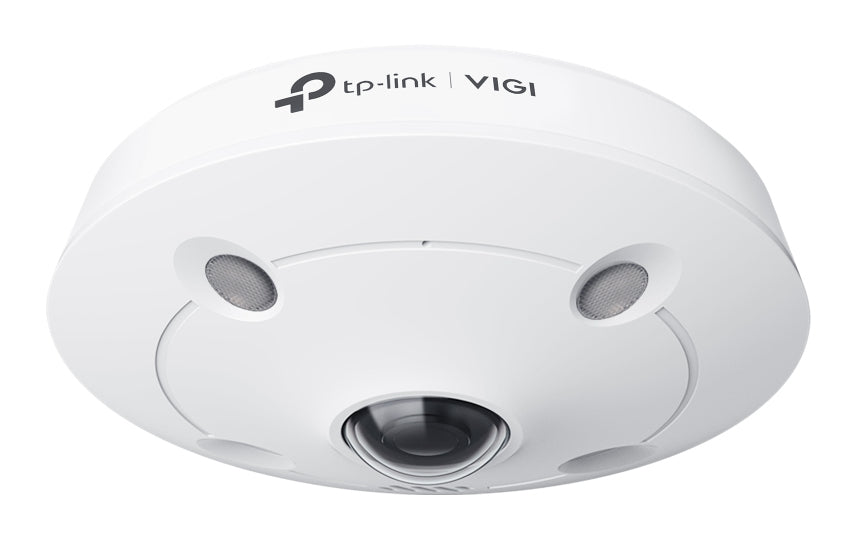

TP-Link InSight S655I IP security camera Indoor 2560 x 1920 pixels Ceiling/wall - INSIGHT S655I

360° Coverage with 4-in-1 Cameras
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.

Multiple Display Modes
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

• 5MP Super-High Definition and IR Night Vision
• 360° Coverage without Blind Spots
• Supports Multiple Display Modes△ and ePTZ
• Supports Ceiling Mount / Wall Mount / Pendant Mount§
• Smart Detection
• Smart Video Enhancement Technology
• Built-In Microphone & Speaker
• IP67 Waterproof and IK10 Vandal-Proof
• H.265+ Compression Technology
• Suitable for Small Indoor Areas like Retail Shops and Offices

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Dynamic range	120
Certification	CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF
Mounting type	Ceiling/Wall
Product colour	White
Housing material	Metal
Protection features	Weatherproof
International Protection (IP) code	IP67
IK code	IK10
Weatherproof	Y
Minimum illumination	0
Lens viewing angle, horizontal	180
Lens viewing angle, vertical	180
Lens viewing angle, diagonal	180
Camera shutter speed	1/3 - 1/10000
Number of Privacy masking areas	4
Sensor type	CMOS
Optical sensor size	1/2.7
Progressive scan	Y
Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	52
Digital Wide Dynamic Range (DWDR) (panoramic camera)	Y
Detect distance	28.8
Observe distance	12
Recognize distance	5.7
Maximum aperture number	2
Identify distance	2.8
Fixed focal length	1.44
Night vision	Y
Night vision distance	10
LED type	IR
Number of illumination LEDs	4
Infra-red wavelength	850
Maximum resolution	2560 x 1920
Total megapixels	5
Video compression formats	H.264,H.264+,H.265,H.265+
Supported graphics resolutions	320 x 240,640 x 480 (VGA),1280 x 960,2048 x 1536 (QXGA),2560 x 1920
Frame rate	30
Video streaming	Y
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	64 Kbps to 6 Mbps
Back Light Compensation (BLC)	Y
Highlight Compensation (HLC)	Y
Digital Wide Dynamic Range (DWDR)	Y
Region of Interest (ROI) encoding	Y
Smart IR	Y
Built-in speaker(s)	Y
Audio system	2-way
Sample rate	8
Signal-to-Noise Ratio (SNR)	52
Built-in microphone	Y
Number of microphones	1
Bit rate range	0 - 64
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Number of simultaneous live view channels	6
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512
Ethernet LAN (RJ-45) ports	1
Password protection	Y
Video motion detection	Y
IP address filtering	Y
HTTPS encryption	Y
Alert notification type	E-mail,Push notification
Privacy protection	Y
Motion sensor	Y
Digest authentication	Y
Cloud-managed	Y
Web browser	Y
Reset button	Y
Power source type	DC,PoE
Power consumption (max)	11.76
Power consumption (Power over Ethernet (PoE))	12.14
DC output voltage	12
Operating temperature (T-T)	-30 - 60
Storage temperature (T-T)	-40 - 60
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Height	56
Diameter	132
Weight	440
Number of cameras	1
Lens mount interface	M12
Client interoperability	Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
