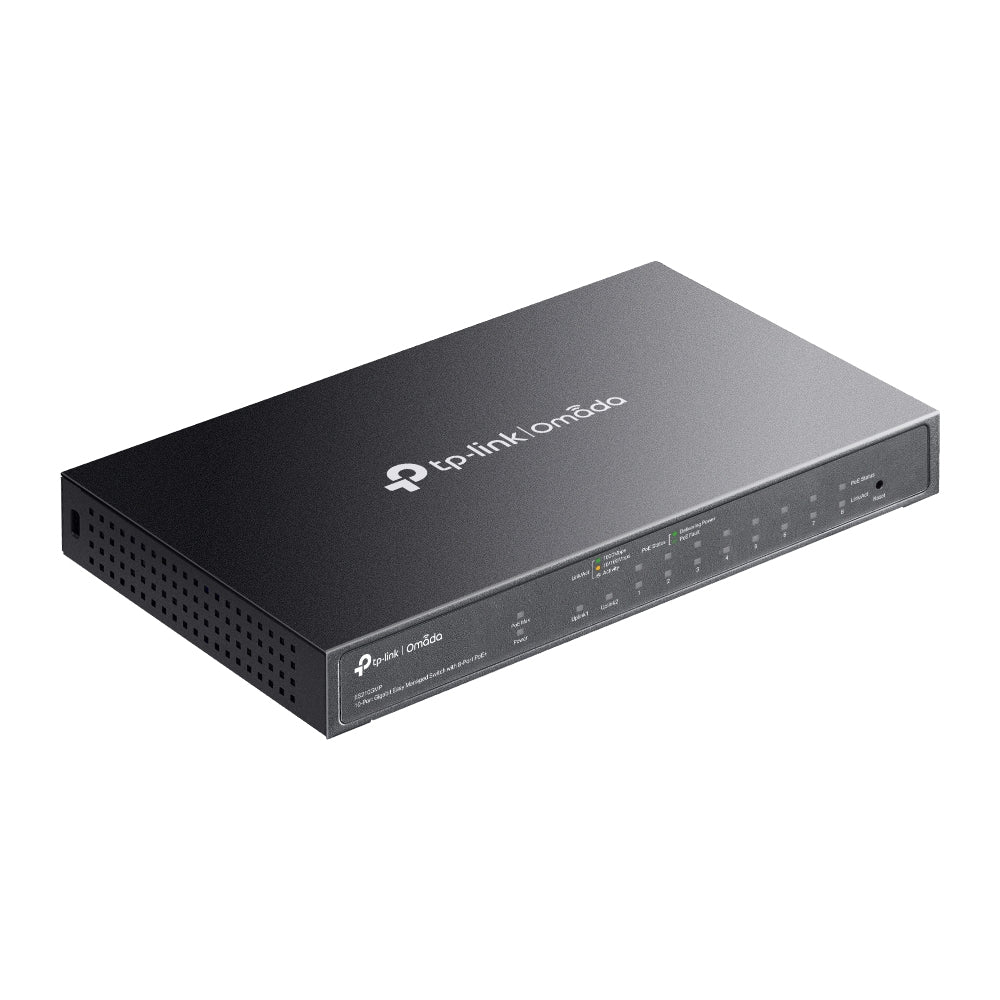

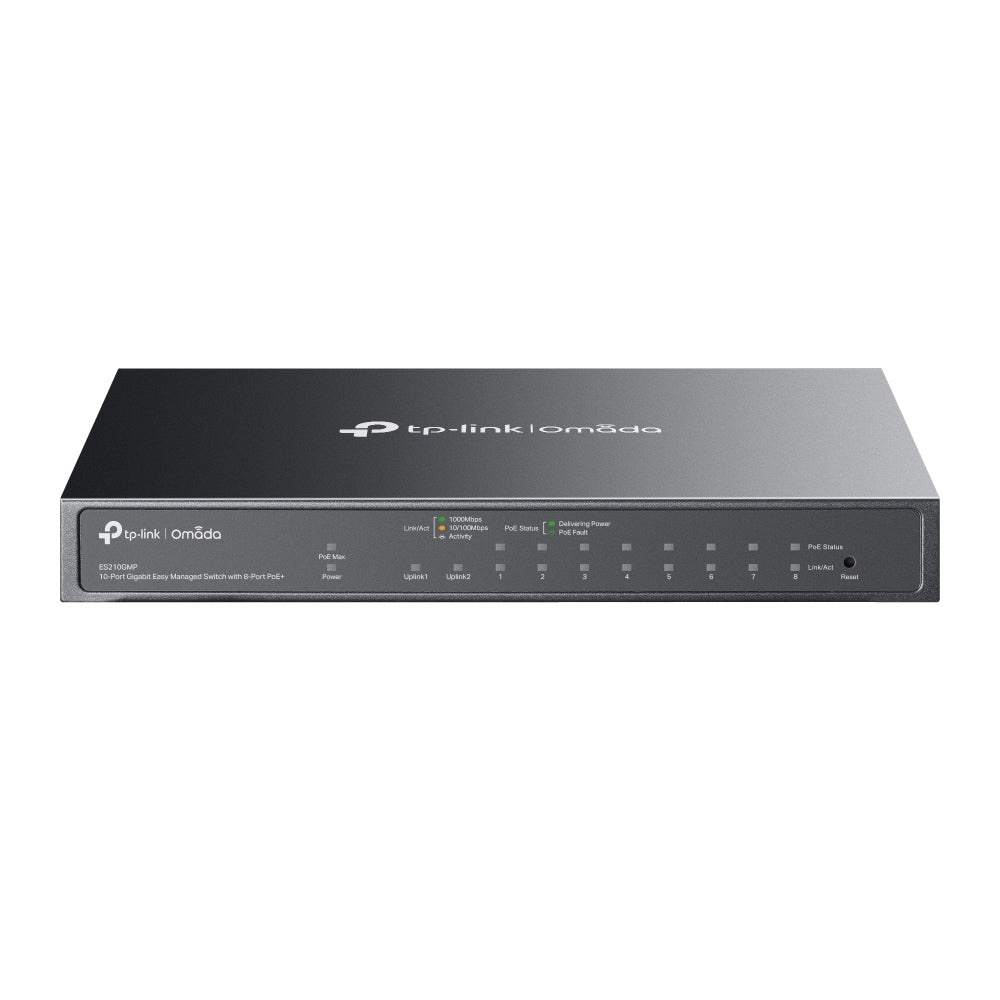

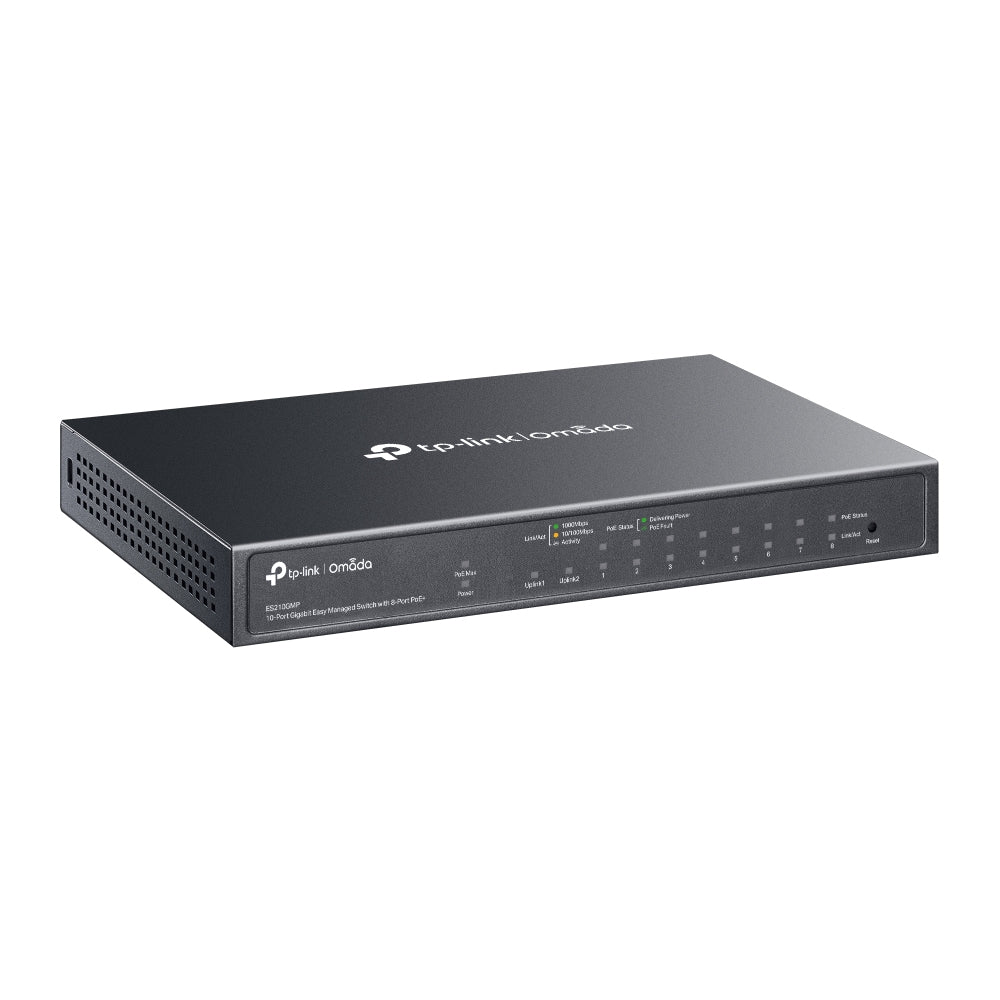

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ - ES210GMP

Omada 10-Port Gigabit Easy Managed
Switch with 8-Port PoE+

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription

• 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
• 123W Power Budget, with up to 30W for each PoE port
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app
• Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation

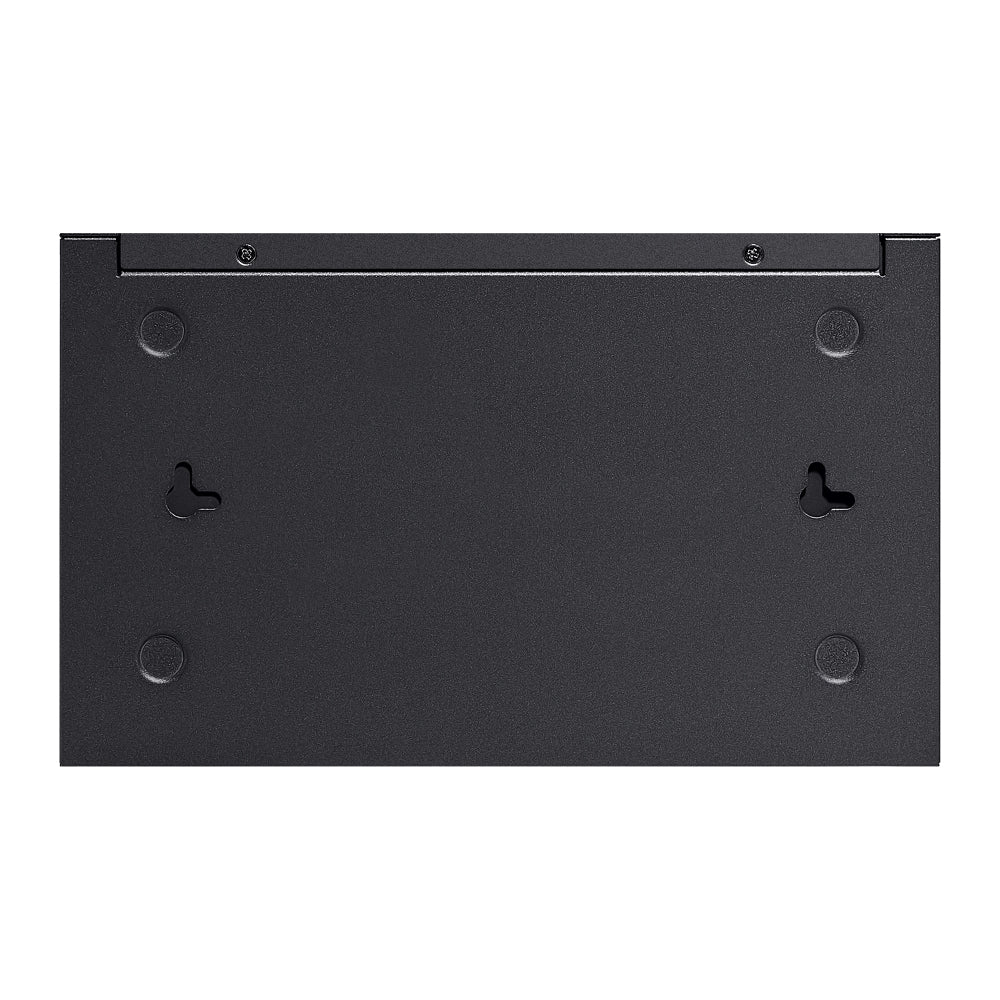

• Durable metal casing and desktop/wall mounting design

Switch type	Managed
Quality of Service (QoS) support	Y
Cloud-managed	Y
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1
Networking standards	IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
10G support	N
Port mirroring	Y
Flow control support	Y
Link aggregation	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
VLAN support	Y
Virtual LAN features	MTU VLAN,Port-based VLAN,Tagged VLAN
Transmission distance (max)	0.25
MAC address table	8000
Switching capacity	20
Forwarding rate	14.88
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	15
Packet buffer memory	4
DHCP features	DHCP client
IGMP snooping	Y
Product colour	Black
Reset button	Y
Wall mountable	Y
Fanless	Y
Power source	DC
Power supply included	Y
DC input voltage	53.5
Input current	2.43
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	123
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Width	209
Depth	126
Height	26
Cables included	AC
User guide	Y
Package type	Box
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
