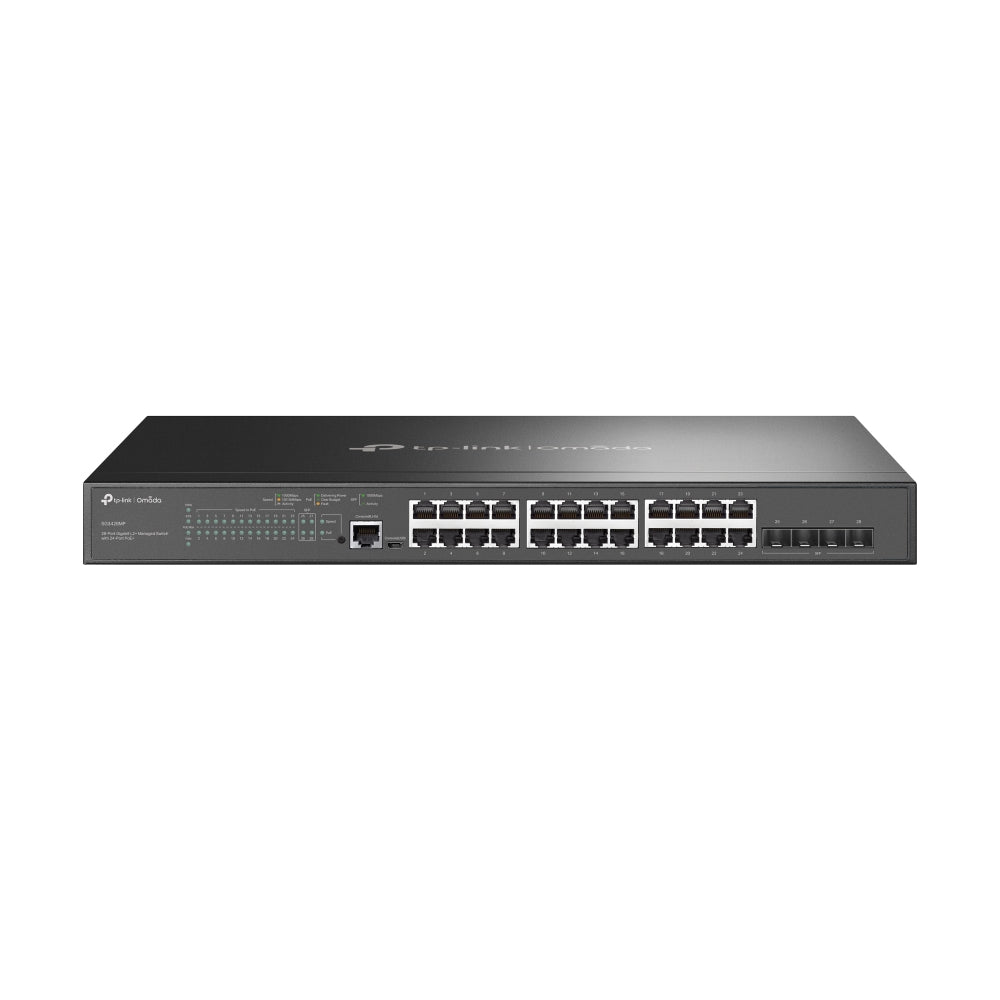

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ - SG3428MP

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

• 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
• 384 W total PoE budget with up to 30 W PoE output per port
• Centralized cloud management via the web or the Omada app
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
ARP inspection	Y
Configuring Location Settings (CLI)	Y
System event log	Y
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Networking standards	IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
10G support	N
Copper ethernet cabling technology	10BASE-T,1000BASE-T
Port mirroring	Y
IP routing	Y
Flow control support	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Spanning tree protocol	Y
Head-of-line (HOL) blocking	Y
Ethernet LAN data rates	10,100,1000
Active link detection	Y
VLAN support	Y
Virtual LAN features	MAC address-based VLAN,Port-based VLAN,Private VLAN,Tagged VLAN,Voice VLAN
Number of VLANs	4000
MAC address table	16000
Switching capacity	56
Forwarding rate	41.66
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	12
DHCP features	DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	SSH,SSL/TLS
MAC address filtering	Y
Static port security	Y
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
IP-MAC-Port binding	Y
Authentication	MAC-based authentication,Port-based authentication
Multicast support	Y
Management protocols	SNMPv1/v2c/v3, LLDP/LLDP-MED
GARP VLAN Registration Protocol (GVRP)	Y
Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Number of fans	2
Export Control Classification Number (ECCN)	EAR99
Power source	AC
Power supply included	Y
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (max)	480.1
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30
Total Power over Ethernet (PoE) budget	384
Operating temperature (T-T)	0 - 45
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	1637.14
Width	440
Depth	330
Height	44
Quick start guide	Y
User guide	Y
Certification	CE, FCC, RoHS
