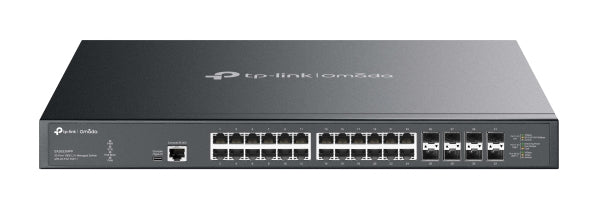

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ - SX3832MPP

- Empowering the Real Wi-Fi 6 and Wi-Fi 7 with 10G PoE++ Ports
- Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

• 24× 1/2.5/5/10 Gbps RJ45 PoE++ ports
• 8× 1/10 Gbps SFP+ slots
• 770 W total PoE budget, up to 90 W PoE out per port**
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Y
Web-based management	Y
Cloud-managed	Y
ARP inspection	Y
Unified static configuration	Y
Configuring Location Settings (CLI)	Y
System event log	Y
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity	8
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	24
2.5G Ethernet (copper) ports quantity	24
10G Ethernet (copper) ports quantity	24
Console port	RJ-45/USB Type-C
Networking standards	IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1af,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3x
10G support	Y
Port mirroring	Y
Link aggregation	Y
Broadcast storm control	Y
Rate limiting	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
Auto-negotiation	Y
Ethernet Ring Protection Switching (ERPS)	Y
Address Resolution Protocol (ARP) entries (max)	510
IPv4 routes	48
IPv6 routes	48
VLAN support	Y
Virtual LAN features	MVRP,Private VLAN,SSID-based VLAN assignment,VLAN Identifier ( VLAN ID),Voice VLAN
Number of VLANs	4000
MAC address table	32000
Switching capacity	640
Forwarding rate	240
Number of queues	8
Static route	Y
Jumbo frames support	Y
Jumbo frames	9
Packet buffer memory	24
DHCP features	DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping
Access Control List (ACL)	Y
IGMP snooping	Y
Security algorithms	HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSL/TLS
Static port security	Y
Authentication	Guest VLAN
DoS attack prevention	Y
Authentication type	AAA,RADIUS,TACACS+
CPU defense	Y
Queue scheduling algorithms	Strict Priority Queue (SPQ),WRR+SP,Weighted Round Robin (WRR)
Multicast support	Y
Multicast Listener Discovery (MLD) snooping	Yes
Device link detection protocol (DLDP)	Y
IPv4 & IPv6 features	Dual stack IPv4/IPv6,IPv6 SNMP,IPv6 SSH,IPv6 TFTP,IPv6 Telnet,IPv6 ping,IPv6 tracert
Rack mounting	Y
Stackable	Y
Form factor	DIN rail
Product colour	Black
Housing material	Metal
LED indicators	Y
Number of fans	4
Firmware upgradeable	Y
Fanless	N
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Power source	AC
Power supply included	N
AC input voltage	110 - 240
AC input frequency	50/60
Power consumption (typical)	953.7
Power consumption (max)	1010.2
Power saving mode (EEE)	Y
Power over Ethernet (PoE)	Y
Power over Ethernet 4PPoE (PoE++) ports quantity	24
Power over Ethernet (PoE) power per port	90
Total Power over Ethernet (PoE) budget	770
Packaging content	Console Cable
Operating temperature (T-T)	-5 - 45
Storage temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Heat dissipation	3444.7
Width	440
Depth	330
Height	44
Cables included	Power
Quick start guide	Y
Rack mount kit	Y
Mounting brackets included	Y
Rubber feet	Y
Screws included	Y
Sustainability organizations	AccountAbility
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
