TP-LINK  |  SKU: SG3452XP

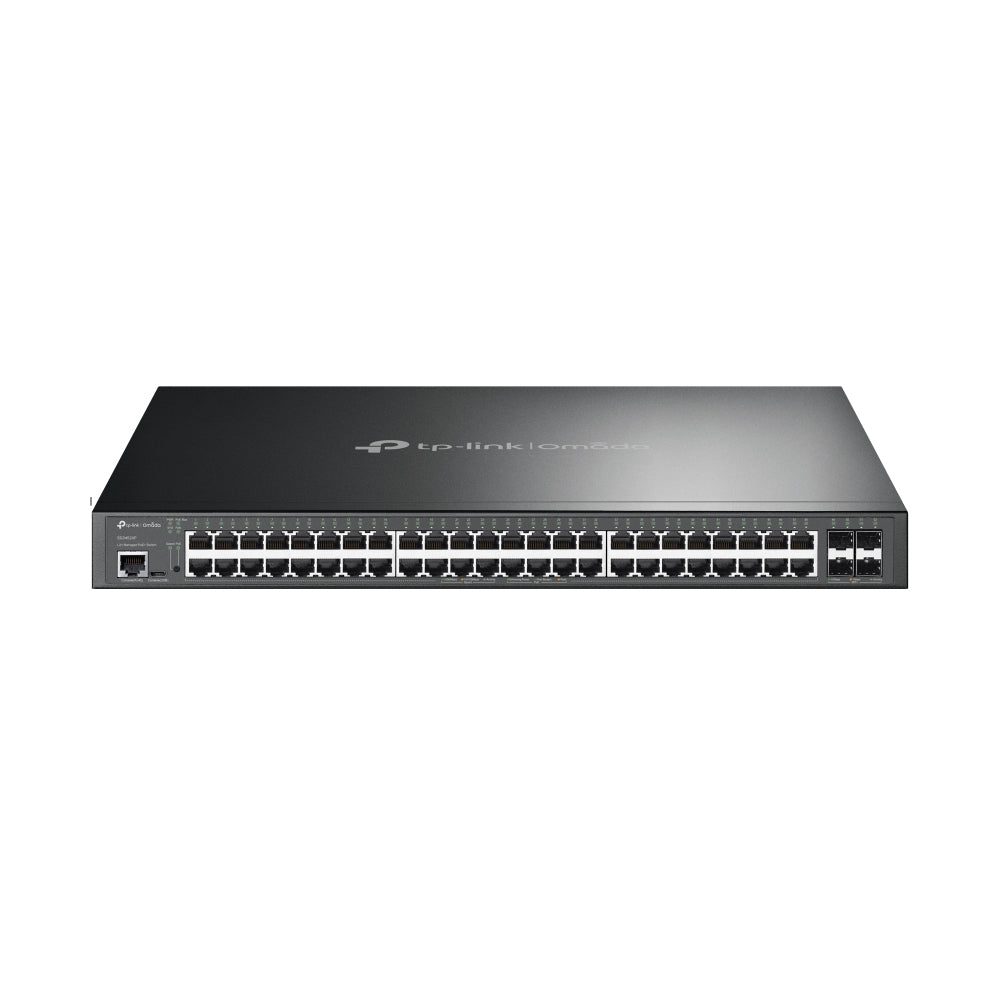

TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+ - SG3452XP

$881.32
Shipping calculated at checkout.

Care information

Manufacture Warranty

Delivery and Shipping

Standard Shipping: 3-5 Business days

Express Shipping: 1-2 Business days

ShareThis

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 4× 10 Gbps SFP+ slots
  • 48× Gigabit 802.3af/at PoE+ ports
  • 500 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Y
Web-based management Y
Cloud-managed Y
ARP inspection Y
Configuring Location Settings (CLI) Y
System event log Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Console port RJ-45/Micro-USB
Power connector AC-in jack
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
10G support Y
Port mirroring Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Rate limiting Y
Spanning tree protocol Y
Head-of-line (HOL) blocking Y
VLAN support Y
MAC address table 16000
Switching capacity 176
Forwarding rate 130.9
Store-and-forward Y
Jumbo frames support Y
Jumbo frames 9000
Packet buffer memory 12
DHCP features DHCP client,DHCP relay,DHCP server
Access Control List (ACL) Y
IGMP snooping Y
MAC address filtering Y
Static port security Y
SSH/SSL support Y
BPDU filtering/protection Y
IP-MAC-Port binding Y
Authentication Auto VLAN,Guest VLAN
Multicast support Y
Rack mounting Y
Form factor 1U
Product colour Black
Reset button Y
LED indicators Y
Number of fans 3
Power source AC
Power supply included Y
AC input voltage 100 - 240
AC input frequency 50/60
Power consumption (max) 635.7
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 48
Power over Ethernet (PoE) power per port 30
Total Power over Ethernet (PoE) budget 500
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -40 - 70
Operating relative humidity (H-H) 10 - 90
Storage relative humidity (H-H) 5 - 90
Heat dissipation 2169.2
Width 440
Depth 330
Height 44
Cables included AC
Quick start guide Y
Certification CE, FCC, RoHS
