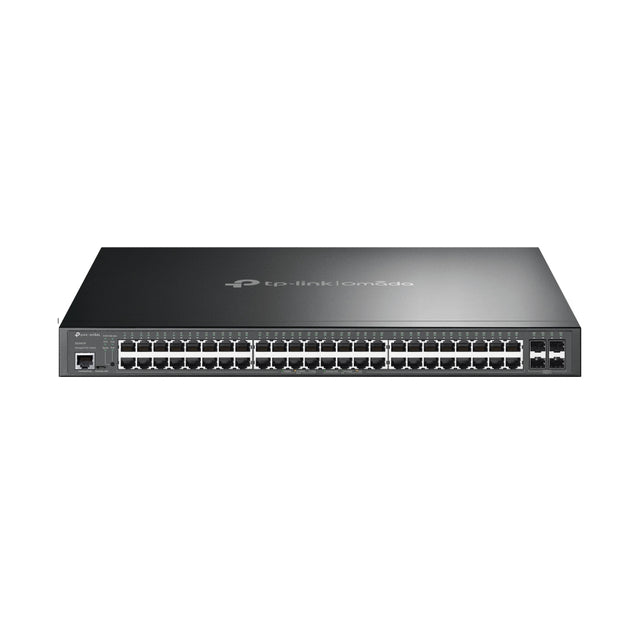

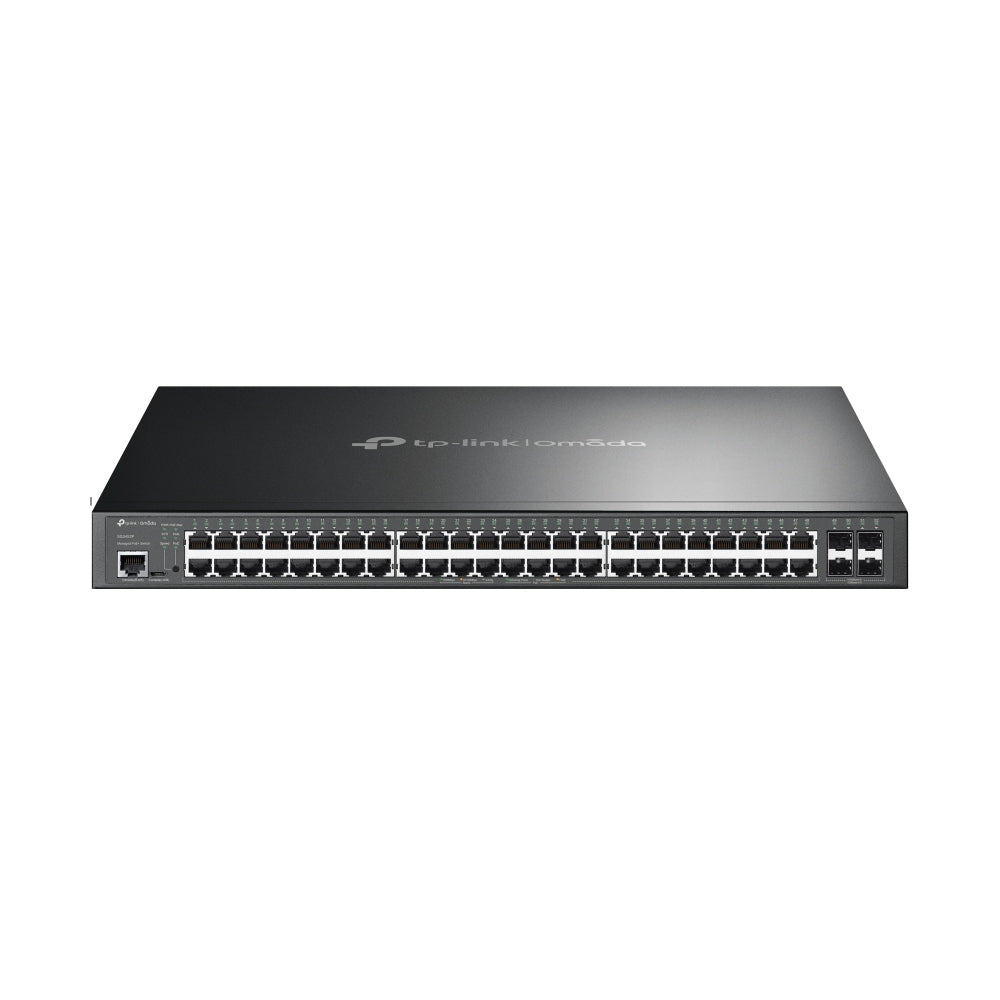

TP-Link Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ - SG3452P
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
TP-Link Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ ...
Description
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 48× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
- 384 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rackmountable design
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45/micro-USB |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x |
| 10G support | N |
| Port mirroring | Y |
| IP routing | Y |
| Policy-based routing | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Active link detection | Y |
| VLAN support | Y |
| Virtual LAN features | MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Number of VLANs | 4000 |
| MAC address table | 16000 |
| Switching capacity | 104 |
| Forwarding rate | 77.38 |
| Store-and-forward | Y |
| Static route | Y |
| Number of static routes | 48 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| Password protection | Y |
| Multicast support | Y |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Y |
| LED indicators | Y |
| Number of fans | 3 |
| Power source | AC |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 464.2 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 384 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 1584.08 |
| Width | 440 |
| Depth | 330 |
| Height | 44 |
| Cables included | AC |
| Quick start guide | Y |
| Manual | Y |
| Package type | Box |
