TP-Link Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge - EAP211-BRIDGE KIT

EAP211-Bridge KIT
Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 0.62 mi (1 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing
- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management

• Up to 0.62 mi (1 km) Transmission Distance
• Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever
• Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go-ideal for quick deployments
• Unique Design for Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing. Simply dial the role switch and press the pair button-no portal login needed. Supports up to 1-to-4 multi-bridge connections
• App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification
• Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply system)

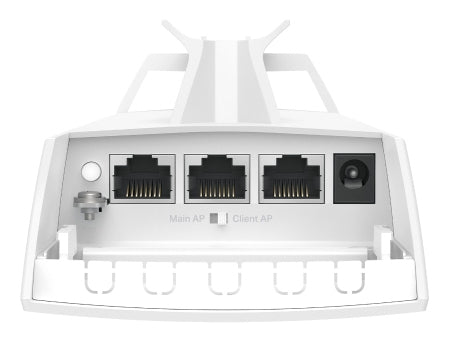

• 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
• Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C
• Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App

Maximum data transfer rate	867
Maximum transfer distance	1000
Antenna design	Internal
Antenna type	2x2
Antenna gain level (max)	7
Wi-Fi	Y
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867
Frequency band	5
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	3
DC-in jack	Y
Security algorithms	SNMP,SNMPv2,SNMPv3,SSH
MAC address filtering	Y
Web-based management	Y
Product type	Network bridge
Mounting type	Pole
Product colour	White
LED indicators	Power
Reset button	Y
International Protection (IP) code	IP65
Quality of Service (QoS) support	Y
Power source type	DC,PoE
DC input voltage	12
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) voltage	24
Operating temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
Certification	CE, FCC, RoHS
Width	224
Depth	79
Height	60
PoE+ Injector(s)	Y
Cables included	AC
