TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge - EAP215-BRIDGE KIT

EAP215-Bridge KIT
Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

- 802.11ac, up to 867 Mbps on 5 GHz
- Up to 3.1 mi (5 km) Long-Range Transmission
- Auto-Pairing and Multi-Bridge Auto-Pairing
- App-Guided Alignment and Speed Testing

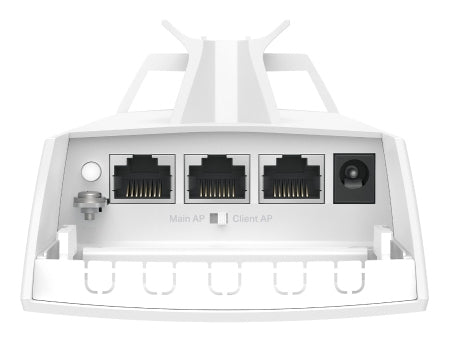

- 3× Gigabit Ethernet Ports
- 802.3af PoE & DC Power Supply & Passive PoE
- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.
- Remote Monitoring & Management

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
• Ideal for long-range wireless transmission up to 5 km
• Auto-pairing and agile LEDs for efficient deployment
• 3 × Gigabit Ethernet ports for more high-speed IP camera connections
• Supports Omada SDN for remote and centralized management
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
• Supports Passive PoE for flexible deployment (adapter included)

Maximum data transfer rate	867
Maximum transfer distance	5000
Antenna design	Internal
Antenna type	2x2
Antenna gain level (max)	14
Wi-Fi	Y
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867
Frequency band	5
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11be,IEEE 802.11g,IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	3
DC-in jack	Y
Security algorithms	SNMP,SNMPv2,SNMPv3,SSH
MAC address filtering	Y
Web-based management	Y
Product type	Network bridge
Mounting type	Pole
Product colour	White
LED indicators	Power
Reset button	Y
International Protection (IP) code	IP65
Quality of Service (QoS) support	Y
Power source type	DC,PoE
DC input voltage	12
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) voltage	24
Operating temperature (T-T)	-40 - 70
Operating relative humidity (H-H)	10 - 90
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
Certification	CE, FCC, RoHS
Width	224
Depth	79
Height	60
PoE+ Injector(s)	Y
Cables included	AC
