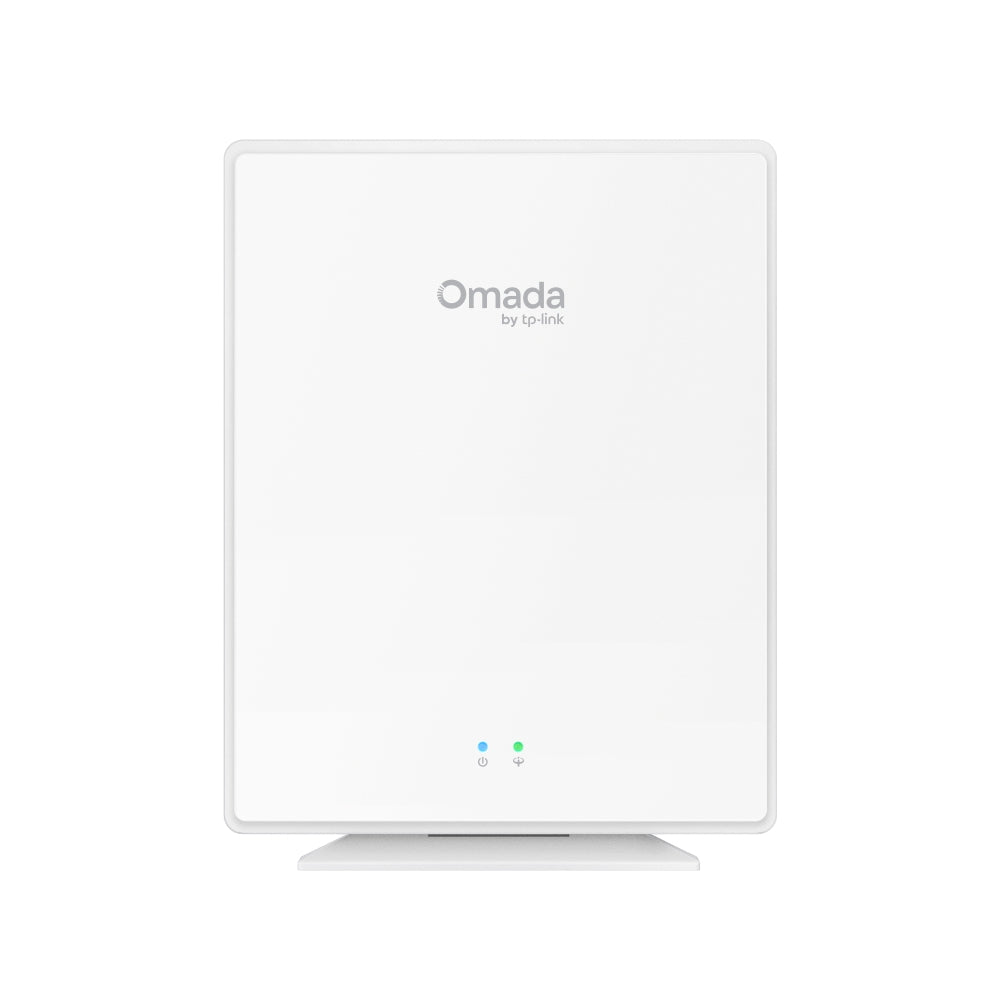

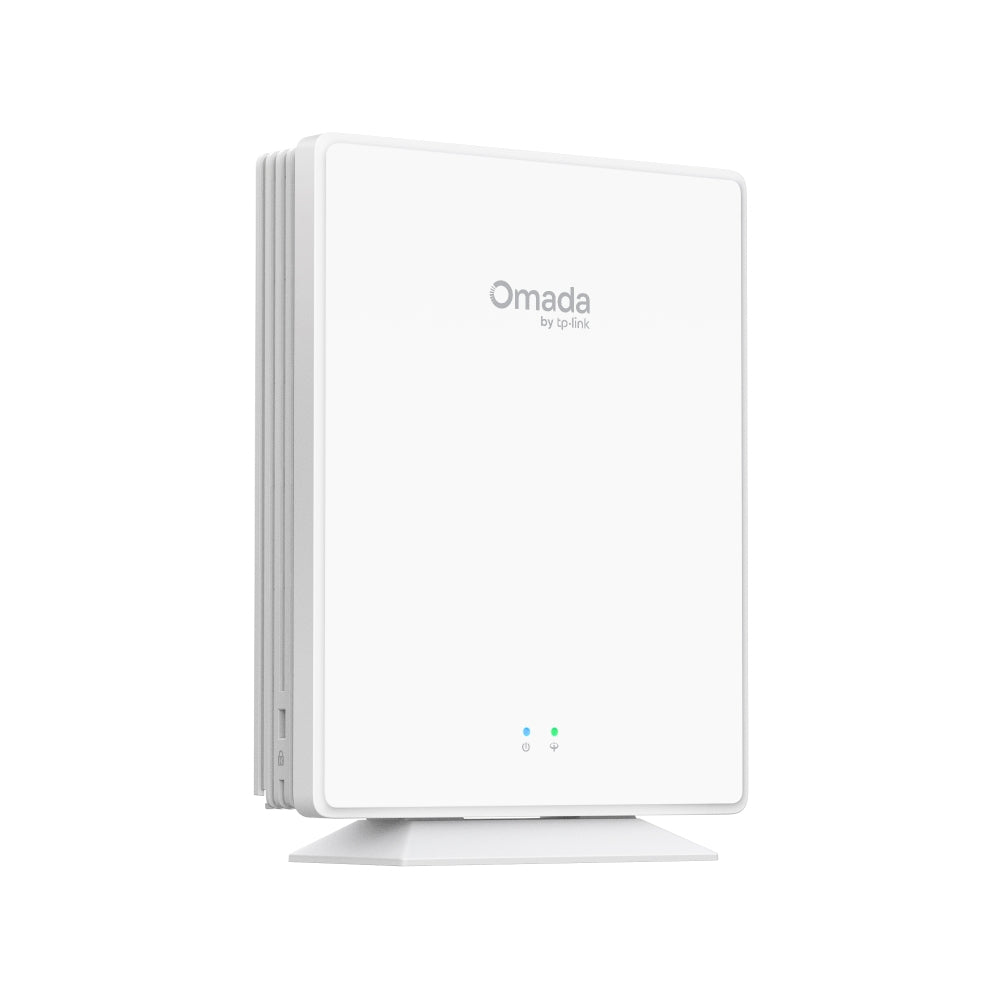

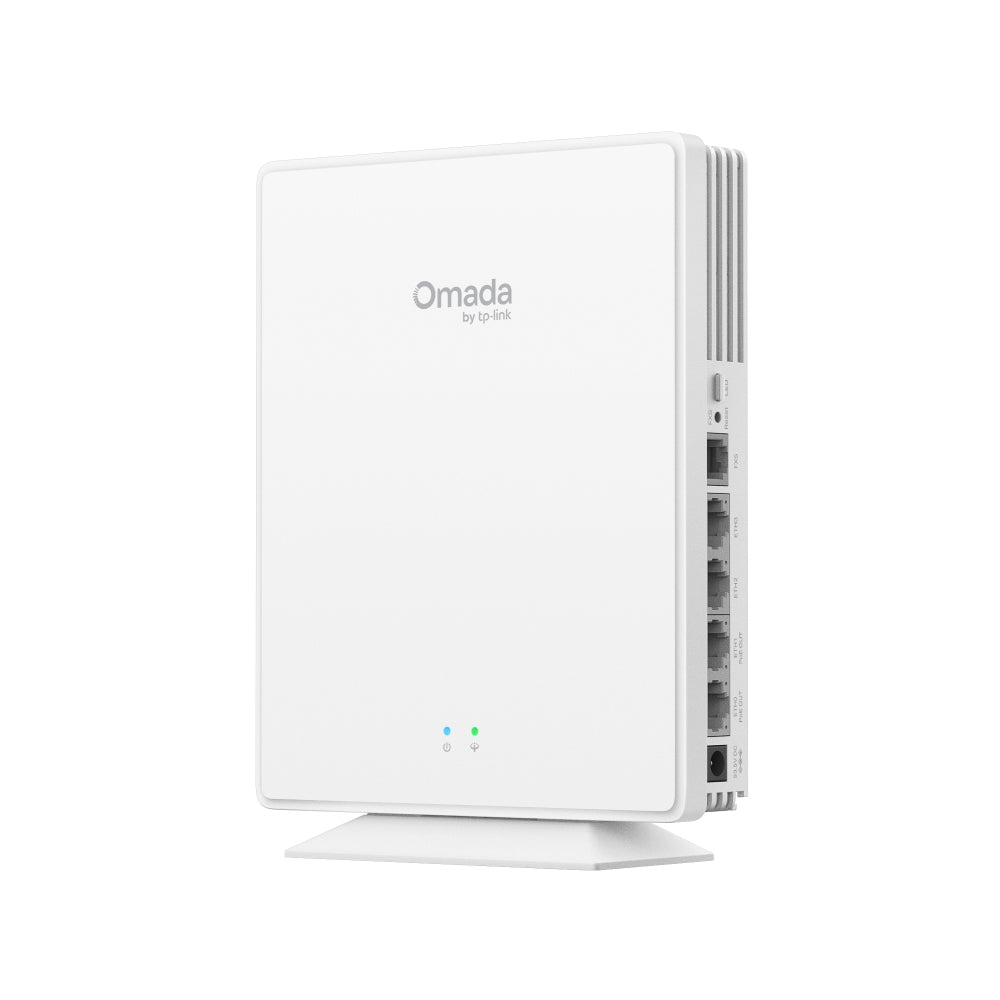

TP-Link Omada AX3000 3000 Mbit/s White Power over Ethernet (PoE) - EAP650GP-DESKTOP

Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.

One Fiber, Multiple Services
Connect a fiber optic cable to the EAP650GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.

△The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.

Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 3.0 Gbps.* Omada Mesh and 802.11k/v/r roaming ensure a consistently smooth and reliable connection.

• Seamless 3.0 Gbps Wi-Fi 6 Speeds: 2402 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†

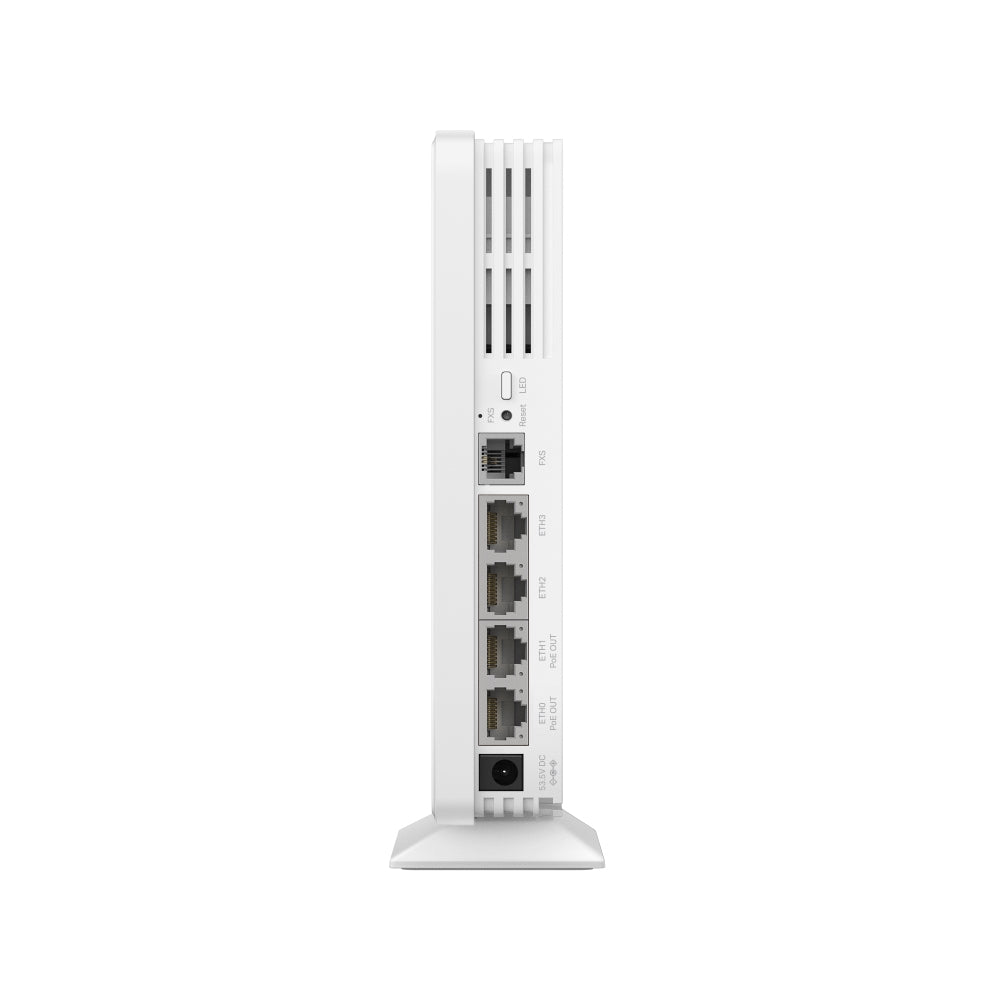

• Multiple Ports for More Devices: 1× GPON port & 4× GbE ports (two support PoE-out)
• One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption

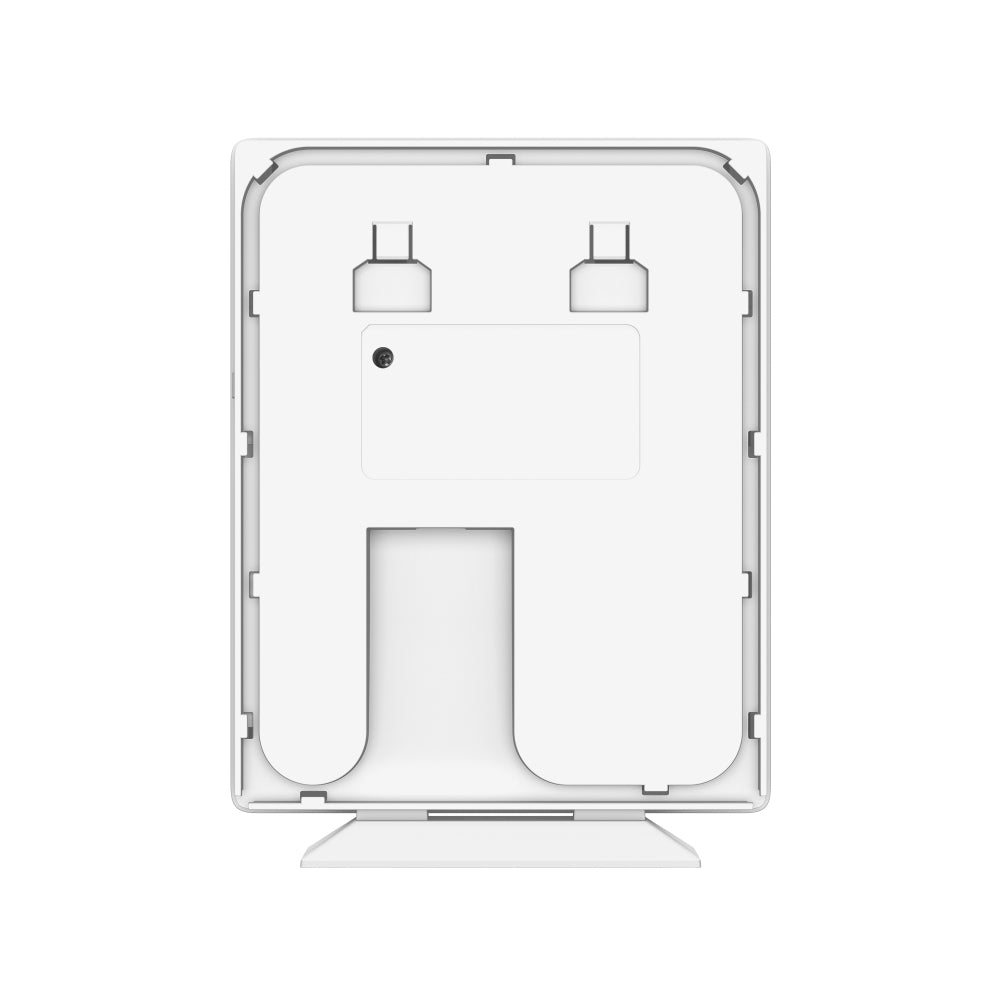

• High Flexibility: Support both desktop and wall-mounting setups
• Advanced Fueatures: Unified management for OLT^ and Omada devices, PPSK△, multiple portals, Omada mesh, and seamless roaming§

2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate	3000
Maximum data transfer rate (2.4 GHz)	574
Maximum data transfer rate (5 GHz)	2402
Frequency band	2.4 - 5
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.11ax
Automatic channel selection	Y
Automatic channel scanning	Y
MIMO	Y
MIMO type	Multi User MIMO
Virtual LAN features	SSID-based VLAN assignment
Rate limiting	Y
Band steering	Y
Airtime Fairness (ATF)	Y
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Transmitting power (FCC)	<26 dBm (2.4 GHz); <27 dBm (5 GHz)
Security algorithms	HTTPS,SNMP,SNMPv2,SNMPv3,WPA,WPA2,WPA3
Number of SSID supported	16
Web-based management	Y
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	0
DC-in jack	Y
Power over Ethernet (PoE)	Y
Placement	Desk
Product colour	White
Reset button	Y
LED indicators	Y
Antenna type	Internal
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Certification	CE, FCC, RoHS
Width	175
Depth	140
Height	33
Weight	511
Quantity per pack	5
Mounting kit	Y
Quick start guide	Y
Operating relative humidity (H-H)	0 - 40
Operating temperature (T-T)	10 - 90
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
