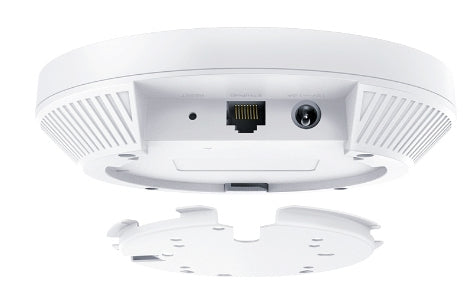

TP-Link Omada AX3000 Ceiling Mount WiFi 6 Access Point - EAP653

Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

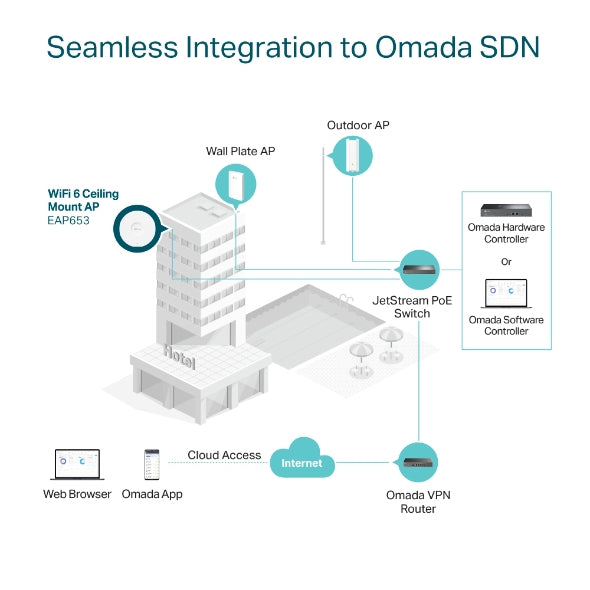

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

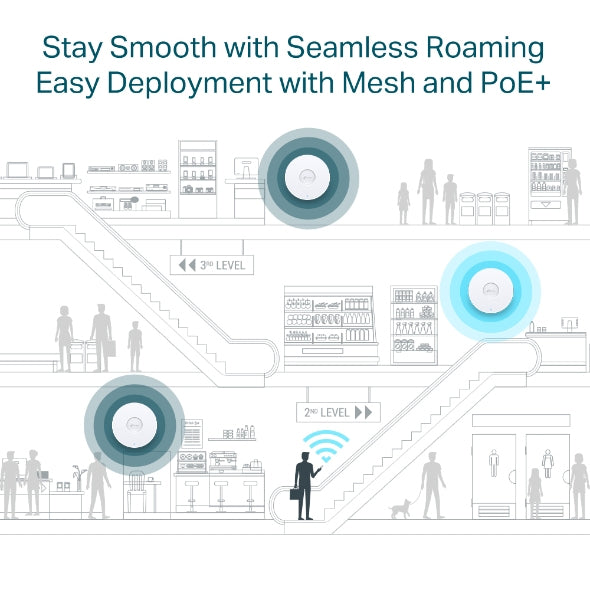

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

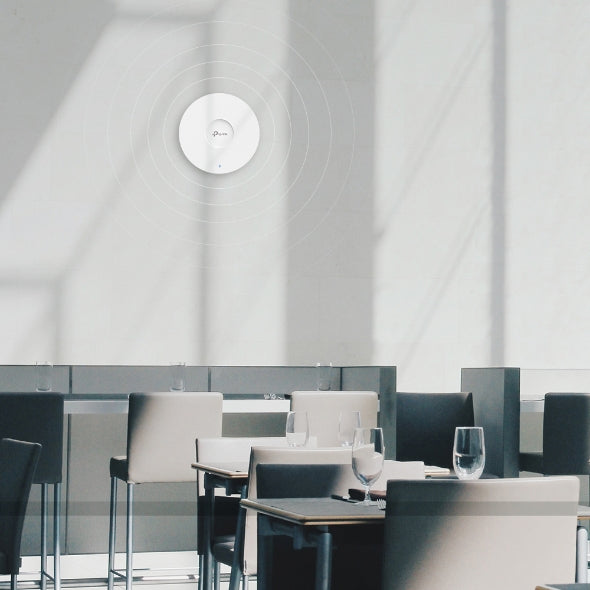

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
• Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
• 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
• PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations
• Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility

2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate	2976
Maximum data transfer rate (2.4 GHz)	574
Maximum data transfer rate (5 GHz)	2402
Ethernet LAN data rates	10,100,1000
Frequency band	2.4 - 5
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11h
Cabling technology	10/100/1000Base-T(X)
Number of users	250
Automatic channel selection	Y
Automatic channel scanning	Y
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Fit AP mode features	Mesh networking
VLAN support	Y
Rate limiting	Y
Flow control support	Y
Band steering	Y
Airtime Fairness (ATF)	Y
Quality of Service (QoS) support	Y
BeamForming	Y
Transmitting power (CE)	27
Transmitting power (FCC)	22
Security algorithms	HTTPS,SNMP,SNMPv2,SNMPv3,SSH,WPA,WPA2,WPA3
MAC address filtering	Y
Web-based management	Y
Syslog	Y
Firmware upgradeable	Y
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Y
Power over Ethernet (PoE)	Y
DC voltage range	12
Placement	Ceiling,Wall
Product colour	White
Reset button	Y
LED indicators	Y
Antenna type	Internal
Width	160
Depth	160
Height	33.6
Package type	Box
Quantity per pack	1
Mounting kit	Y
Quick start guide	Y
Operating relative humidity (H-H)	10 - 90
Operating temperature (T-T)	0 - 40
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
