TP-LINK | SKU:
DS108G
Sold out

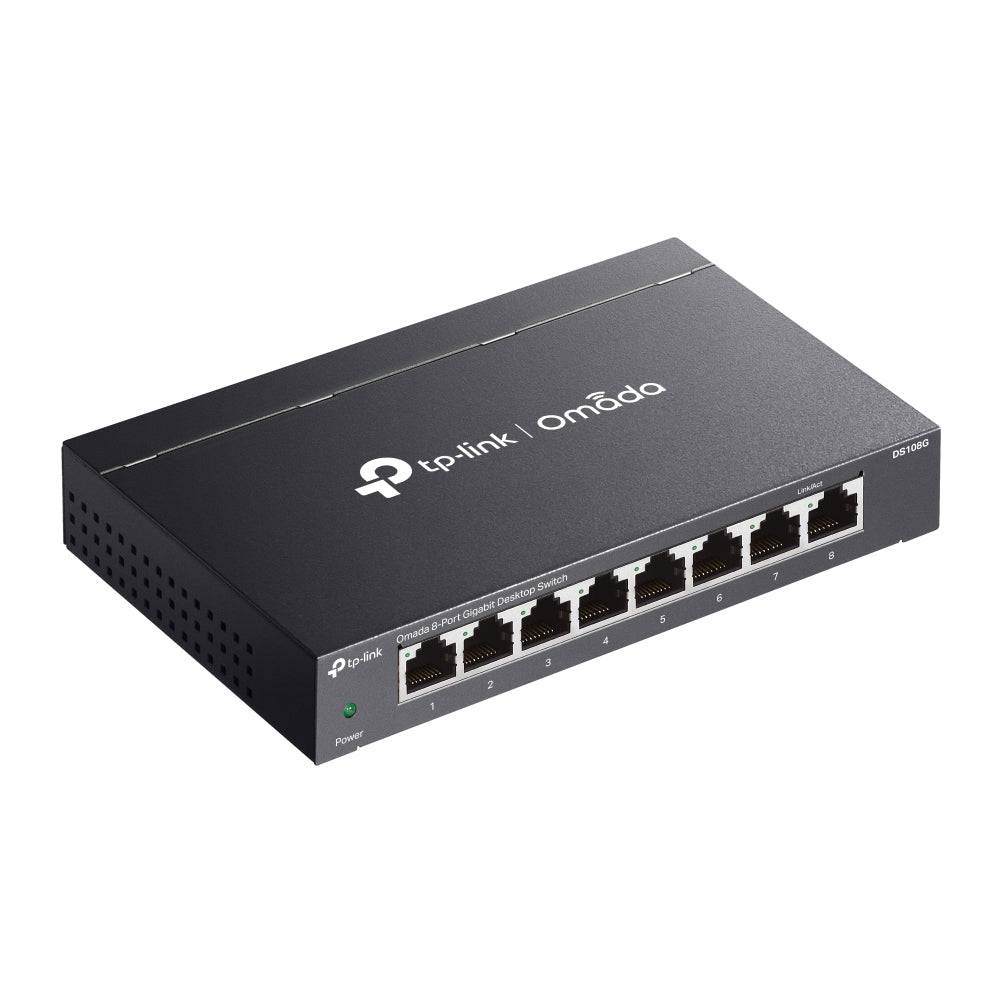

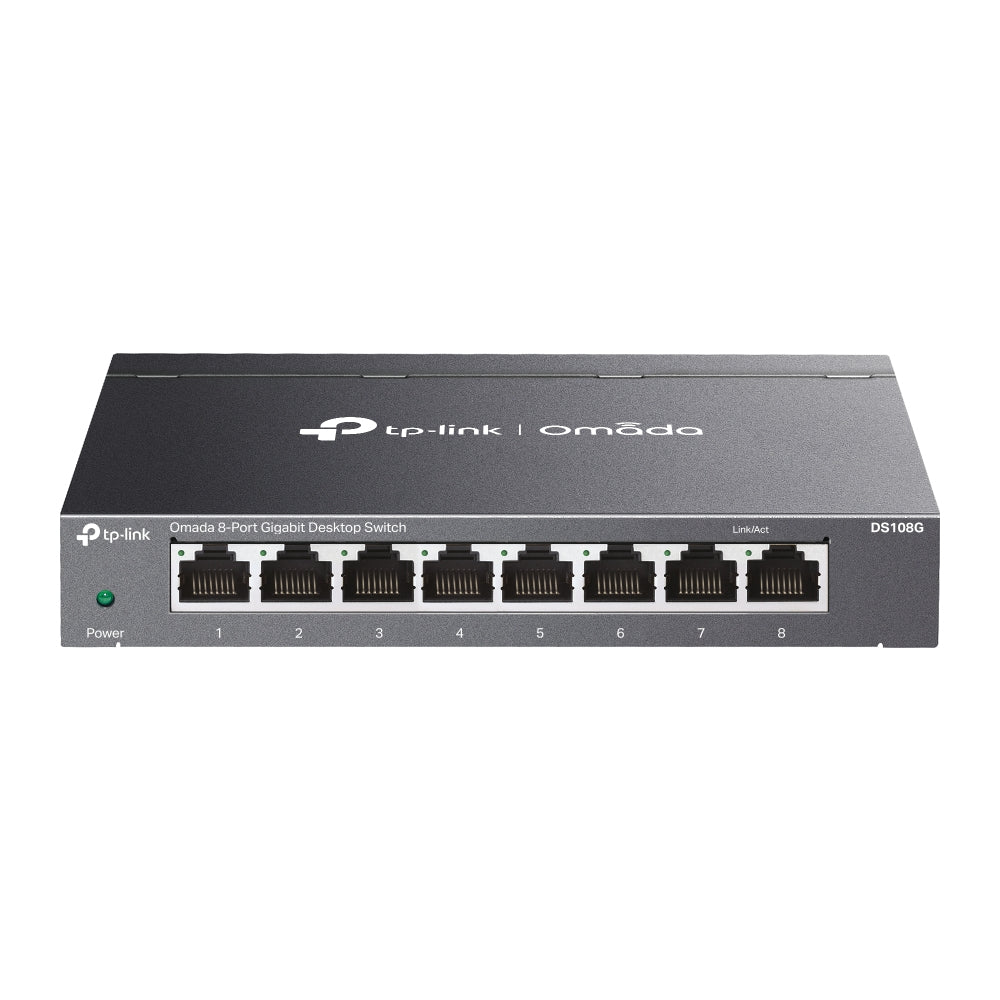

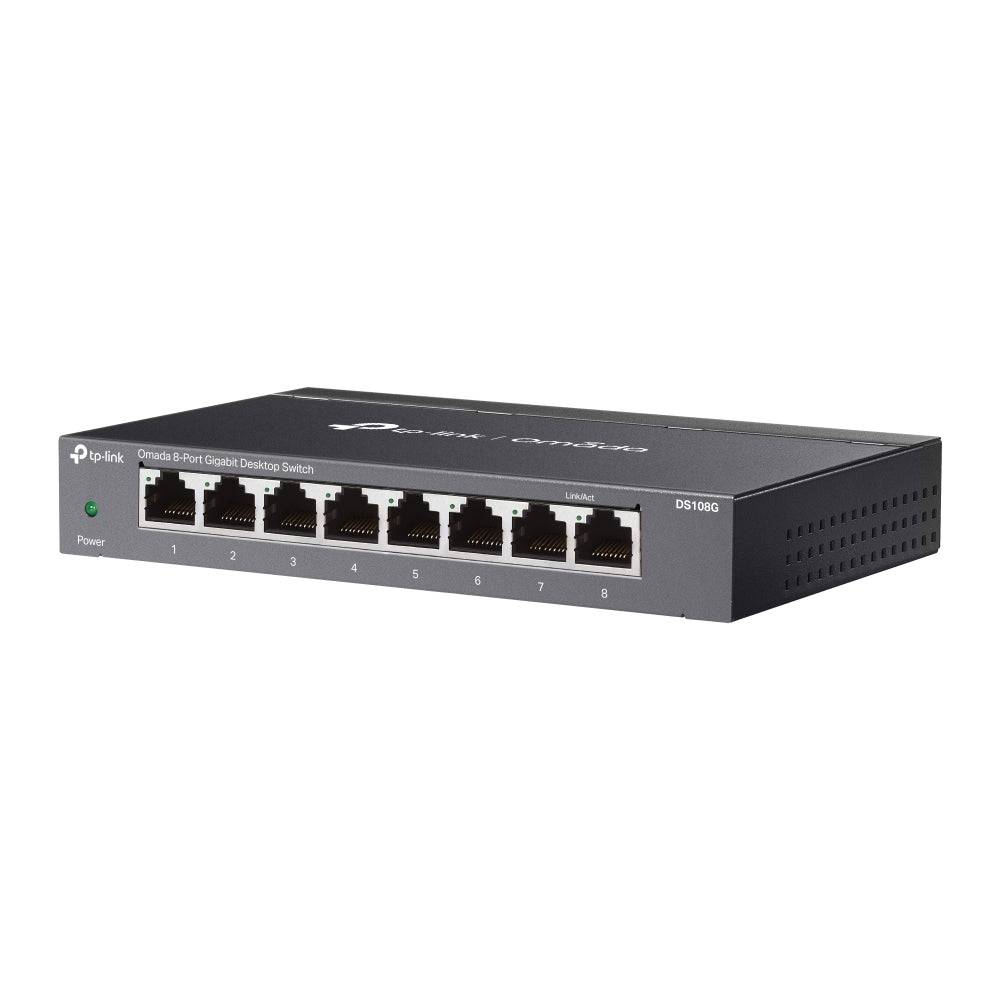

TP-Link Omada DS108G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black - DS108G
$27.63
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Description
Description
- 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer

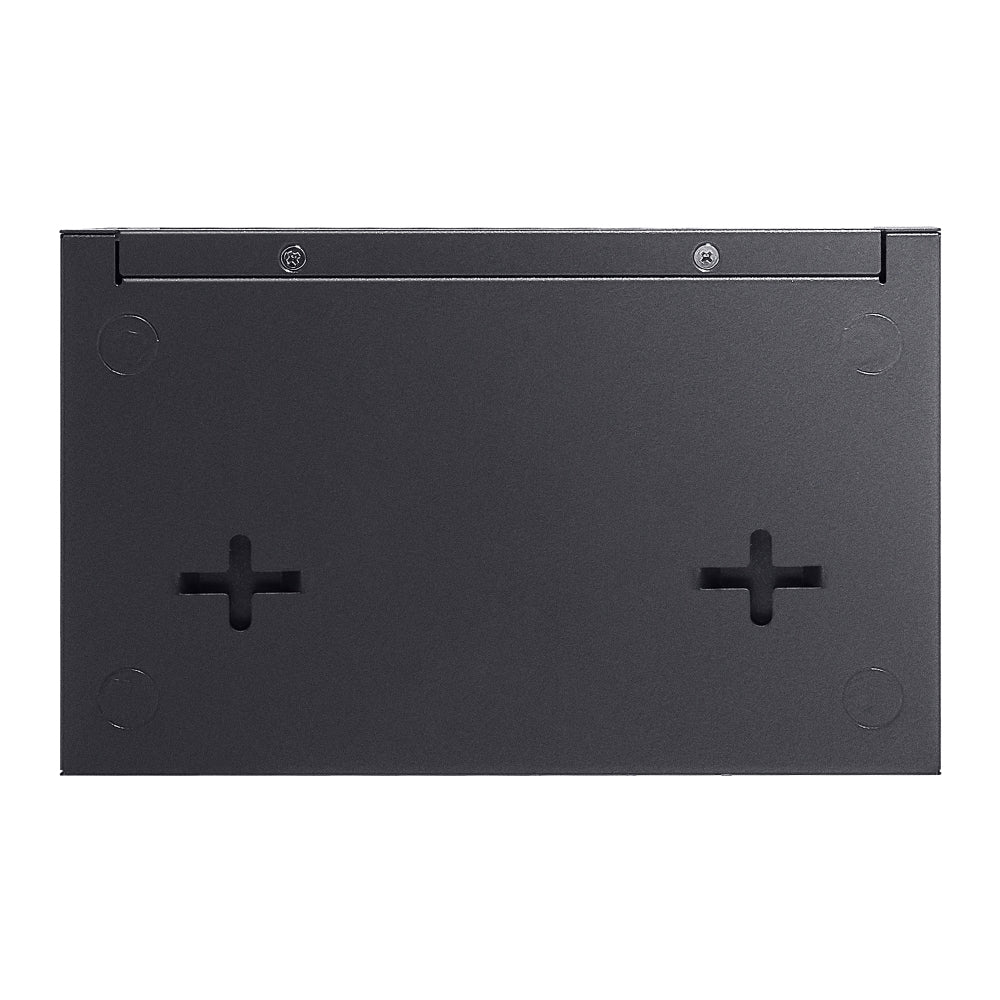

- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

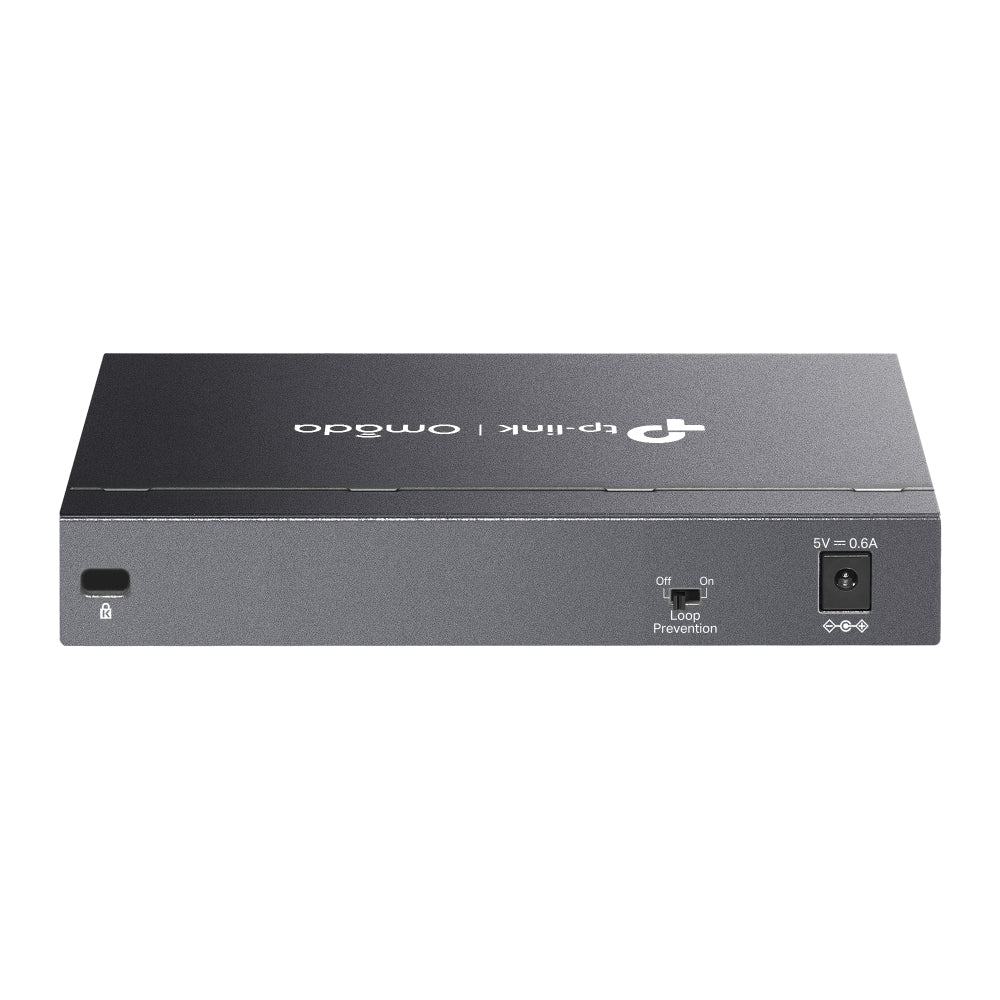

| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Auto-negotiation | Y |
| MAC address table | 4000 |
| Switching capacity | 16 |
| Forwarding rate | 11.9 |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 16 |
| IGMP snooping | Y |
| Loop protection | Y |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Y |
| LED indicators | Activity,Link,Power |
| Wall mountable | Y |
| Fanless | Y |
| Power source | DC |
| Power supply included | Y |
| DC input voltage | 5 |
| Input current | 0.6 |
| Power consumption (max) | 3.92 |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 13.37 |
| Width | 158 |
| Depth | 101 |
| Height | 25 |
| Cables included | Power |
| User guide | Y |
| Compliance certificates | CE,EAC,Federal Communications Commission (FCC),RoHS,UKCA |
