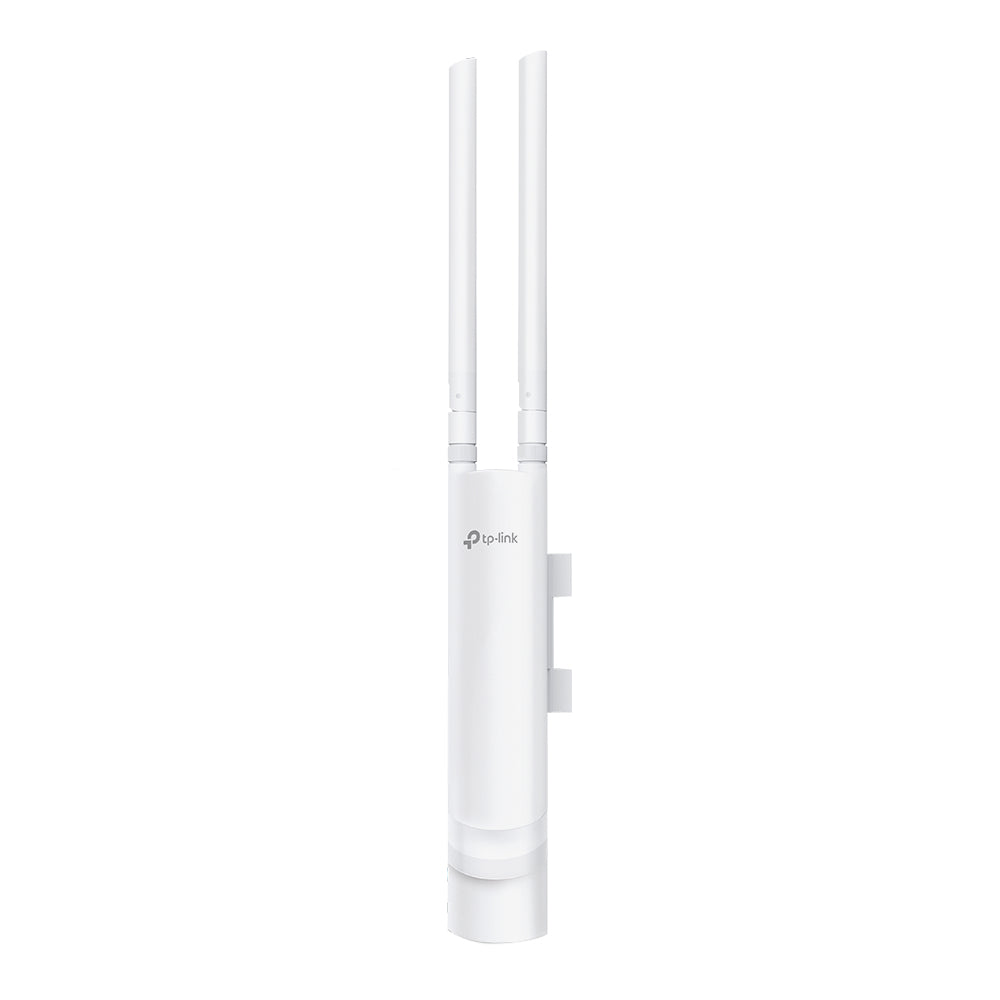

TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE) - EAP225-OUTDOOR

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

• Durable, weatherproof enclosure for outdoor Wi-Fi applications
• Up to 1200Mbps with 2×2 MIMO technology
• Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
• High transmission power and high gain antennas provide a long-range coverage area
• Cloud centralized management and Omada app for ultra convenience and easy management
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
• 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate	1200
Maximum data transfer rate (2.4 GHz)	300
Maximum data transfer rate (5 GHz)	867
Ethernet LAN data rates	10,100,1000
Frequency band	2.4 - 5
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u
MIMO	Y
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Virtual LAN features	VLAN mapping
Rate limiting	Y
Band steering	Y
Airtime Fairness (ATF)	Y
Quality of Service (QoS) support	Y
BeamForming	Y
Transmitting power (CE)	27
Transmitting power (FCC)	22
Security algorithms	802.1x RADIUS
MAC address filtering	Y
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Access Control List (ACL)	Y
Web-based management	Y
Syslog	Y
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	24
Power consumption (typical)	10.5
Placement	Pole,Wall
Product colour	White
International Protection (IP) code	IP65
Reset button	Y
Antenna type	External
Antenna direction type	Omni-directional
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	4
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Compliance certificates	CE,Federal Communications Commission (FCC),RoHS
Width	215
Depth	46
Height	27
Package width	140
Package depth	270
Package height	100
Package weight	640
Quantity per pack	1
AC adapter included	Y
Mounting kit	Y
Quick start guide	Y
Operating relative humidity (H-H)	10 - 90
Operating temperature (T-T)	-30 - 70
Storage temperature (T-T)	-40 - 70
Storage relative humidity (H-H)	5 - 90
Harmonized System (HS) code	85176990
Sustainability compliance	Y
