TP-LINK | SKU:
SM311LS
Sold out

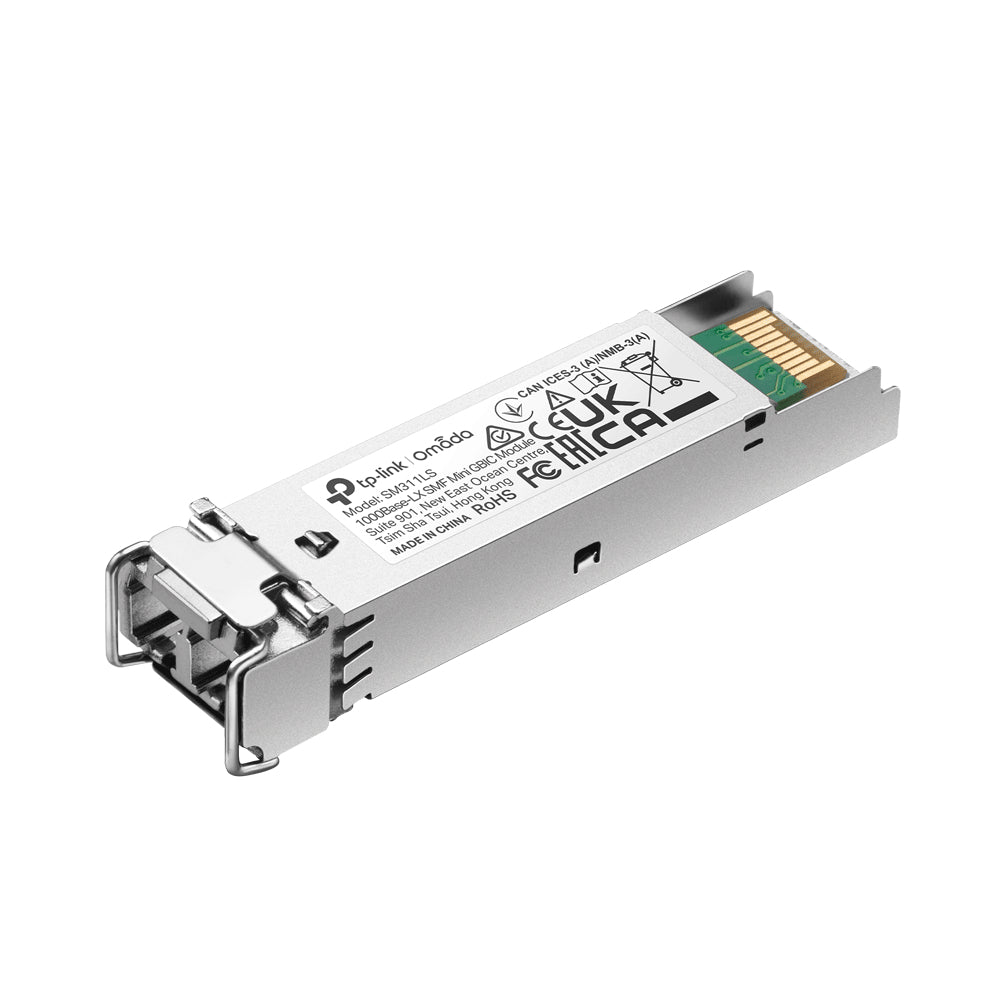

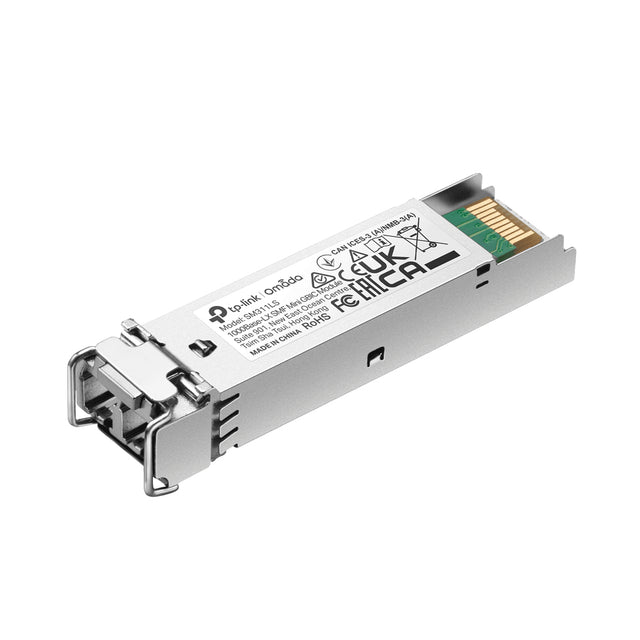

TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance - SM311LS
$27.63
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Care information
Care information
Manufacture Warranty
Delivery and Shipping
Delivery and Shipping
Standard Shipping: 3-5 Business days
Express Shipping: 1-2 Business days
Description
Description
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 |
| Interface type | mini-GBIC |
| Single-mode fiber (SMF) supported | Y |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| SFP transceiver standard | LX |
| Maximum transfer distance | 20000 |
| Wavelength | 1310 |
| Networking standards | IEEE 802.3z |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Product colour | Silver |
| Hot-Plug support | Y |
| Hot-swap | Y |
| Brand compatibility | MSA Compliant |
| Input voltage | 3.3 |
| Compliance certificates | CE,Federal Communications Commission (FCC) |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Width | 55.4 |
| Depth | 14.6 |
| Height | 12.9 |
| Quantity per pack | 1 |
| Manual | Y |
| Package width | 38 |
| Package depth | 207 |
| Package height | 38 |
| Package weight | 110 |
