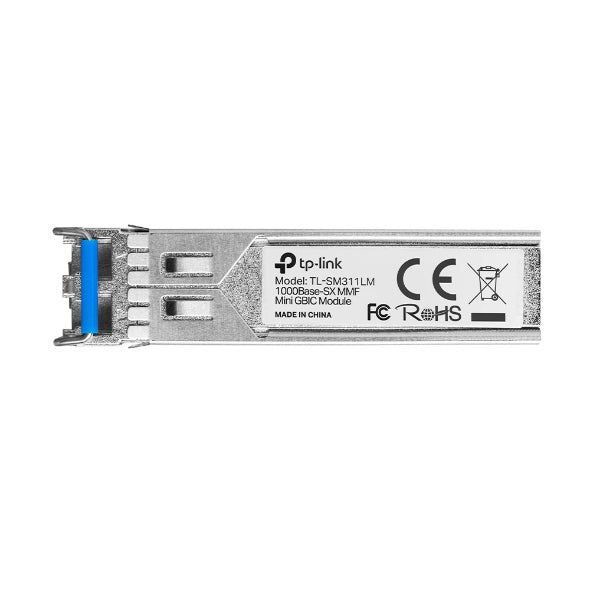

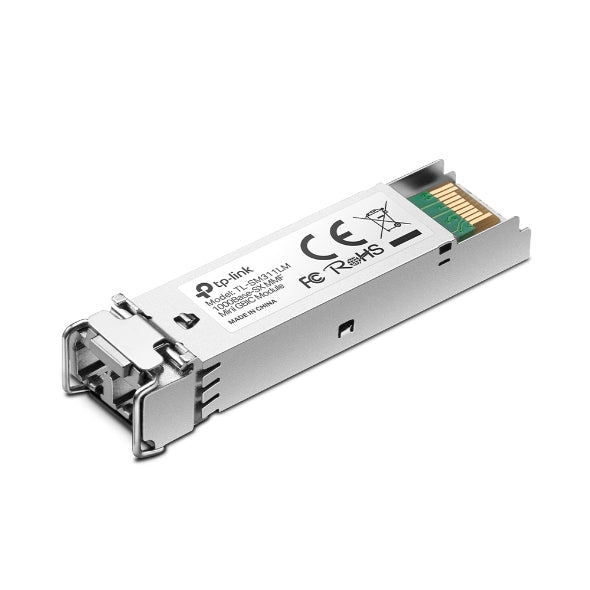

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm - SM311LM

What This Product Does

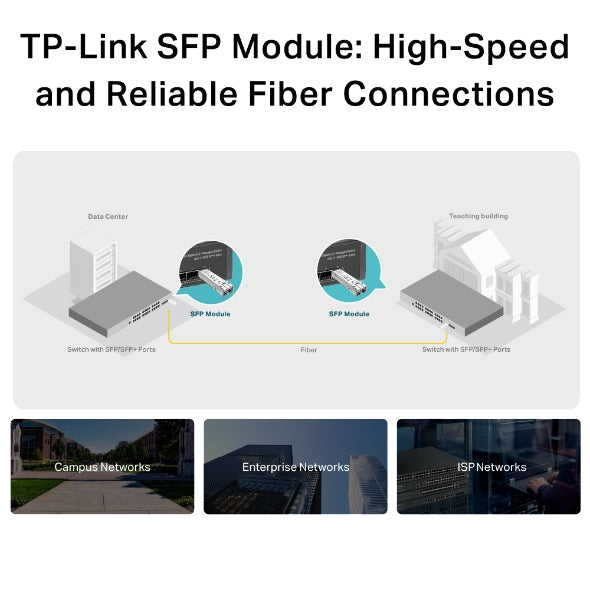

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

• Multi-mode MiniGBIC module

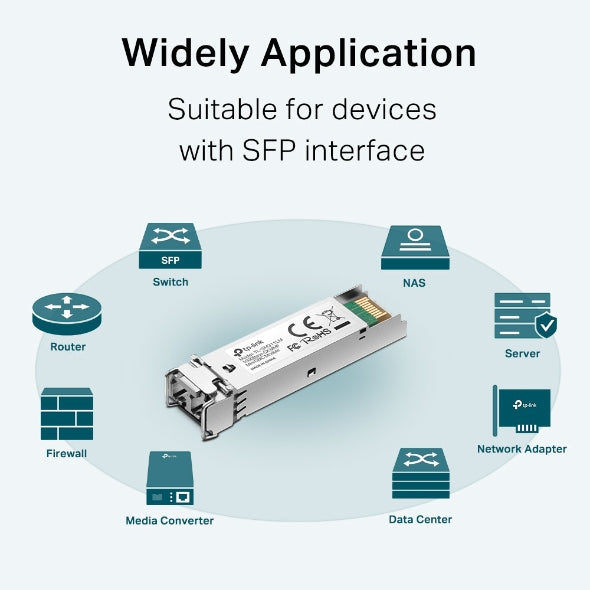

• Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L

SFP transceiver type	Fiber optic
Maximum data transfer rate	1250
Interface type	mini-GBIC/SFP
Single-mode fiber (SMF) supported	N
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	LC (UPC)
Fiber cable diameters supported (core/cladding)	50/125,62.5/125

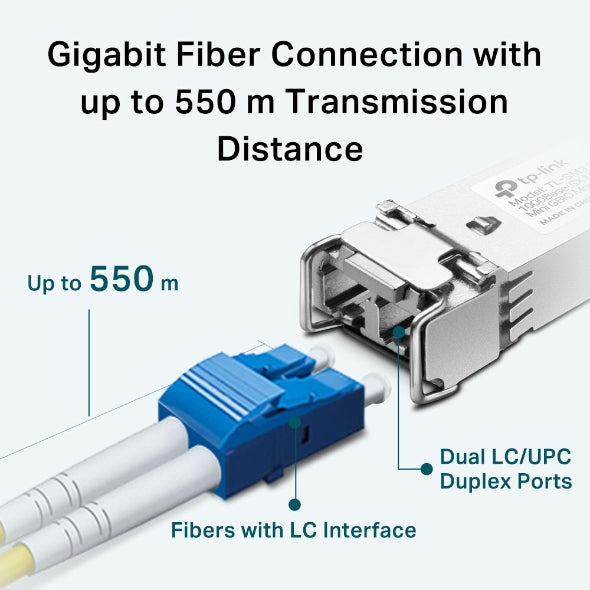

Maximum transfer distance	550
Wavelength	850
Networking standards	IEEE 802.3z
Product colour	Metallic
Input voltage	3.3
Compliance certificates	RoHS
Certification	FCC, CE
Minimum operating temperature	0

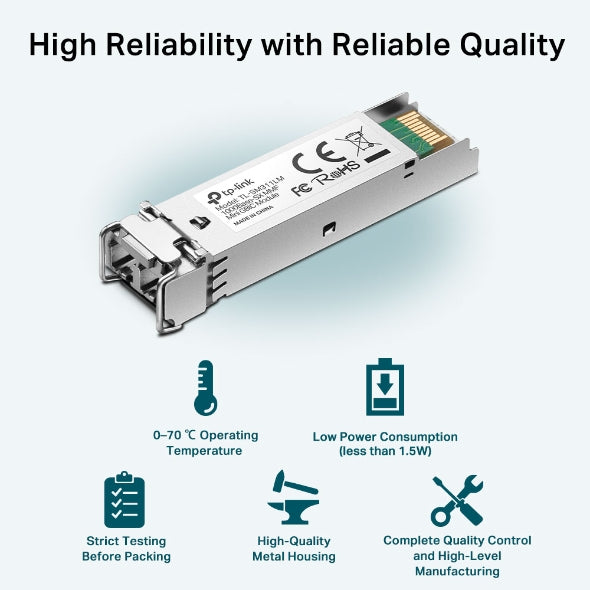

Maximum operating temperature	70
Operating temperature (T-T)	0 - 70
Storage temperature (T-T)	-40 - 80
Operating relative humidity (H-H)	10 - 90
Storage relative humidity (H-H)	5 - 90
Width	55.4
Depth	13.7
Height	12.9
Quantity per pack	1
User guide	Y
Package width	38
Package depth	207
Package height	38
Package weight	110
Harmonized System (HS) code	85369010
