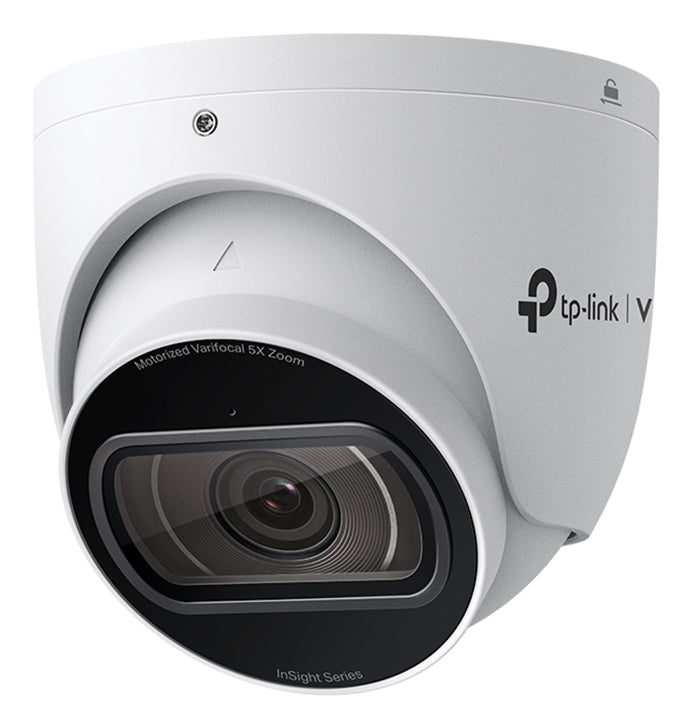

TP-Link VIGI InSight S445ZI Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling - INSIGHT S445ZI

Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

• 5X Optical Zoom for Easy Installation and Monitoring
• 4MP Super-High Definition and IR Range Up to 60m (197ft)
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Remote viewing	Y
Dynamic range	120
Mounting type	Ceiling
Product colour	White
Form factor	Turret
Housing material	Metal
Protection features	Waterproof
International Protection (IP) code	IP67
Weatherproof	Y
Minimum illumination	0
Angle of rotation	360
Lens viewing angle, horizontal	29.6–102
Lens viewing angle, vertical	16.8–53.8
Lens viewing angle, diagonal	34.1–122.8
Tilt angle range	0 - 77
Pan range	0 - 360
Camera shutter speed	1/3 to 1/10000
Number of Privacy masking areas	4
Sensor type	CMOS
Optical sensor size	1/2.9
Progressive scan	Y
Number of lenses	1
Zoom capability	Y
Optical zoom	5
Focal length range	2.7 - 13.5
Auto focus	Y
Focus	Motorized
Maximum aperture number	1.6
Detect distance (wide)	66
Detect distance (tele)	207
Observe distance (wide)	28
Observe distance (tele)	86
Recognize distance (wide)	13
Recognize distance (tele)	41
Identify distance (wide)	7
Identify distance (tele)	21
Night vision	Y
Night vision distance	60
LED type	IR
Number of illumination LEDs	4
Infra-red wavelength	850
Maximum resolution	2688 x 1520
Total megapixels	4
Video compression formats	H.264,H.264+,H.265,H.265+
Supported graphics resolutions	1920 x 1080 (HD 1080),2048 x 1280,2304 x 1296,2560 x 1440,2688 x 1520
Video recording	Y
Video streaming	Y
Noise reduction	Y
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness,Contrast,Mirror,Saturation,Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps
Back Light Compensation (BLC)	Y
Highlight Compensation (HLC)	Y
Digital Wide Dynamic Range (DWDR)	Y
Region of Interest (ROI) encoding	Y
Smart IR	Y
Audio system	2-way
Audio input channels	1.0
Audio output channels	1.0
Audio formats supported	G.711 A-law
Sample rate	8
Signal-to-Noise Ratio (SNR)	52
Built-in microphone	Y
Number of microphones	1
Bit rate range	0 - 64
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Live view	Y
Number of simultaneous live view channels	6
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Alarm input channels	1
Alarm output channels	1
Built-in siren	Y
Password protection	Y
Video motion detection	Y
IP address filtering	Y
HTTPS encryption	Y
Alert notification type	Push notification
Privacy protection	Y
Motion sensor	Y
Mirror	Y
Human and vehicle targets classification	Y
Digest authentication	Y
Cloud-managed	Y
Web browser	Y
Reset button	Y
Power source type	DC,PoE
Power consumption (max)	10.8
Power consumption (Power over Ethernet (PoE))	12
DC output voltage	12
Operating temperature (T-T)	-30 - 60
Storage temperature (T-T)	-40 - 60
Operating relative humidity (H-H)	0 - 95
Storage relative humidity (H-H)	0 - 95
Height	92.5
Diameter	112.3
Weight	710
Package weight	960
Package type	Box
Number of cameras	1
Mounting kit	Y
Screws included	Y
Drilling template included	Y
Manual	Y
