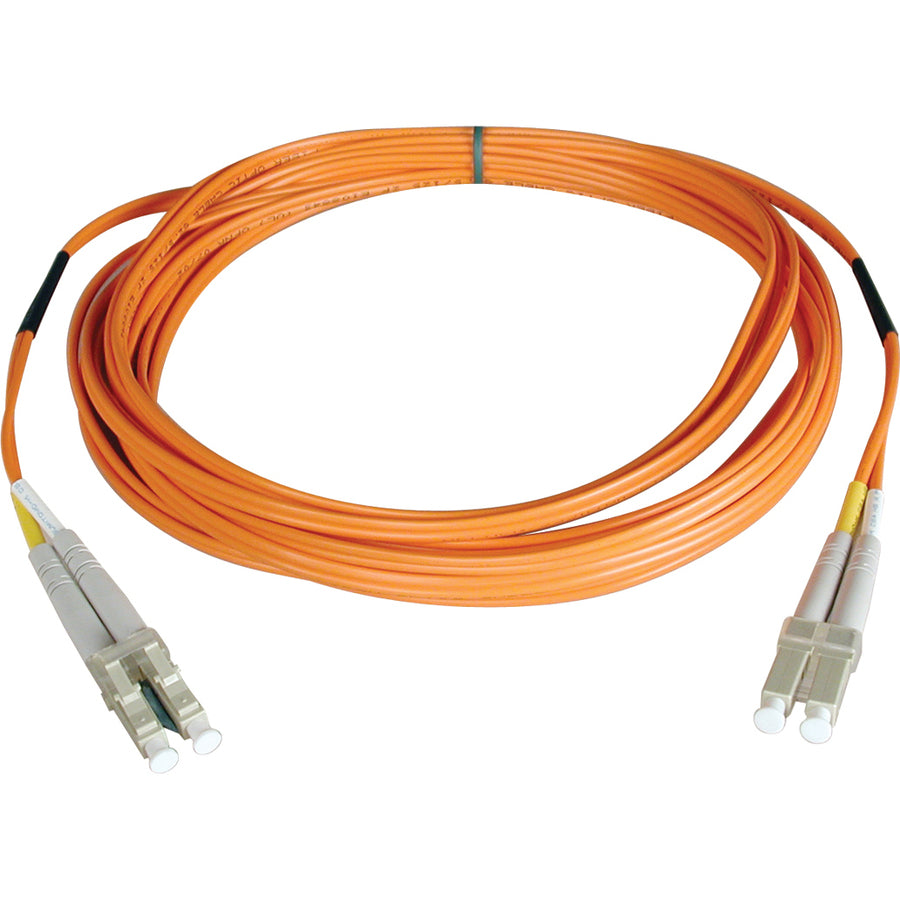

Tripp Lite 20M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 65' 65ft 20 Meter - LC Male - LC Male - 65.62ft - N520-20M

• Use on fiber and fibre channel installations
• Higher bandwidth optimized for gigabit and 10Gbps networks
• Fiber type: all glass graded index
• Core diameter: Two 50+/-3 microns
• CLAD diameter: 125+/-2 microns
• Primary coating diameter: 245+/-15 microns
• Primary coating material: acrylate
• Secondary coating diameter: 900+/-50 microns
• Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
• Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
• Proof test level: 100,000 PSI
• Insertion loss testing performed on every connector (0.2db typical) and provided with cable
• Beveled edge on ends of glass makes insertion of plug a breeze

Perfect for use with Fibre Channel Controller Cards and Switches
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth, optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Premium PVC multimode patch cables
