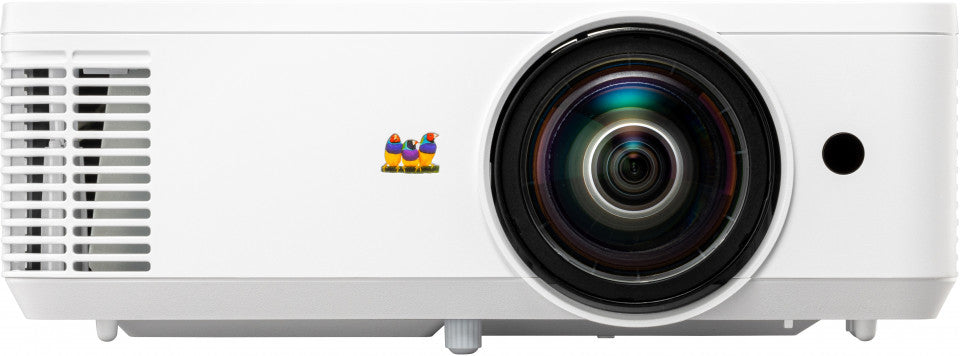

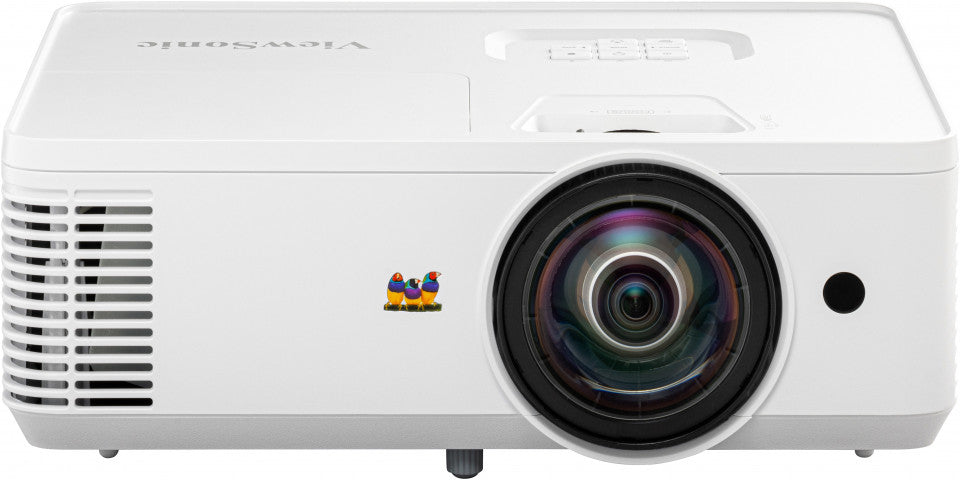

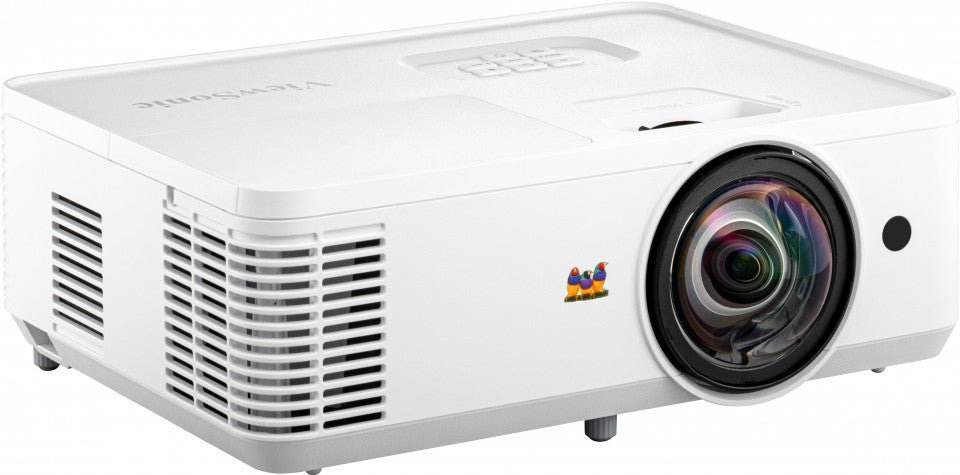

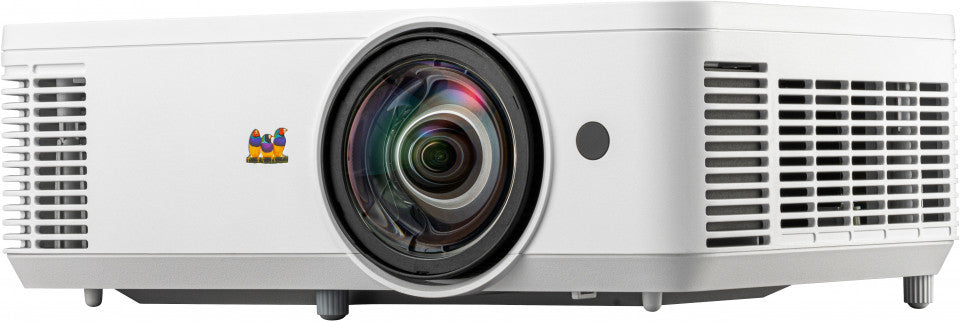

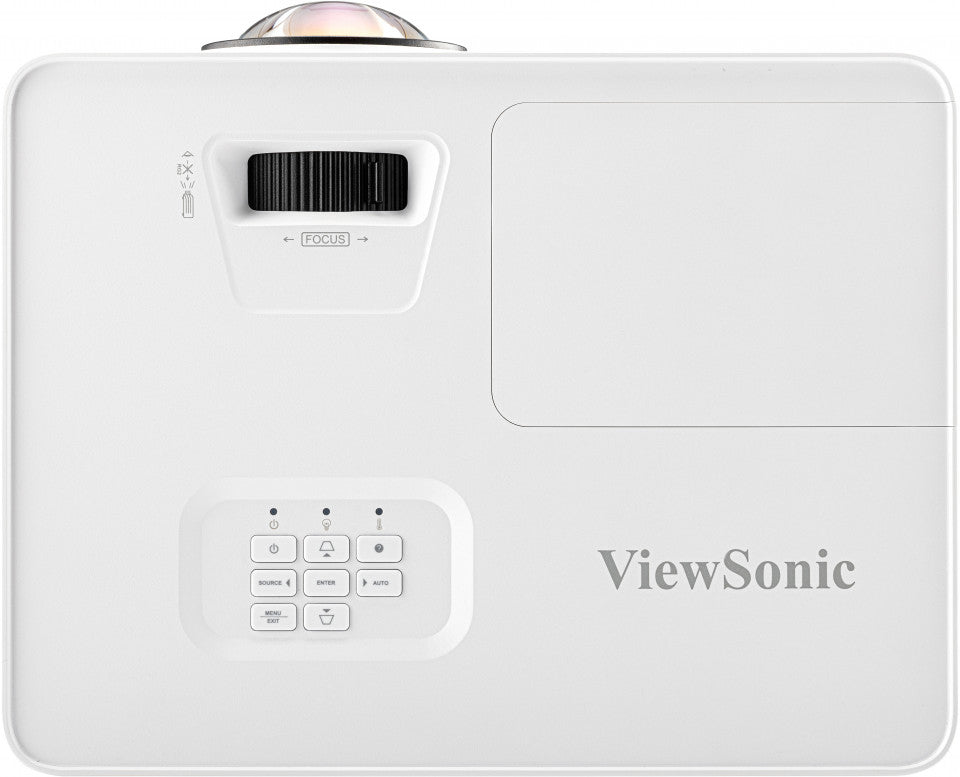

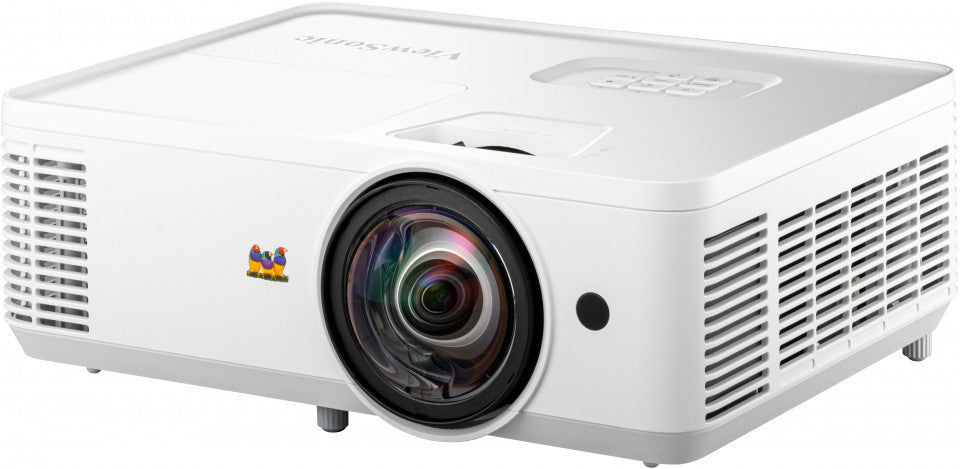

Viewsonic PS502W data projector Short throw projector 4000 ANSI lumens WXGA (1280x800) White - PS502W

The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers. ​

High Brightness for Business & Education Environments​
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.

Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.

Ultra-Large Screen with Lower Cost-per-inch​​
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.

Easy and Flexible Connection​

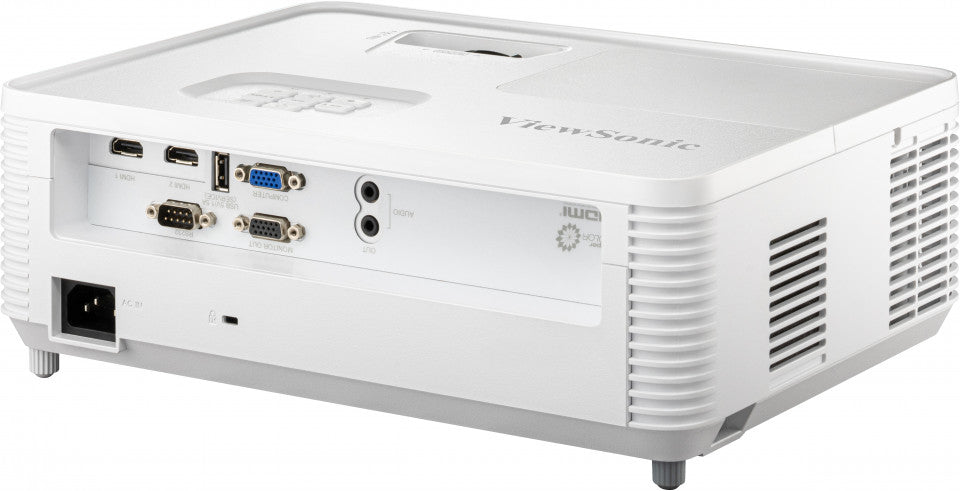

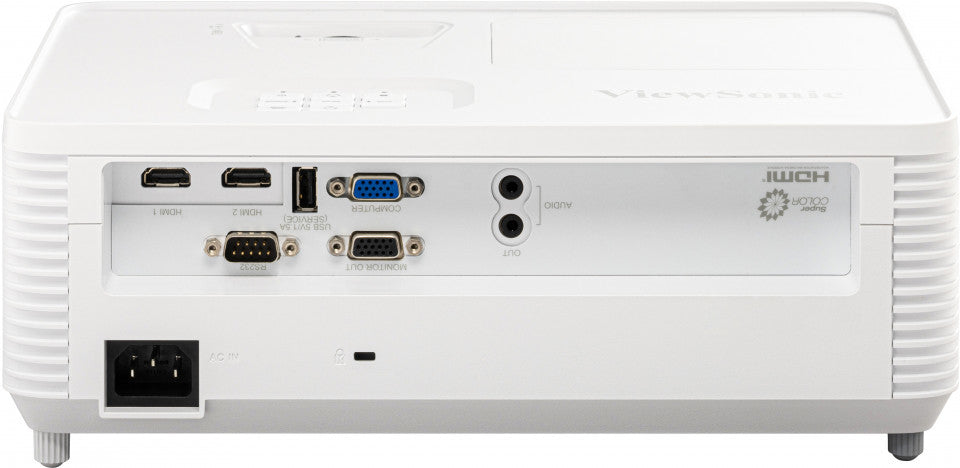

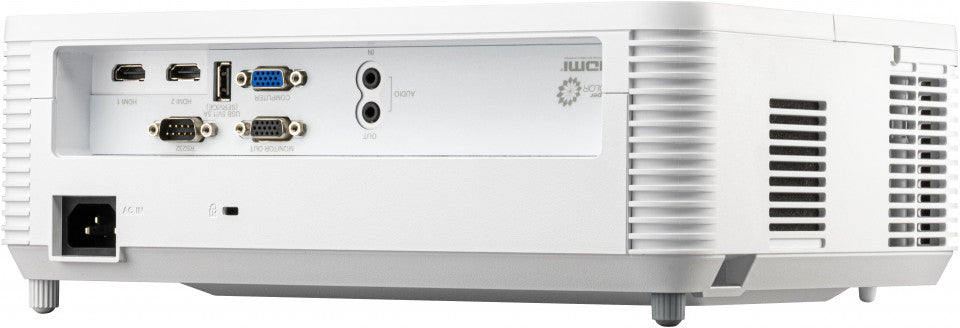

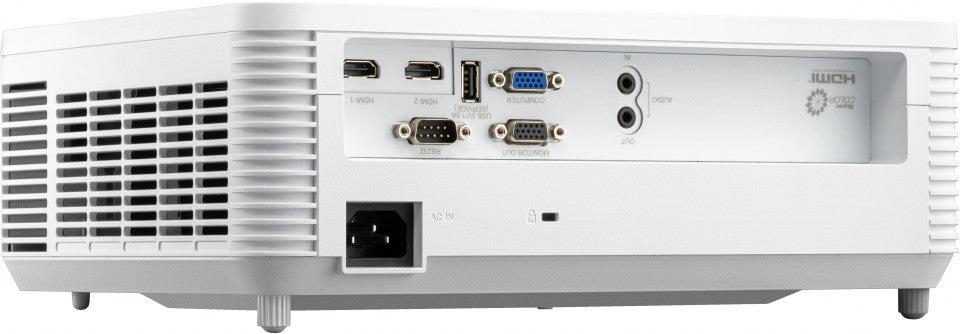

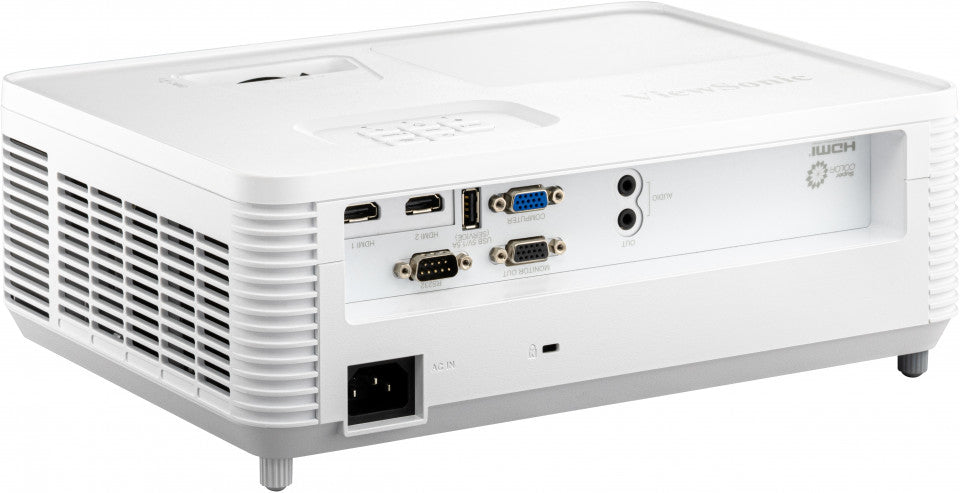

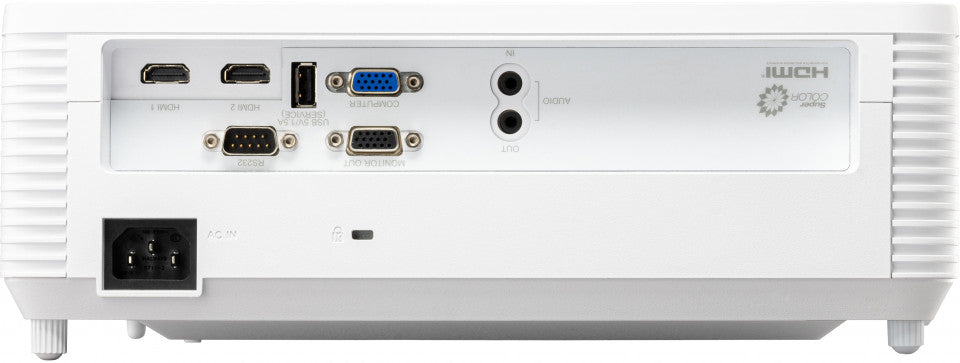

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.​

Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.

A Simpler Way to Update Projector Software​
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.​​​

​​​*The latest projector software update can be found in the download section at the bottom of the page when available.​

USB Type A Power Supply​
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.

Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.

• 4,000 ANSI Lumens offering clear images in any environment​
• 0.52 Short throw ratio for minimal space consumption​
• Up to 300" ultra large screen with lower cost-per-inch​​
• Easy and flexible connection: dual HDMI ports, USB Type-A port​
• Convenient software updates for projectors via USB connection

Projector brightness	4000
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	15000:1
Smart projector	N
Screen size compatibility	60 - 300
Projection distance	0.67 - 3.36
Number of colours	1.07 billion colours
Horizontal scan range	15 - 102
Vertical scan range	23 - 120
Keystone correction, vertical	-19 - 19
Light source type	Lamp
Service life of light source	4000
Service life of light source (economic mode)	12000
Lamp type	UHP
Lamp power	240
Lamps quantity	1
Focus	Manual
Fixed focal length	7.51
F-number (relative aperture)	2.8
Zoom capability	Y
Digital zoom	2
Throw ratio	0.52
Offset	112.4
Analog signal format system	NTSC,PAL,SECAM
Full HD	Y
3D	N
Supported graphics resolutions	640 x 480 (VGA),1920 x 1080 (HD 1080)
Supported video modes	480i,480p,576i,576p,720p,1080i,1080p
VGA (D-Sub) ports quantity	2
HDMI ports quantity	2
Composite video in	0
Component video (YPbPr/YCbCr) in	0
DVI port	N
Audio (L/R) in	0
Serial interface type	RS-232
HDMI connector type	Full-size
HDMI version	1.4
Service port type	USB Type-A
USB 2.0 ports quantity	1
USB 2.0 Type-A ports quantity	1
PC Audio in	Y
PC Audio out	Y
PC in (D-Sub)	Y
AC (power) in	Y
Smart TV	N
Ethernet LAN	N
Wi-Fi	N
Card reader integrated	N
Noise level	34
Interactive	N
Noise level (economic mode)	25
HDCP	Y
On Screen Display (OSD)	Y
On Screen Display (OSD) languages	ARA,CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,GRE,HUN,IND,ITA,KOR,POL,POR,RUS,THA,TUR,VIE
Number of OSD languages	22
HDCP version	1.4
Air filter	Y
Built-in speaker(s)	Y
RMS rated power	16
Product type	Short throw projector
Market positioning	Education
Product colour	White
LED indicators	Y
Cable lock slot	Y
Cable lock slot type	Kensington
Built-in display	N
Power source	AC
Power consumption (typical)	295
Power consumption (standby)	0.5
AC input voltage	100 - 240
AC input frequency	50 - 60
Operating temperature (T-T)	0 - 40
Weight	2900
Width	309
Depth	234
Height	115
Package width	400
Package depth	168
Package height	337
Package weight	4100

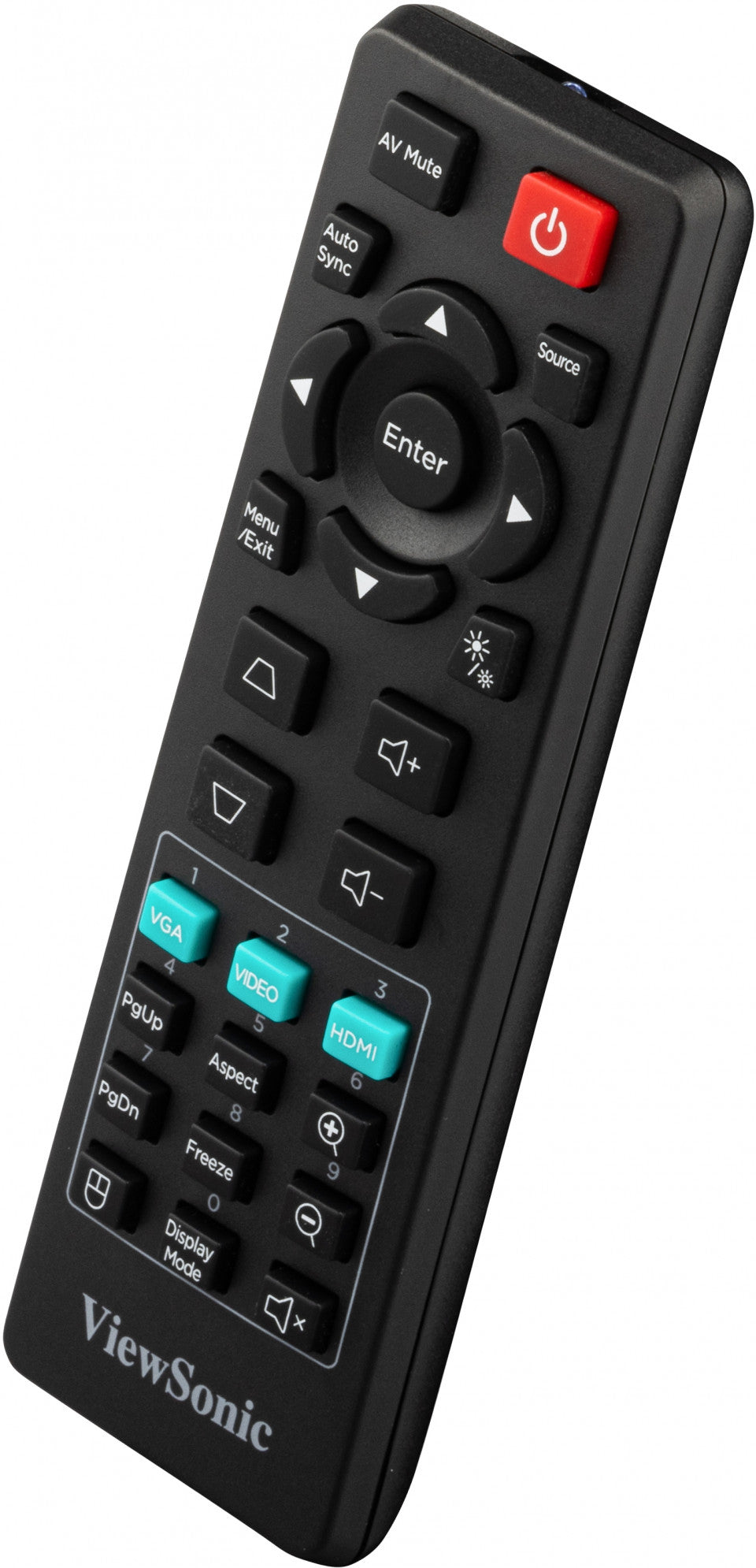

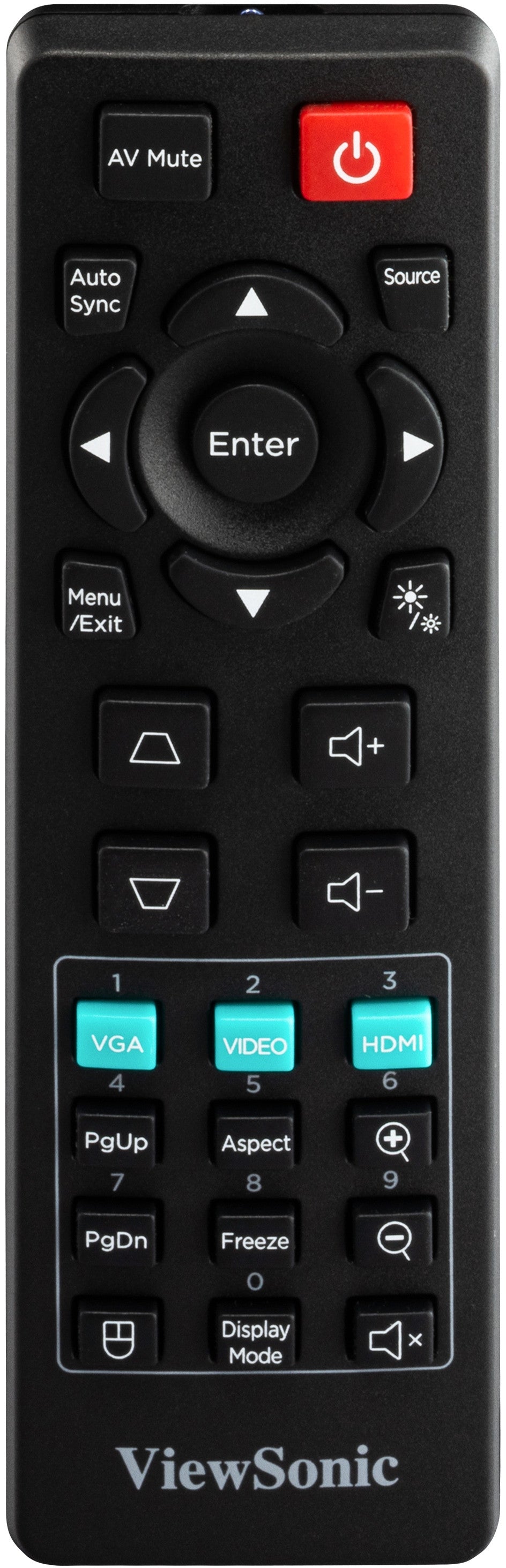

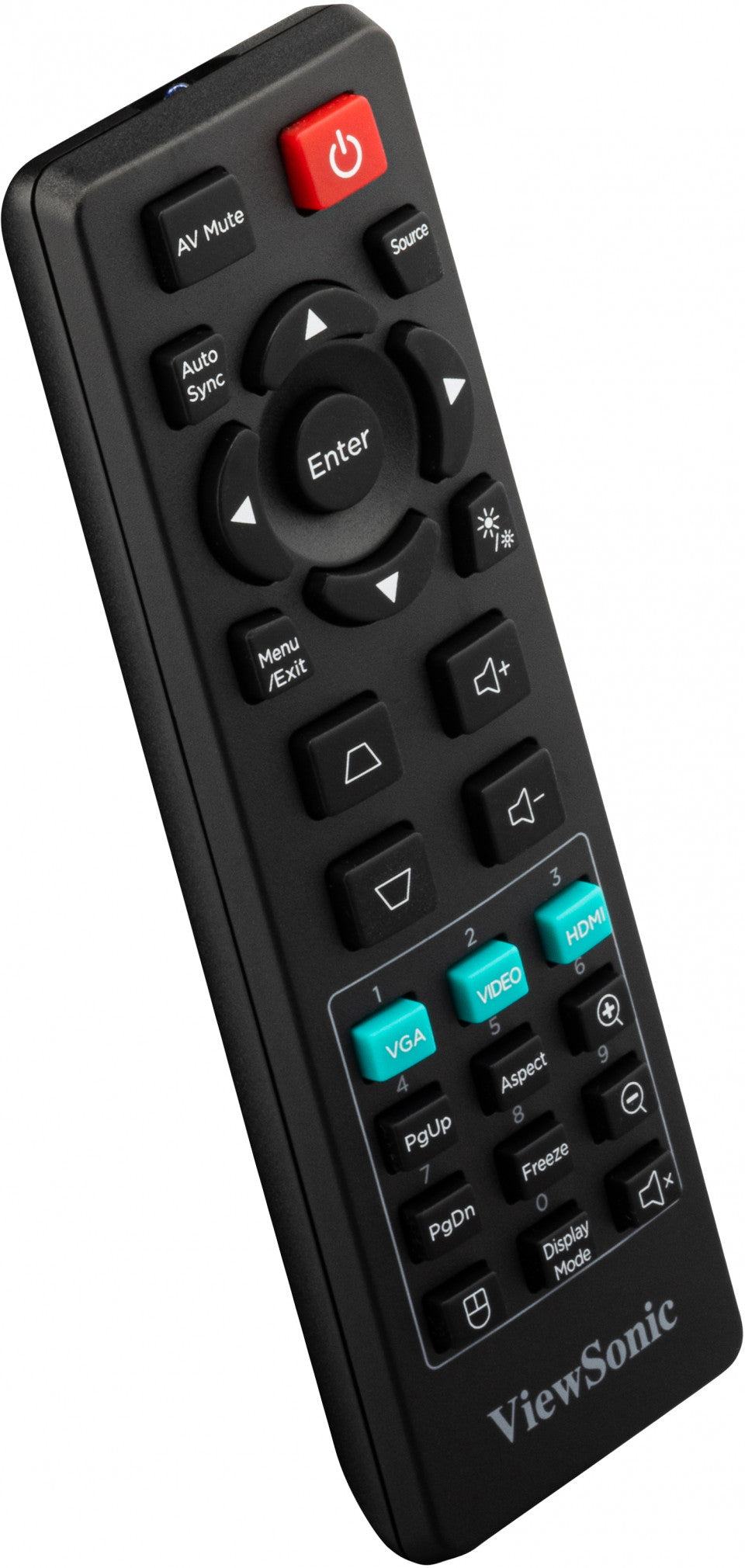

Remote control included	Y
Remote control type	IR
Cables included	AC,VGA
Quick start guide	Y
Warranty card	Y
Pallet gross length	1020
Pallet gross width	1220
Pallet gross height	1815
Products per master (outer) case	1
Harmonized System (HS) code	8528620000
Image lag time	33.2
