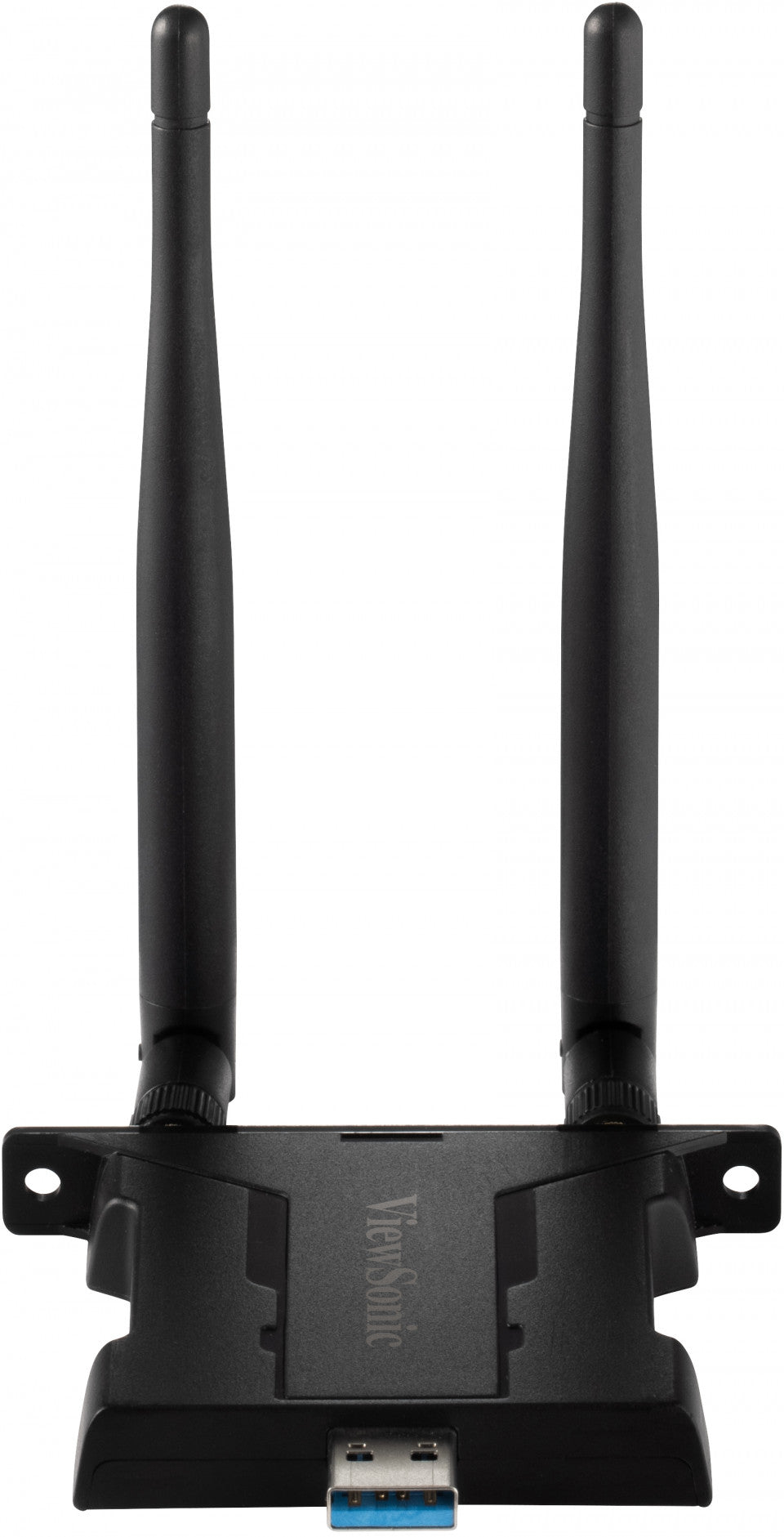

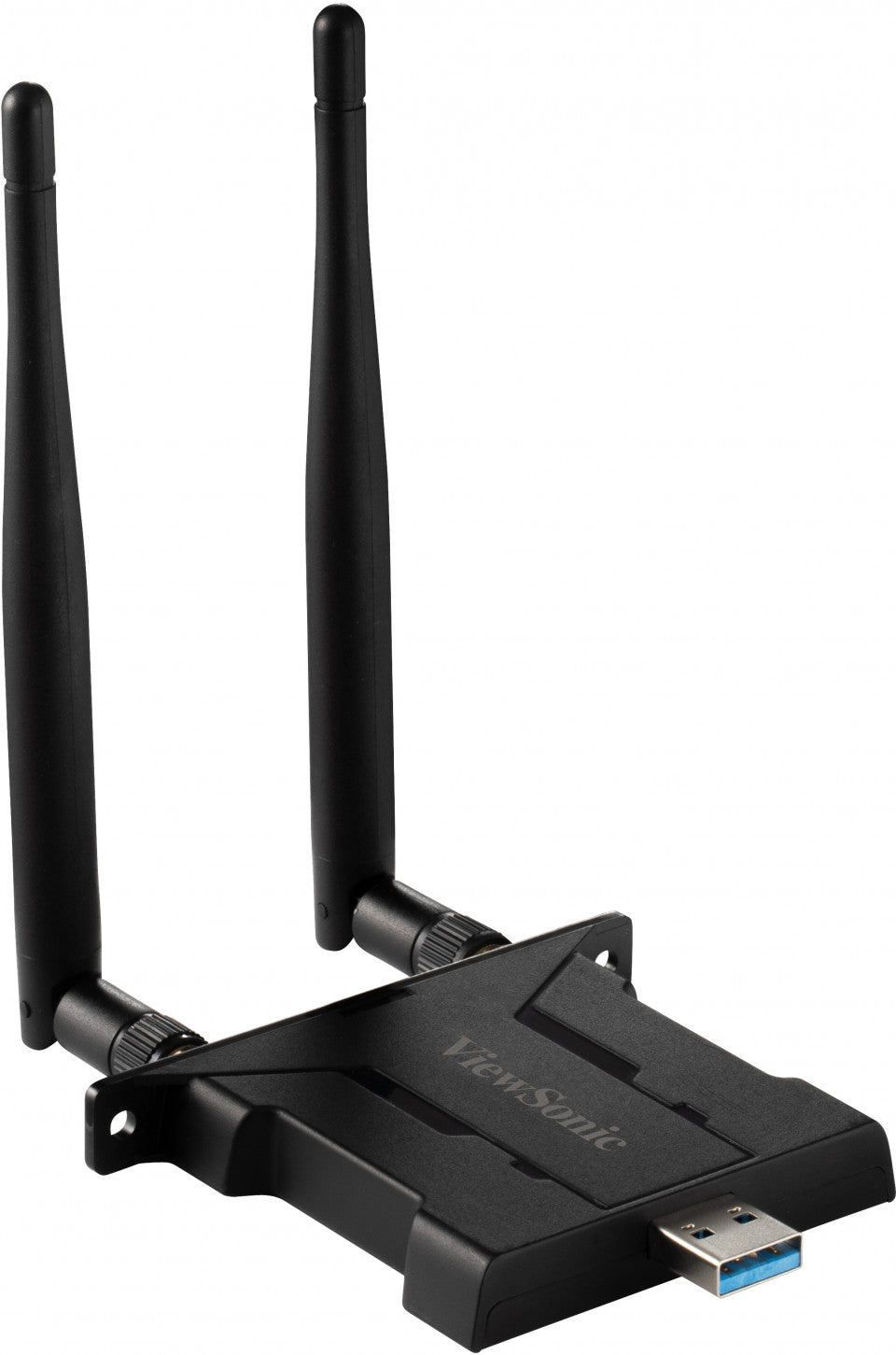

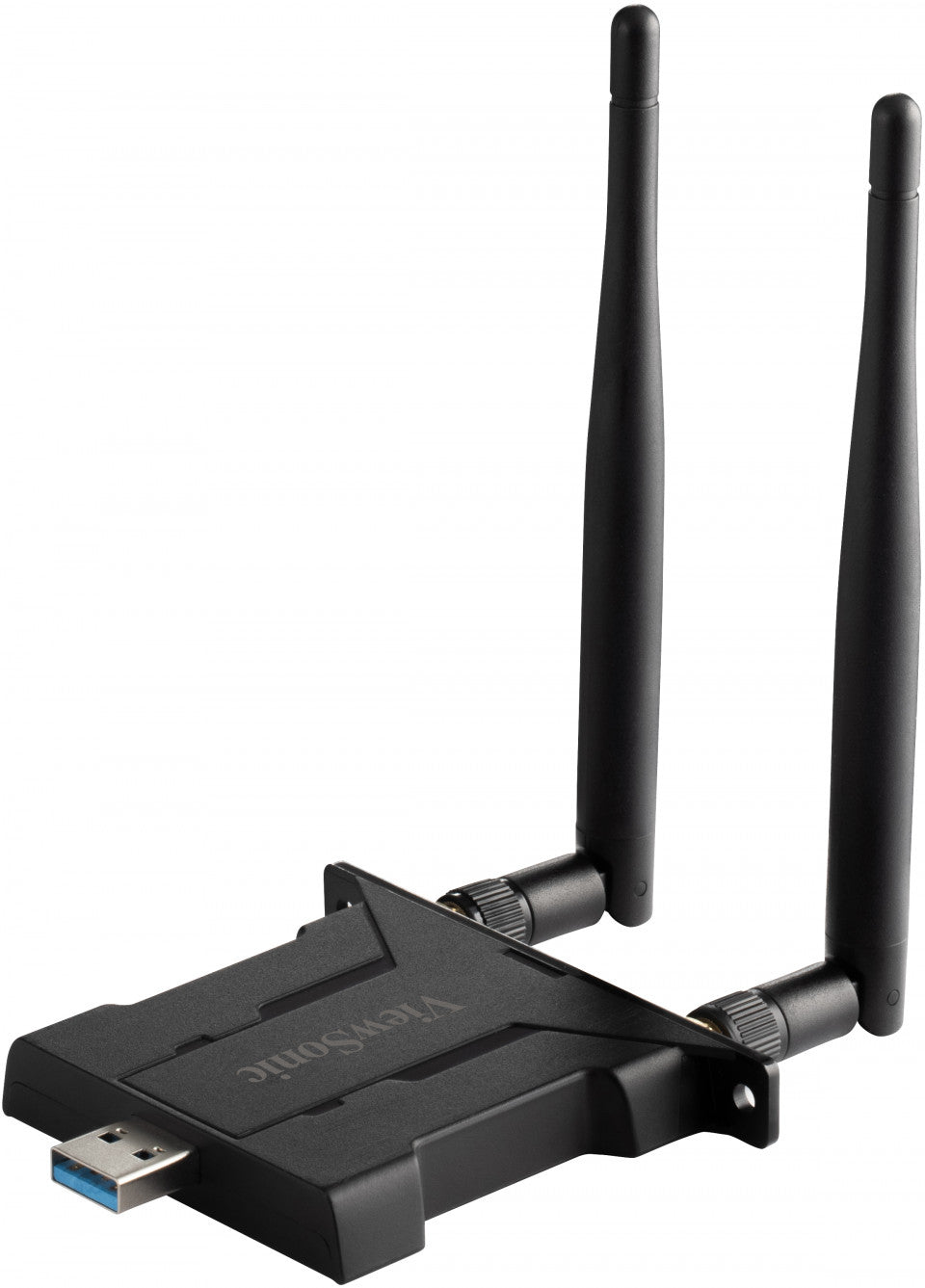

Viewsonic VB-WIFI-005 network card WLAN / Bluetooth - VB-WIFI-005

VB-WIFI-005
ViewSonic Wireless Module for ViewBoard and Presentation Display with Wi-fi 6 connectivity

OVERVIEW
The ViewSonic VB-WIFI-005 wireless module delivers a fast wireless internet connection for ViewBoard and Presentation Display*. It supports dual-frequency 2.4GHz and 5GHz bandwidth, along with Wifi 6 (802.11ax standard). *Compatible with selected models, please check with your local sales representatives.

Faster Connections
An optional Wifi module for the ViewBoards and Presentation Display* to help run lessons smoothly and get a more interactive discussion in the office. Wifi 6 offers faster internet speeds for the ever more bandwidth-demanding applications like video conferences, live streaming, and connected device networks. *Compatible with selected models, please check with your local sales representatives.

Dual Band Wireless Support
Supporting both 2.4 and 5 GHz dual-band wireless transmission helps users adjust settings to their needs. A 2.4 GHz connection travels farther at lower speeds, while 5 GHz frequencies provide faster speeds at a shorter range. Smoothly streams multimedia content such as videos and images without any delays.

• Wireless
• USB 3.2 Gen 1 (3.1 Gen 1) WLAN / Bluetooth
• Wi-Fi Dual-band (2.4 GHz / 5 GHz) Bluetooth 5.2
• Component for: PC

Connectivity technology	Wireless
Host interface	USB
Interface	WLAN / Bluetooth
USB connector form factor	Straight
USB version	3.2 Gen 1 (3.1 Gen 1)
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Wi-Fi	Y
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.2
Internal	N
Component for	PC
Product colour	Black
Antenna	Y
Antenna design	Internal
Antenna type	2x2
Plug and Play	Y
Certification	FCC, FCC ID, IC, IC ID, NCC
Output voltage	5
Power consumption (typical)	4.5
USB powered	Y
Operating temperature (T-T)	0 - 40
Operating relative humidity (H-H)	10 - 90
Width	99
Depth	11
Height	77
Weight	30
Package width	90
Package depth	16
Package height	157
Package weight	80
Compliance certificates	CE,REACH,RoHS,WEEE
