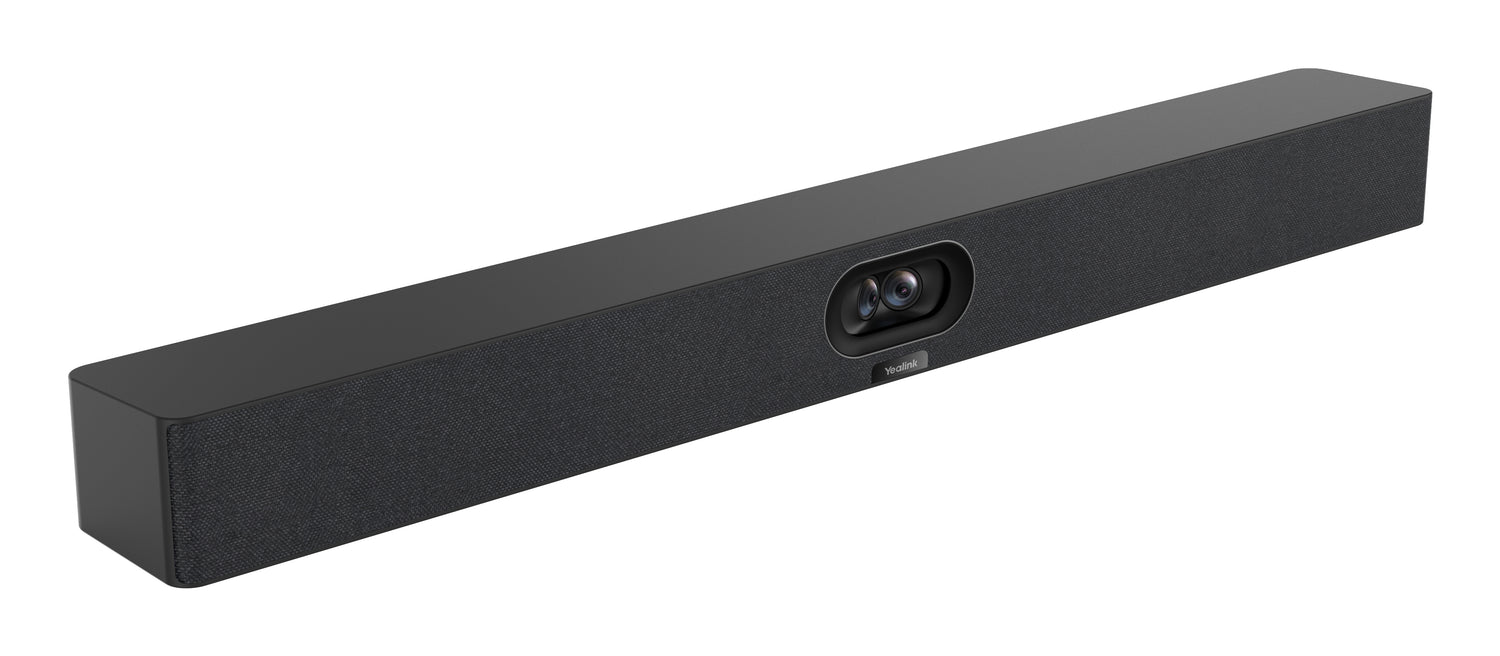

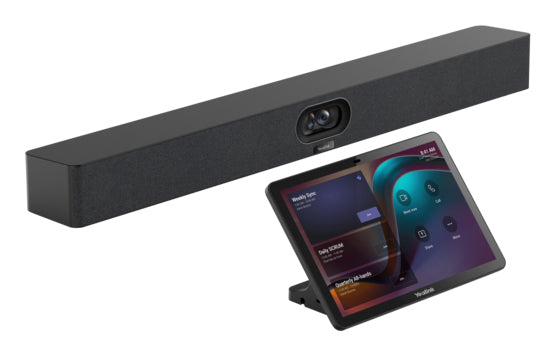

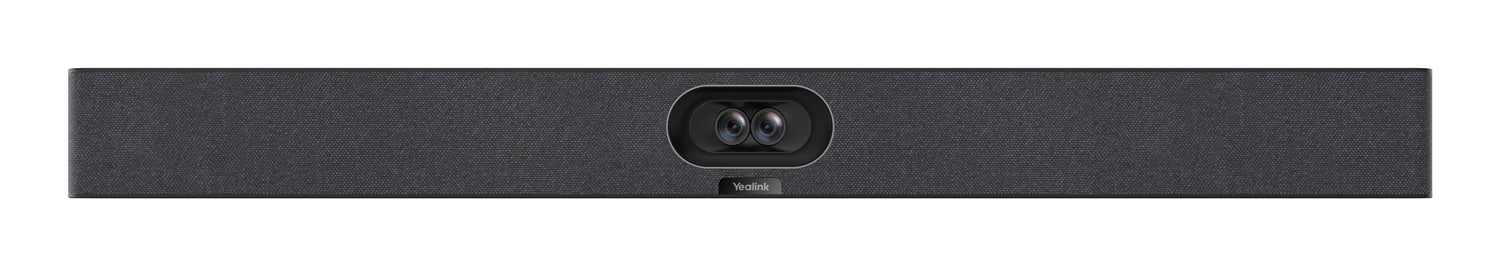

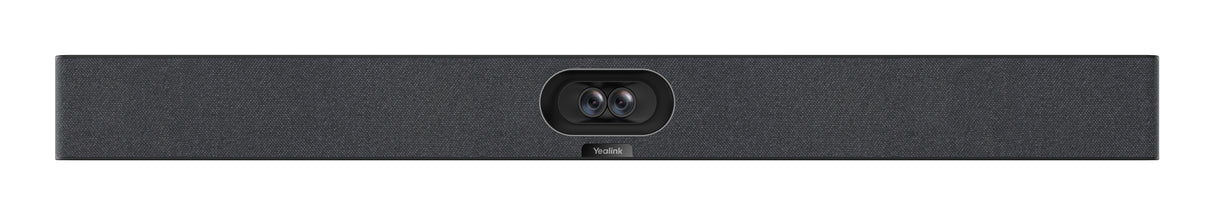

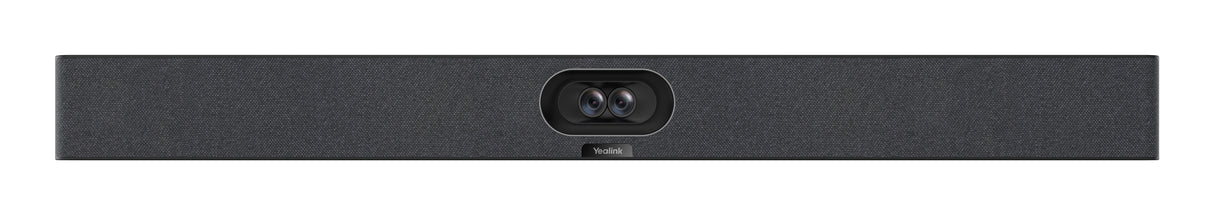

Yealink MeetingBar A40-031 - 1206676

MeetingBar A40 is a next-generation all-in-one video bar that leverages industry-leading AI to enhance video and audio experience in daily hybrid meetings. It offers easy deployment and use, making it ideal for premium small and medium-sized meeting rooms. The One Cable Solution maximizes simplicity in two ways. A single Cat5e cable from the bar provides power and network connectivity to the touch console, automatically synchronizing the Teams account. Additionally, a single USB-C cable on the desk enables 4K sharing, General Mode, and PD charging.

• Simple deployment: plug-and-play, One Cable Solution for console deployment and sharing
• Be seen clearly: Dual-eye camera system with 2x 48MP cam and 120° FOV, Fast and precise camera AI such as IntelliFocus, Video Fence
• Hear and be heard: 8 MEMS mic array, 2x stereo speakers,8m full duplex audio with AI-Enhanced Noise Cancellation and Reverberation Suppression
• Security ensured: support latest Android 13 and beyond, MDEP coming
• Standard PD power supply for PC
• Teams/Zoom certified, BYOD enabled

Product type	Group video conferencing system
Product colour	Black
Bluetooth	Y
Bluetooth version	5.0
Signal-to-Noise Ratio (SNR)	63
HD type	4K Ultra HD
Maximum video resolution	3840 x 2160
Total megapixels	48
Supported video modes	1080p,2160p
Supported graphics resolutions	1920 x 1080 (HD 1080),3840 x 2160
Maximum frame rate	60
Aspect ratio	16:9
Built-in speaker(s)	Y
Number of speakers	2
Frequency range	80 - 18000
RMS rated power	20
HDMI ports quantity	2
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
Line-in	Y
Line-out	Y
Ethernet LAN	Y
Wi-Fi	Y
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Megapixel (approx.)	48
Camera type	Dual camera
Zoom capability	Y
Digital zoom	6
Horizontal field of view	110
Vertical field of view	54
Diagonal field of view	120
Focus adjustment	Auto
Number of camera presets	9
Aperture range (F-F)	2.2 - 2.4
Minimum illumination	0.1
Camera shutter speed	0.01 - 0.033
Display	IPS
Display diagonal	10.1
Display resolution	1280 x 800
Contrast ratio (typical)	1000:1
Touchscreen	Y
Touchscreen type	Capacitive
Viewing angle, horizontal	178
Viewing angle, vertical	178
Display brightness	3520
Anti-glare screen	Y
Microphone sensitivity	-38
Microphone frequency	100 - 20000
Sound pressure level (max)	130
Number of microphone arrays	8
Country of origin	China
Operating temperature (T-T)	0 - 40
Operating relative humidity (H-H)	10 - 95
Width	650
Depth	62
Height	80
Weight	6570
Package width	198
Package depth	406
Package height	758
Package weight	7380
Quick start guide	Y
